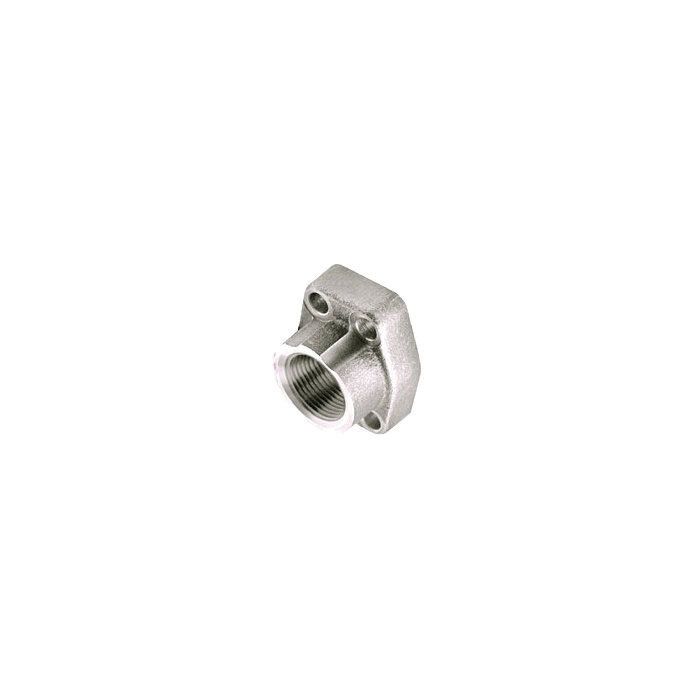

Steel 4-Bolt Flange Adapter, 1.50 Inch Code 61 Flange, O-Ring Half To 1.50 Inch Female NPT, Straight with Counterbore

Ask A Question

Description & Features

The Steel 4-Bolt Flange Adapter 1.50 Inch Code 61 Flange O-Ring Half To 1.50 Inch Female NPT Straight with Counterbore is designed for high-performance industrial applications. This versatile adapter by Anchor Fluid Power ensures a secure connection between a 1.50 inch Code 61 flange and a 1.50 inch female NPT.

Manufactured from high-grade steel this adapter offers robust durability and reliability in demanding environments. The package includes mounting bolts lock washers and a Buna-N O-Ring for easy installation and enhanced sealing capabilities.

Featuring a 1-1/2-11-1/2 thread this flange adapter provides precise alignment and secure fitting. The straight design with a counterbore enhances the performance and ease of use. Ensure a dependable leak-proof connection with this well-engineered product.

MPN: W43-24-24U

Supplier Part Number: W43-24-24U

Specifications

Brand
ANCHOR FLUID POWER
a Dimensions
3-1/4 in
b Dimensions
3.69 in
c Dimensions
1.406 in
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Flanged, NPT
Connection Type 1
SAE Code 61 O-ring Flange
Connection Type 2
NPTF
d Dimensions
2-3/4 in
Dimensions
3.66 in H x 3.07 in W x 1.77 in D
f Dimensions
1.09 in
Fitting Type
Flange
Flange Size
0.98 in THK
h Dimensions
1-1/2 in
k Dimensions
0.531 in
Material
Steel
Material Construction
Carbon Steel
Number of Bolt Holes
4
Series
W Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/2-11-1/2

Similar Products

Model Number Includes Pipe Size Pad Size a Dimensions b Dimensions c Dimensions d Dimensions E f Dimensions Thread Size h Dimensions K Price Action
Steel 4-Bolt Flange Adapter, 0.75 Inch Code 61 Flange, O-Ring Half To 0.75 Inch Female NPT, Straight with Counterbore

W43-12-12U Steel Code 61 To Female NPT Adapter

Mounting bolts, lock washers and Buna-N O-Ring

0.75

0.75

2.06 in

3.688 in

7/8 in

1-7/8 in

1.25

0.84 in

3/4-14

3/4 in

0.406

Steel 4-Bolt Flange Adapter, 1.00 Inch Code 61 Flange, O-Ring Half To 1.00 Inch Female NPT, Straight with Counterbore

W43-16-16U Steel Code 61 To Female NPT Adapter

Mounting bolts, lock washers and Buna-N O-Ring

1

1

2.31 in

2-3/4 in

1.031 in

2.062 in

1.38

0.97 in

1-11-1/2

1 in

0.406

Steel 4-Bolt Flange Adapter, 1.25 Inch Code 61 Flange, O-Ring Half To 1.25 Inch Female NPT, Straight with Counterbore

W43-20-20U Steel Code 61 To Female NPT Adapter

Mounting bolts, lock washers and Buna-N O-Ring

1.25

1.25

2.88 in

3.12 in

1.188 in

2.312 in

1.5

1.03 in

1-1/4-11-1/2

1-1/4 in

0.469

Steel 4-Bolt Flange Adapter, 2.00 Inch Code 61 Flange, O-Ring Half To 2.00 Inch Female NPT, Straight with Counterbore

W43-32-32U Steel Code 61 To Female NPT Adapter

Mounting bolts, lock washers and Buna-N O-Ring

2

2

3.81 in

4 in

1.688 in

3.062 in

1.62

1.09 in

2-11-1/2

2 in

0.531

Product Questions & Answers (1)

Question by: Tony M on Sep 5, 2025, 9:02 PM
Will this flange adapter hold up in a hydraulic system running at high pressure all day long?
Answer by: Customer Support on Sep 7, 2025, 7:51 PM
Constructed from high-grade steel, this adapter is designed to offer robust durability for demanding industrial environments.
