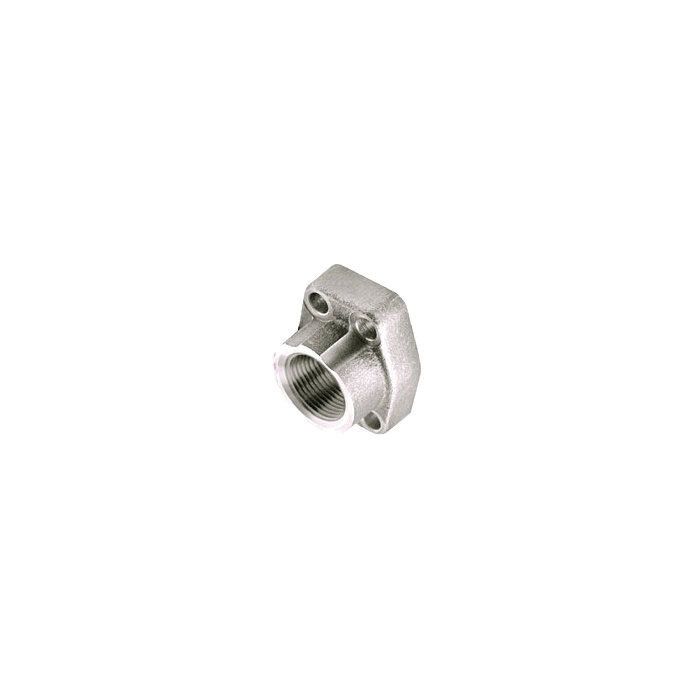

Steel 4-Bolt Flange Adapter, 2.00 Inch Code 61 Flange, O-Ring Half To 2.00 Inch Female NPT, Straight with Counterbore

Ask A Question

Description & Features

The Steel 4-Bolt Flange Adapter 2.00 Inch Code 61 Flange O-Ring Half To 2.00 Inch Female NPT Straight with Counterbore is designed for robust industrial applications. This adapter facilitates fluid connection and offers secure sealing with an attached Buna-N O-Ring.

Manufactured by Anchor Fluid Power this product includes essential hardware such as mounting bolts and lock washers ensuring a complete installation. The 2-inch pad size and counterbore design enhance the functionality by providing optimal fit and alignment.

The adapter features a 2-11-1/2 thread size and is suitable for operations requiring precision and reliability. No thread sealant is required simplifying maintenance and ensuring long-term performance.

MPN: W43-32-32U

Supplier Part Number: W43-32-32U

Specifications

Brand
ANCHOR FLUID POWER
a Dimensions
3.81 in
b Dimensions
4 in
c Dimensions
1.688 in
Connection Size 1
2 in
Connection Size 2
2 in
Connection Type
Flanged, NPT
Connection Type 1
SAE Code 61 O-ring Flange
Connection Type 2
NPTF
d Dimensions
3.062 in
Dimensions
4 in H x 3.54 in W x 1.77 in D
f Dimensions
1.09 in
Fitting Type
Flange
Flange Size
0.98 in THK
h Dimensions
2 in
k Dimensions
0.531 in
Material
Steel
Material Construction
Carbon Steel
Number of Bolt Holes
4
Series
W Series
Thread Sealant
Without Thread Sealant
Thread Size
2-11-1/2

Similar Products

Model Number Includes Pipe Size Pad Size a Dimensions b Dimensions c Dimensions d Dimensions E f Dimensions Thread Size h Dimensions K Price Action
Steel 4-Bolt Flange Adapter, 0.75 Inch Code 61 Flange, O-Ring Half To 0.75 Inch Female NPT, Straight with Counterbore

W43-12-12U Steel Code 61 To Female NPT Adapter

Mounting bolts, lock washers and Buna-N O-Ring

0.75

0.75

2.06 in

3.688 in

7/8 in

1-7/8 in

1.25

0.84 in

3/4-14

3/4 in

0.406

Steel 4-Bolt Flange Adapter, 1.50 Inch Code 61 Flange, O-Ring Half To 1.50 Inch Female NPT, Straight with Counterbore

W43-24-24U Steel Code 61 To Female NPT Adapter

Mounting bolts, lock washers and Buna-N O-Ring

1.5

1.5

3-1/4 in

3.69 in

1.406 in

2-3/4 in

1.62

1.09 in

1-1/2-11-1/2

1-1/2 in

0.531

Steel 4-Bolt Flange Adapter, 1.00 Inch Code 61 Flange, O-Ring Half To 1.00 Inch Female NPT, Straight with Counterbore

W43-16-16U Steel Code 61 To Female NPT Adapter

Mounting bolts, lock washers and Buna-N O-Ring

1

1

2.31 in

2-3/4 in

1.031 in

2.062 in

1.38

0.97 in

1-11-1/2

1 in

0.406

Steel 4-Bolt Flange Adapter, 1.25 Inch Code 61 Flange, O-Ring Half To 1.25 Inch Female NPT, Straight with Counterbore

W43-20-20U Steel Code 61 To Female NPT Adapter

Mounting bolts, lock washers and Buna-N O-Ring

1.25

1.25

2.88 in

3.12 in

1.188 in

2.312 in

1.5

1.03 in

1-1/4-11-1/2

1-1/4 in

0.469

Product Questions & Answers (1)

Question by: Shawn H on Apr 13, 2025, 9:43 PM
Does this thing come with everything you need to bolt it up, or do you have to track down hardware separate?
Answer by: Customer Support on Apr 15, 2025, 6:38 AM
Hardware is included. Each adapter ships with mounting bolts, lock washers, and a Buna-N O-Ring, so you are not scrambling around for fasteners before you can get it installed.
