Steel 4-Bolt Flange Adapter, Inch Code 61 Flange, O-Ring Half To Inch Female NPT, Straight with Counterbore

Description & Features

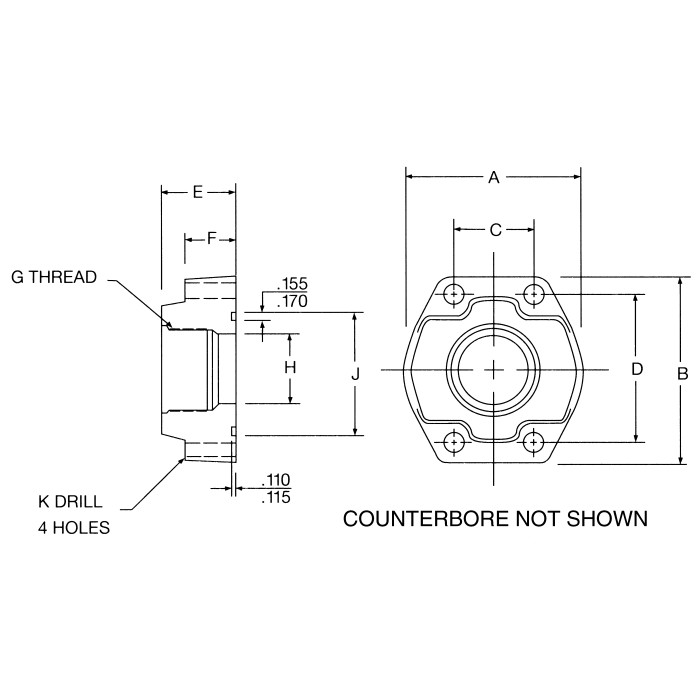

Model Number	Includes	Pipe Size	Pad Size	a Dimensions	b Dimensions	c Dimensions	d Dimensions	E	f Dimensions	Thread Size	h Dimensions	K
W43-12-12U Steel Code 61 To Female NPT Adapter	Mounting bolts, lock washers and Buna-N O-Ring	0.75	0.75	2.06 in	3.688 in	7/8 in	1-7/8 in	1.25	0.84 in	3/4-14	3/4 in	0.406
W43-24-24U Steel Code 61 To Female NPT Adapter	Mounting bolts, lock washers and Buna-N O-Ring	1.5	1.5	3-1/4 in	3.69 in	1.406 in	2-3/4 in	1.62	1.09 in	1-1/2-11-1/2	1-1/2 in	0.531
W43-16-16U Steel Code 61 To Female NPT Adapter	Mounting bolts, lock washers and Buna-N O-Ring	1	1	2.31 in	2-3/4 in	1.031 in	2.062 in	1.38	0.97 in	1-11-1/2	1 in	0.406
W43-20-20U Steel Code 61 To Female NPT Adapter	Mounting bolts, lock washers and Buna-N O-Ring	1.25	1.25	2.88 in	3.12 in	1.188 in	2.312 in	1.5	1.03 in	1-1/4-11-1/2	1-1/4 in	0.469
W43-32-32U Steel Code 61 To Female NPT Adapter	Mounting bolts, lock washers and Buna-N O-Ring	2	2	3.81 in	4 in	1.688 in	3.062 in	1.62	1.09 in	2-11-1/2	2 in	0.531
