Steel 4-Bolt Flange Adapter, Inch Code 61 Flange, O-Ring Half To Inch Male JIC 37 deg Flare, Straight
Description & Features
Products
| Model Number | Includes | Pad Size | Thread 1 | Dimensions | Price | Action |
|---|---|---|---|---|---|---|
W300-8-8U Steel Code 61 To Male JIC Adapter |
Mounting bolts, lock washers and Buna-N O-Ring |
0.5 |
3/4-16 |

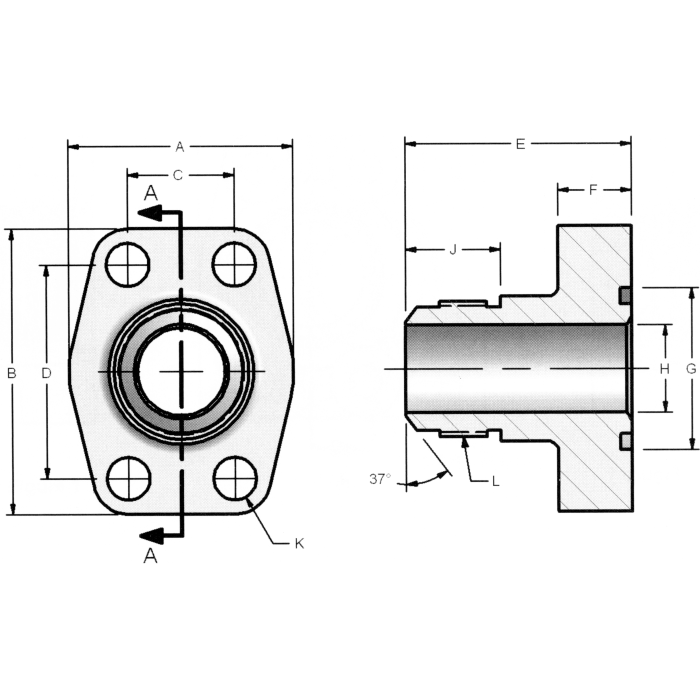

A=1.81 B=2.12 C=0.688 D=1.50 E=1.75 F=0.63 G=1.00 H=0.394 J=0.657 K=0.344 |
|
Product Questions & Answers (1)
Question by: Howard H on Aug 22, 2025, 10:06 AM
I'm looking to hook up a flange to a JIC fitting. Will this adapter do the trick?
Answer by: Customer Support on Aug 23, 2025, 11:20 AM
This steel adapter is designed to connect an inch Code 61 flange O-ring half to an inch male JIC 37-degree flare using a straight configuration. It should work perfectly for your needs.
