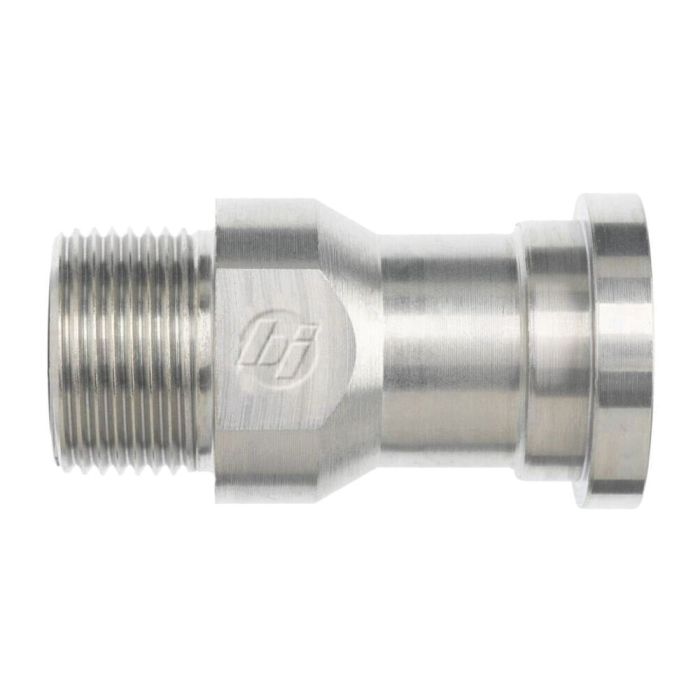

main product photo

Steel Adapter, 1.00 Inch Code 61 Split Flange To 1-7/16-12 Male O-Ring Face Seal, Straight

Ask A Question

Description & Features

The precision-engineered adapter serves as a reliable connection in industrial settings linking a 1.00 inch Code 61 split flange to a 1-7/16-12 male O-ring face seal. Manufactured by Brennan Industries Inc. this adapter ensures consistent performance and durability under high-pressure conditions.

Designed to fit into SAE split flange to O-ring face seal adapters this component features a robust steel construction that meets rigorous standards. The thread size of 1-7/16-12 and the corresponding flange size ensure a secure and leak-free fit.

Ideal for applications requiring a straightforward and effective joining solution this adapter is devoid of thread sealant which allows for cleaner and more efficient installations. The steel adapter is suitable for a range of hydraulic applications ensuring reliability and strength in diverse industrial environments.

MPN: C1JS43

Supplier Part Number: FS1700-16-16

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Flanged, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J1453, SAE J518
Dimensions
2.8 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/2 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Series
FS1700 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-7/16-12
Tube Outside Diameter
1 in

Product Questions & Answers (2)

Question by: Daryl W on Feb 7, 2026, 3:24 PM
What exactly is this adapter doing in a hydraulic line, is it just converting the flange connection over to a threaded fitting?
Answer by: Customer Support on Feb 9, 2026, 1:19 PM
Pretty much, yeah. One end connects to a 1.00 inch Code 61 split flange port, and the other end is a 1-7/16-12 male O-ring face seal thread. So if you've got a component with a Code 61 flange port and you need to transition into an ORFS line, this is the piece that bridges that gap. It runs straight through with no angle, so routing has to line up accordingly.
Question by: Lynn K on Dec 17, 2025, 5:43 PM
What size is the flange on this adapter?
Answer by: Customer Support on Dec 19, 2025, 4:16 PM
The flange size on this steel adapter is 1 inch, designed to fit Code 61 split flange connections.
