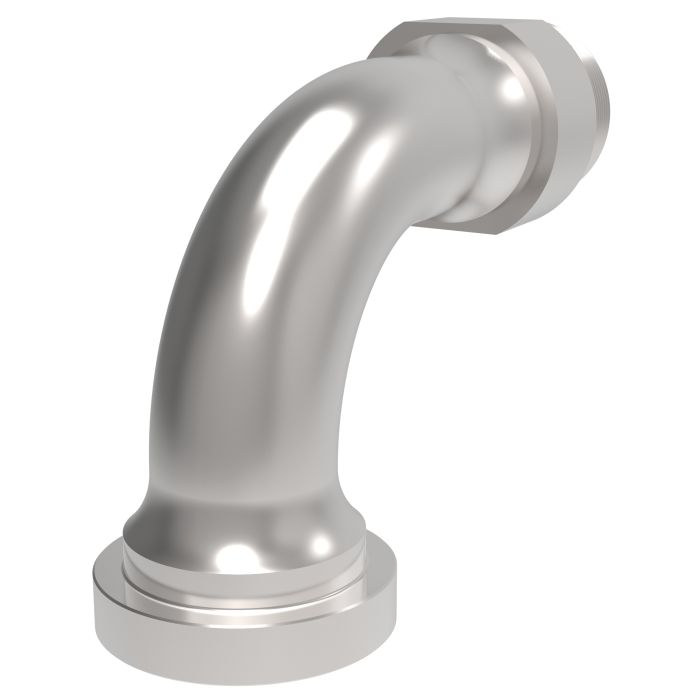

main product photo

Steel Adapter, 1.00 Inch Code 62 Split Flange To 1-7/16-12 Male O-Ring Face Seal, 90 deg Elbow

Ask A Question

Description & Features

The Danfoss / Eaton FF5945T Series Elbow Adapter offers a versatile connection solution for various industrial environments. Designed to meet rigorous standards this adapter boasts a 1.00 Inch Code 62 Split Flange coupled with a 1-7/16-12 Male O-Ring Face Seal configured at a 90-degree angle.

Engineered for applications in marine and military settings chemical processing pulp and paper manufacturing food and beverage processing and off-shore drilling this steel adapter ensures reliable and efficient performance. Its robust construction is suitable for temperatures as low as -40 degrees making it ideal for demanding conditions.

The adapter features high-precision threads without the need for thread sealant ensuring a secure and leak-free connection. The drop dimension of 2.3700 further enhances its compatibility and ease of installation in confined spaces.

MPN: FF5945T1616S

Supplier Part Number: FF5945T1616S

Specifications

A
3.22
Alternate Part Numbers
Alternate Part Number C1JS29
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
2.37
Drop Dimension
2.37
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
1
End Type 1
Flanged
End Type 2
ORS
Flange Size
1
Minimum Working Temperature
-40
Seal Part if Included
FF9446-21|FF9446-219
Supplier Part Number
FF5945T1616S
Thread 2
1-7/16-12
Thread Sealant
No
Product Weight
1.06 lbs

Related Documents

Similar Products

Model Number Flange Size Thread 2 A B Price Action
Steel Adapter, 1.00 Inch Code 62 Split Flange To 1-7/16-12 Male O-Ring Face Seal, 90 deg Elbow

FF5945T1616S Steel Code 62 Flange To ORS 90 Elbow

1

1-7/16-12

3.22

2.37

Product Questions & Answers (1)

Question by: Dwayne M on Nov 22, 2025, 10:34 AM
Got a tight spot on a hydraulic line near the pump and need to make a 90-degree turn without a lot of extra room. This adapter rated for that kind of setup, or is it gonna be too bulky?
Answer by: Customer Support on Nov 23, 2025, 9:44 PM
For tight routing situations, the 2.37 inch drop dimension on this fitting actually helps quite a bit. The 90-degree configuration lets you redirect the line without needing a long straight run, and the overall profile stays compact enough for confined installations. The 1-inch Code 62 split flange end pairs with a 1-7/16-12 male O-ring face seal on the other side, so once it's torqued down you're not fighting leaks or needing thread sealant on that ORFS end. Just make sure your mating flange and hose end match those specs before you commit.
