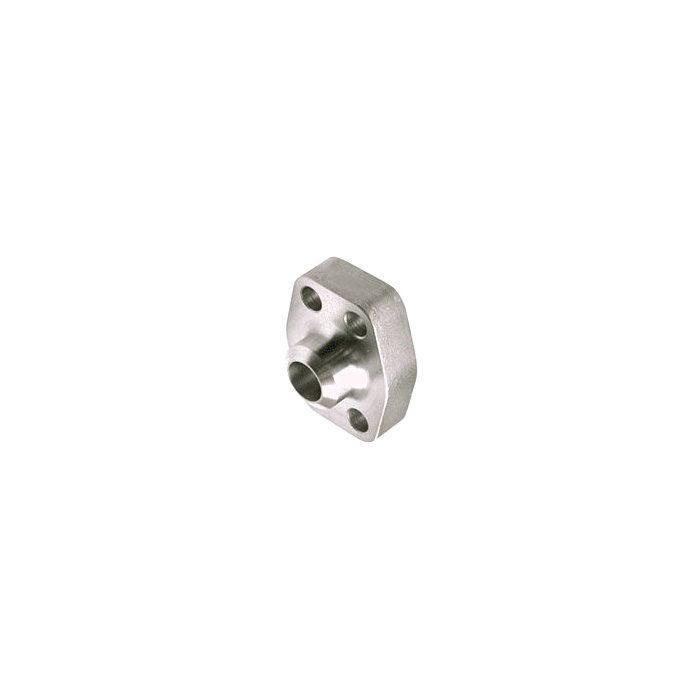

Steel SAE 4-Bolt Flange Adapter, 2.00 Inch Code 62 Flange, O-Ring Half To 2.00 Inch Pipe, Butt Weld

Ask A Question

Description & Features

Optimize your hydraulic systems with the Steel SAE 4-Bolt Flange Adapter, designed for robust performance and reliability. This adapter features a 2.00-inch Code 62 flange, expertly paired with an O-Ring half to ensure a secure fit to a 2.00-inch pipe. Constructed from durable steel, it provides the strength required for demanding industrial applications.

Included with the adapter are essential mounting bolts, lock washers, and a Buna-N O-Ring, ensuring a complete and hassle-free installation. The precise engineering of this flange adapter, with attributes such as a pad size of 2 and an external diameter of 3.44 inches, makes it a trusted choice for professionals seeking dependable hydraulic connections.

SKU: W30-32U

Supplier Part Number (MPN): W30-32U

Alternate Part Numbers: C1JQ97

Specifications

Brand
ANCHOR FLUID POWER
a Dimensions
3.44 in
b Dimensions
5-1/4 in
c Dimensions
1-3/4 in
Connection Size 1
2 in
Connection Size 2
2 in
Connection Type
Butt Weld, Flanged
Connection Type 1
Code 62 O-ring Flange
Connection Type 2
Butt Weld
d Dimensions
3.812 in
Dimensions
5.28 in H x 4.5 in W x 2.56 in D
f Dimensions
1.46 in
Fitting Type
Flange
Flange Size
1.46 in THK
For Use With
SCH 160 Pipes
g Dimensions
2-3/8 in
h Dimensions
1.689 in
k Dimensions
0.781 in
Material
Steel
Material Construction
Carbon Steel
Number of Bolt Holes
4
Series
W Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Chad W on Aug 25, 2025, 6:22 PM
trying to replace an old 4-bolt flange to pipe adapter. is this one the code 62 style for 2 inch pipe?
Answer by: Customer Support on Aug 27, 2025, 4:34 PM
It matches a 2.00 inch Code 62 SAE 4-bolt flange on the flange end and a 2.00 inch pipe size on the other end with a butt weld connection.
