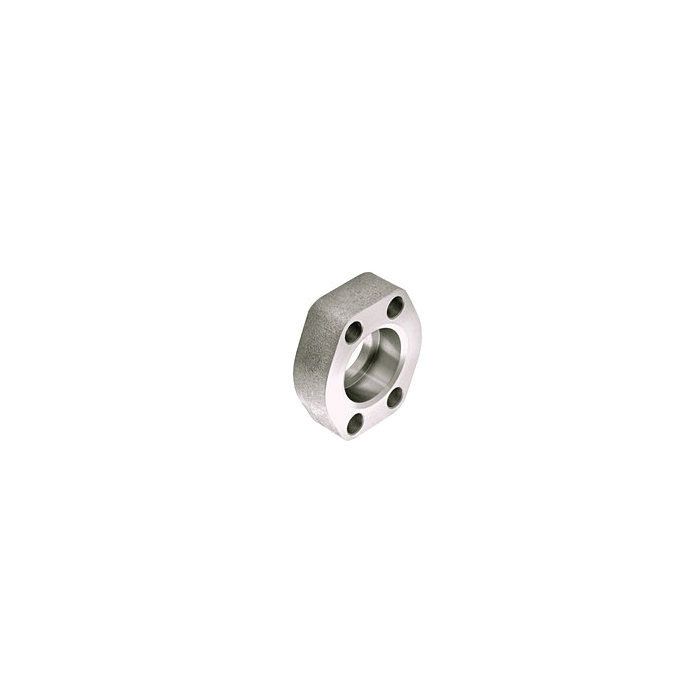

main product photo

Steel 4-Bolt Flange Adapter, 1.25 Inch Code 62 Flange, O-Ring Half To 1.25 Inch Female NPT, Straight

Ask A Question

Description & Features

Designed for connecting Code 62 flange ports to female NPT lines in hydraulic systems, this Steel 4-Bolt Flange Adapter, 1.25 Inch Code 62 Flange, O-Ring Half To 1.25 Inch Female NPT, Straight is manufactured by Anchor Fluid Power and built for reliable straight-run installations. The adapter features a 1.25-inch pad size with a 1.25-inch pipe size, providing a direct, leak-resistant transition between flange and threaded port connections.

Constructed from steel, the adapter ships ready to install and includes mounting bolts, lock washers, and a Buna-N O-ring. The four-bolt flange configuration conforms to Code 62 standards, making it suitable for high-pressure hydraulic circuit connections where a secure, compact fitting is required.

SKU: W59-20-20U

Supplier Part Number (MPN): W59-20-20U

Alternate Part Numbers: C1KN75

Specifications

A
3.06
B
3.75
C
1.25
D
2.63
E
1.50
Brand
Anchor Fluid Power
Brand
Anchor Fluid Power
Pack Size
1.00
UOM
EA
F
0.69
G
1.75
H
1.252 in
Includes
Mounting bolts, lock washers and Buna-N O-Ring
K
0.53
Pad Size
1.25
Pipe Size
1.25
Supplier Part Number
W59-20-20U
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1KN75
Product Weight
3.70 lbs

Similar Products

Model Number Includes Pipe Size Pad Size A B C D E F G H K Price Action
Steel 4-Bolt Flange Adapter, 1.25 Inch Code 62 Flange, O-Ring Half To 1.25 Inch Female NPT, Straight

W59-20-20U Steel Code 62 To Female NPT Adapter

Mounting bolts, lock washers and Buna-N O-Ring

1.25

1.25

3.06

3.75

1.25

2.625

1.5

0.69

1.75

1.252 in

0.531

Steel 4-Bolt Flange Adapter, 1.50 Inch Code 62 Flange, O-Ring Half To 1.50 Inch Female NPT, Straight

W59-24-24U Steel Code 62 To Female NPT Adapter

Mounting bolts, lock washers and Buna-N O-Ring

1.5

1.5

3.75

4.44

1.437

3.125

1.75

0.75

2.115

1.502 in

0.656

Steel 4-Bolt Flange Adapter, 2.00 Inch Code 62 Flange, O-Ring Half To 2.00 Inch Female NPT, Straight

W59-32-32U Steel Code 62 To Female NPT Adapter

Mounting bolts, lock washers and Buna-N O-Ring

2

2

4.5

5.25

1.75

3.812

1.75

0.875

2.49

2.002 in

0.781

Steel 4-Bolt Flange Adapter, 2.50 Inch Code 62 Flange, O-Ring Half To 2.50 Inch Female NPT, Straight

W59-40-40U Steel Code 62 To Female NPT Adapter

Mounting bolts, lock washers and Buna-N O-Ring

2.5

2.5

5.87

6.87

2.312

4.875

2.06

1

2.995

2.502 in

0.906

Product Questions & Answers (1)

Question by: Johnny C on Mar 27, 2026, 8:18 AM
Is this here flange adapter made of steel?
Answer by: Customer Support on Mar 28, 2026, 6:00 PM
it's constructed from steel.
