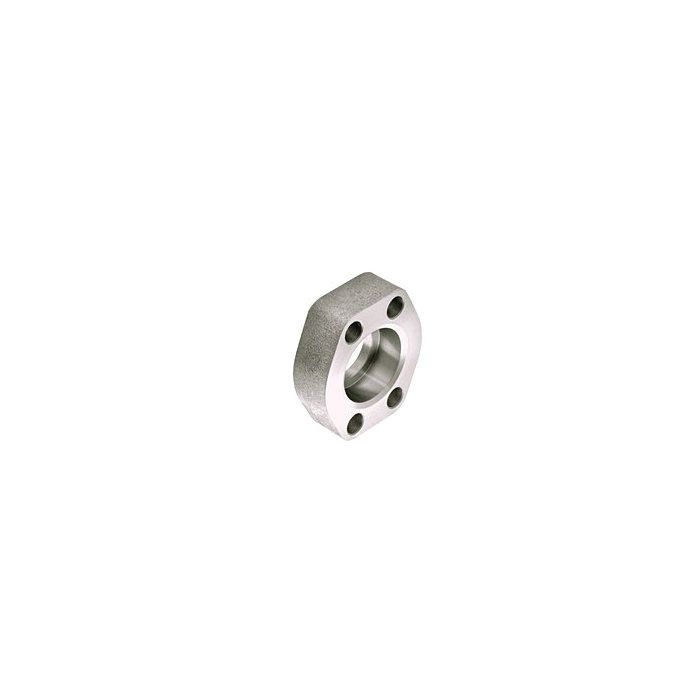

main product photo

Steel 4-Bolt Flange Adapter, 1.50 Inch Code 62 Flange, O-Ring Half To 1.50 Inch Female NPT, Straight

Ask A Question

Description & Features

Designed for straight-run hydraulic connections, this Steel 4-Bolt Flange Adapter, 1.50 Inch Code 62 Flange, O-Ring Half To 1.50 Inch Female NPT, Straight provides a reliable transition between a Code 62 four-bolt flange face and a 1.50-inch female NPT port. Manufactured by Anchor Fluid Power in steel construction, it is suited for high-pressure hydraulic systems requiring a secure, leak-resistant flange-to-thread interface.

The adapter ships complete with mounting bolts, lock washers, and a Buna-N O-ring, making it ready for installation without sourcing additional hardware. The 1.5-inch pad size matches the 1.5-inch pipe size, and key dimensional references include a 3.75-inch A dimension, 4.44-inch B dimension, and a 3.125-inch D measurement. The Buna-N O-ring provides reliable sealing compatibility with standard hydraulic fluids. This part is cataloged under Anchor Fluid Power catalog number C1JQ99.

SKU: W59-24-24U

Supplier Part Number (MPN): W59-24-24U

Alternate Part Numbers: C1JQ99

Specifications

Brand
ANCHOR FLUID POWER
a Dimensions
3-3/4 in
b Dimensions
4.44 in
c Dimensions
1.437 in
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Flanged, Socket Weld
Connection Type 1
SAE Code 62 O-ring Flange
Connection Type 2
Socket Weld Pipe
d Dimensions
3-1/8 in
Dimensions
3.75 in L x 1.75 in W x 4.44 in H
f Dimensions
3/4 in
Fitting Type
Flange
Flange Size
3/4 in THK
g Dimensions
2.115 in
h Dimensions
1.502 in
k Dimensions
0.656 in
Material
Steel
Material Construction
Carbon Steel
Series
W Series
Thread Sealant
Without Thread Sealant

Similar Products

Model Number Includes Pipe Size Pad Size a Dimensions b Dimensions c Dimensions d Dimensions E f Dimensions G h Dimensions K Price Action
Steel 4-Bolt Flange Adapter, 1.25 Inch Code 62 Flange, O-Ring Half To 1.25 Inch Female NPT, Straight

W59-20-20U Steel Code 62 To Female NPT Adapter

Mounting bolts, lock washers and Buna-N O-Ring

1.25

1.25

3.06 in

3-3/4 in

1-1/4 in

2-5/8 in

1.5

0.69 in

1.75

1.252 in

0.531

Steel 4-Bolt Flange Adapter, 2.00 Inch Code 62 Flange, O-Ring Half To 2.00 Inch Female NPT, Straight

W59-32-32U Steel Code 62 To Female NPT Adapter

Mounting bolts, lock washers and Buna-N O-Ring

2

2

4-1/2 in

5-1/4 in

1-3/4 in

3.812 in

1.75

7/8 in

2.49

2.002 in

0.781

Steel 4-Bolt Flange Adapter, 2.50 Inch Code 62 Flange, O-Ring Half To 2.50 Inch Female NPT, Straight

W59-40-40U Steel Code 62 To Female NPT Adapter

Mounting bolts, lock washers and Buna-N O-Ring

2.5

2.5

5.87 in

6.87 in

2.312 in

4-7/8 in

2.06

1 in

2.995

2.502 in

0.906

Product Questions & Answers (3)

Question by: Kurt P on Jun 10, 2025, 7:34 AM
trying to replace an old flange to pipe adapter, is this one the 1-1/2 code 62 4-bolt flange to 1-1/2 female npt straight style?
Answer by: Customer Support on Jun 11, 2025, 9:35 PM
Match-up wise, it’s a straight steel adapter that goes from a 1.50 inch Code 62 four-bolt flange face on the O-ring half to a 1.50 inch female NPT port. The pad size is 1.5 and it’s listed as fitting 1.5 inch pipe size, so it’s the common 1-1/2 to 1-1/2 flange-to-NPT transition.
Question by: Ray B on Dec 15, 2025, 6:31 PM
Does this adapter come with everything needed to bolt it up, or do I have to track down the hardware separate?
Answer by: Customer Support on Dec 17, 2025, 6:20 PM
Everything ships together. The package includes the mounting bolts, lock washers, and a Buna-N O-ring, so you can go straight to installation without making a separate hardware run.
Question by: Kurt M on Dec 17, 2025, 3:48 PM
Will this flange adapter hold up okay in a hydraulic system running around 3000 PSI?
Answer by: Customer Support on Dec 18, 2025, 8:21 PM
This adapter is designed for high-pressure hydraulic systems, providing a secure, leak-resistant connection between a Code 62 four-bolt flange and a female NPT port. The Buna-N O-ring should provide reliable sealing with standard hydraulic fluids at that pressure.
