Steel 4-Bolt Flange Adapter, 1.00 Inch Code 62 Flange, Flat Face Half To 1.00 Inch Female NPT, Straight

Description & Features

Engineered for robust hydraulic applications, the Steel 4-Bolt Flange Adapter seamlessly connects a 1.00 inch Code 62 Flange to a 1.00 inch Female NPT, ensuring reliable performance in demanding environments. Crafted from high-quality steel, this adapter provides durability and strength, making it ideal for industrial use. The flat face design ensures a tight seal, reducing the risk of leaks and maintaining system integrity under pressure.

This straight adapter features precise dimensions with a 7/16-14 thread size, ensuring compatibility with standard hydraulic systems. With dimensions like 2.75 inches for A and 3.19 inches for B, it allows for easy integration into existing setups. Designed by Anchor Fluid Power, this flange adapter is a testament to quality and precision engineering.

SKU: W60-16-16

Supplier Part Number (MPN): W60-16-16

Alternate Part Numbers: C1DT15

Specifications

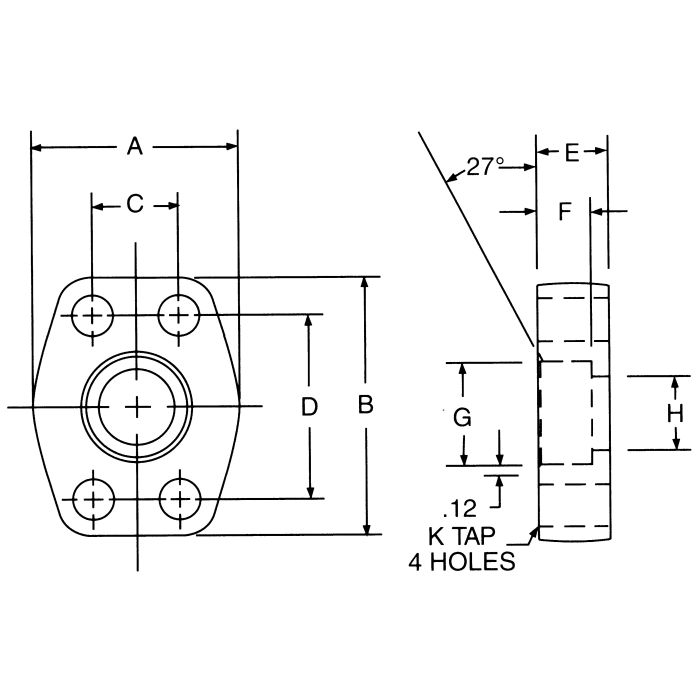

A 2.75	B 3.19	C 1.09	D 2.25	E 1.50	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	F 0.63	G 1.33	H 1 in	Pad Size 1	Pipe Size 1	Supplier Part Number W60-16-16	Thread 1 7/16-14	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1DT15	Product Weight 2.45 lbs

Similar Products

Model Number	Pipe Size	Pad Size	A	B	C	D	E	F	G	H	Thread 1
W60-16-16 Steel Code 62 To Female NPT Adapter	1	1	2.75	3.19	1.093	2.25	1.5	0.63	1.328	1 in	7/16-14
W60-20-20 Steel Code 62 To Female NPT Adapter	1.25	1.25	3.06	3.75	1.25	2.625	1.5	0.69	1.672	1.25 in	1/2-13
W60-24-24 Steel Code 62 To Female NPT Adapter	1.5	1.5	3.75	4.44	1.437	3.125	1.75	0.75	1.922	1.5 in	5/8-11

Product Questions & Answers (3)

Question by: Donna S on Jan 11, 2026, 9:01 AM

What kind of connection does this adapter actually make? Got a Code 62 flange on one end and not sure what the other side hooks up to.

Answer by: Customer Support on Jan 12, 2026, 8:08 PM

One end mates with a 1.00 inch Code 62 flange using a 4-bolt flat face half configuration. The other end is a 1.00 inch female NPT port, so you're threading a male NPT fitting or pipe into it. The flat face design keeps the seal tight and helps prevent leaks under pressure, which matters in high-demand hydraulic lines.

Question by: Clint M on Dec 9, 2025, 8:45 AM

trying to hook a 1 inch npt hose up to a code 62 flange port, is this the right adapter?

Answer by: Customer Support on Dec 10, 2025, 11:26 AM

For that kind of hookup, it matches a 1.00 inch Code 62 4-bolt flange on one side and a 1.00 inch female NPT on the other, in a straight configuration.

Question by: Gene T on Nov 25, 2025, 8:53 AM

Will this flange adapter hold up in a hydraulic system that sees pretty consistent high pressure?

Answer by: Customer Support on Nov 27, 2025, 7:18 AM

Crafted from high-quality steel, this adapter is designed for robust hydraulic applications, ensuring durability and strength under pressure. It’s built to maintain system integrity and reduce the risk of leaks in demanding environments.
