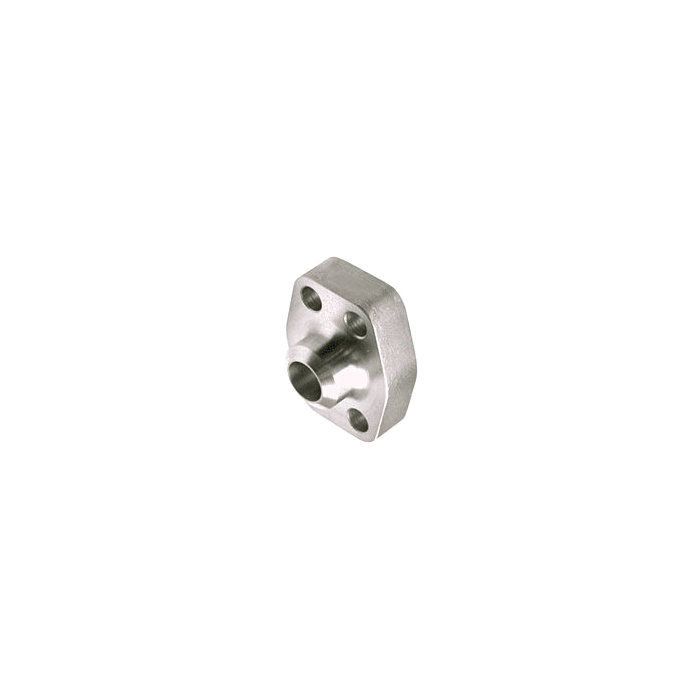

main product photo

Steel SAE 4-Bolt Flange Adapter, 1.50 Inch Code 62 Flange, Flat Face Half To 1.50 Inch Pipe, Butt Weld

Ask A Question

Description & Features

Designed for high-pressure hydraulic line connections, this Steel SAE 4-Bolt Flange Adapter, 1.50 Inch Code 62 Flange, Flat Face Half To 1.50 Inch Pipe, Butt Weld provides a secure transition from a Code 62 flat face flange half to a 1.50-inch pipe via butt weld termination. Manufactured by Anchor Fluid Power, it conforms to SAE 4-bolt flange standards and is suited for demanding industrial hydraulic applications where a reliable, leak-resistant connection is required.

The adapter features a 1.50-inch pad size and pipe size, with a 5/8-11 bolt thread. Steel construction provides the mechanical integrity expected in high-pressure hydraulic circuit assembly. Key dimensional references include a B dimension of 4.44 inches and a D dimension of 3.125 inches, with an H value of 1.337 inches, supporting accurate fitment verification against system requirements.

SKU: W29-24

Supplier Part Number (MPN): W29-24

Alternate Part Numbers: C1JQ95

Specifications

Brand
ANCHOR FLUID POWER
a Dimensions
2.81 in
b Dimensions
4.44 in
c Dimensions
1.437 in
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Butt Weld, Flanged
Connection Type 1
SAE Code 62 Flat Face Flanged
Connection Type 2
Butt Weld
d Dimensions
3-1/8 in
Dimensions
4.41 in H x 3.7 in W x 2.17 in D
f Dimensions
1.1 in
Fitting Type
Flange
Flange Size
1.18 in THK
For Use With
SCH 160 Pipes
g Dimensions
1.9 in
h Dimensions
1.337 in
Material
Steel
Material Construction
Carbon Steel
Number of Bolt Holes
4
Series
W Series
Thread Sealant
Without Thread Sealant
Thread Size
5/8-11

Similar Products

Model Number Pipe Size Pad Size a Dimensions b Dimensions c Dimensions d Dimensions E f Dimensions G h Dimensions Thread Size Price Action
Steel SAE 4-Bolt Flange Adapter, 2.00 Inch Code 62 Flange, Flat Face Half To 2.00 Inch Pipe, Butt Weld

W29-32 Steel Code 62 To Pipe Adapter

2

2

3.44 in

5-1/4 in

1-3/4 in

3.812 in

2.48

1.46 in

2.375

1.689 in

3/4-10

Product Questions & Answers (3)

Question by: Travis A on Nov 1, 2025, 6:48 PM
What size pipe does this flange adapter fit? Gotta make sure it's the right one before I order.
Answer by: Customer Support on Nov 3, 2025, 6:05 AM
This adapter is made to connect a Code 62 flat face flange half to a 1.50-inch pipe using a butt weld. The pad size is also 1.5 inches.
Question by: Johnny C on Apr 16, 2025, 8:16 PM
Got a 1.5-inch pipe I need to tie into a high-pressure hydraulic line, does this flange adapter work with a butt weld termination on that size?
Answer by: Customer Support on Apr 18, 2025, 8:49 AM
For a 1.5-inch pipe with a butt weld connection, yeah, this is the right fit. The adapter is built specifically for a 1.50-inch pipe size with a butt weld termination on one end and a Code 62 flat face flange half on the other. Steel construction handles the mechanical demands you'd expect in a high-pressure hydraulic circuit. The 4-bolt SAE pattern locks it down solid, and the 5/8-11 bolt thread is what you'll be working with when you bolt it up to your mating flange.
Question by: Brent W on Feb 23, 2026, 7:18 PM
got a code 62 flat face flange half on one end and need to weld into 1-1/2 pipe on the other, is this the right adapter?
Answer by: Customer Support on Feb 25, 2026, 7:08 AM
For a Code 62 SAE 4-bolt flat face flange half to a 1.50 inch pipe butt weld connection, that is exactly what this adapter is built to do. It transitions from the 1.50 inch pad size flange end to a 1.50 inch pipe size weld end.
