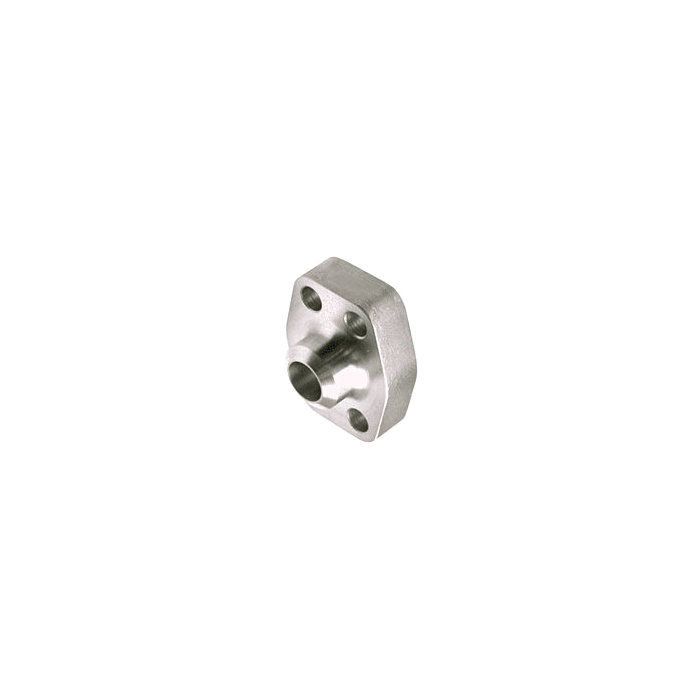

main product photo

Steel SAE 4-Bolt Flange Adapter, 2.00 Inch Code 62 Flange, Flat Face Half To 2.00 Inch Pipe, Butt Weld

Ask A Question

Description & Features

This steel SAE 4-bolt flange adapter features a 2.00-inch Code 62 flange with a flat face half, designed for connection to a 2.00-inch pipe via butt weld.

Manufactured by Anchor Fluid Power, this steel code 62 to pipe adapter has a pad size of 2 and utilizes 3/4-10 threads.

SKU: W29-32

Supplier Part Number (MPN): W29-32

Alternate Part Numbers: C1JQ96

Specifications

Brand
ANCHOR FLUID POWER
a Dimensions
3.44 in
b Dimensions
5-1/4 in
c Dimensions
1-3/4 in
Connection Size 1
2 in
Connection Size 2
2 in
Connection Type
Butt Weld, Flanged
Connection Type 1
SAE Code 62 Flat Face Flanged
Connection Type 2
Butt Weld
d Dimensions
3.812 in
Dimensions
5.28 in H x 4.5 in W x 2.56 in D
f Dimensions
1.46 in
Fitting Type
Flange
Flange Size
1.46 in THK
For Use With
SCH 160 Pipes
g Dimensions
2-3/8 in
h Dimensions
1.689 in
Material
Steel
Material Construction
Carbon Steel
Number of Bolt Holes
4
Series
W Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-10

Similar Products

Model Number Pipe Size Pad Size a Dimensions b Dimensions c Dimensions d Dimensions E f Dimensions G h Dimensions Thread Size Price Action
Steel SAE 4-Bolt Flange Adapter, 1.50 Inch Code 62 Flange, Flat Face Half To 1.50 Inch Pipe, Butt Weld

W29-24 Steel Code 62 To Pipe Adapter

1.5

1.5

2.81 in

4.44 in

1.437 in

3-1/8 in

2.17

1.1 in

1.9

1.337 in

5/8-11

Product Questions & Answers (3)

Question by: Lance C on Sep 16, 2025, 1:28 PM
got a 2 inch pipe i need to weld onto a code 62 flange, is this the right adapter?
Answer by: Customer Support on Sep 17, 2025, 8:42 PM
For that setup, this part matches a 2.00 inch Code 62 SAE 4-bolt flange on the flange side and a 2.00 inch pipe connection on the other side, with a butt weld end.
Question by: Randy R on Sep 24, 2025, 8:13 AM
What size pipe does this flange adapter weld onto, and is it a standard butt weld connection?
Answer by: Customer Support on Sep 25, 2025, 7:53 PM
Butt weld to a 2.00-inch pipe is exactly what this adapter is set up for. The connection method is a standard butt weld, so you're working with a clean, full-penetration joint rather than a socket or threaded end. That keeps things straightforward if you've got a 2-inch pipe run you're tying into a Code 62 flange system.
Question by: Kent M on Jan 24, 2026, 7:35 AM
Reckon this flange adapter will hook up to my existing 2-inch pipe without too much fuss?
Answer by: Customer Support on Jan 26, 2026, 7:42 AM
This steel SAE 4-bolt flange adapter is designed to connect a 2.00-inch Code 62 flange with a flat face half to a 2.00-inch pipe via butt weld, so as long as those dimensions match your setup it should work.
