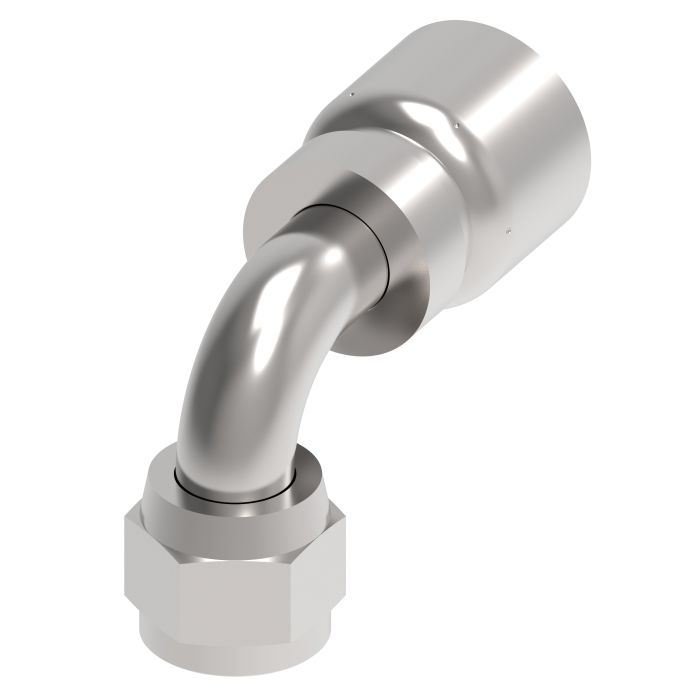

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, 90 deg Elbow

Ask A Question

Description & Features

Engineered for robust applications the DANFOSS Power Solutions (II LLC Aeroquip) Steel Crimp 1 Wire Braid Reduced Bore Fitting provides a reliable solution for connecting hydraulic components. This fitting is designed for a -04 hose and includes a 7/16-20 female JIC 37-degree flare swivel ensuring compatibility with a variety of systems. With its 90-degree elbow design it's tailored for use in compact and tight spaces where traditional fittings might not fit.

Fabricated from high-quality steel this fitting offers durability and resistance to wear extending the life of your hydraulic system. The universal swivel feature allows for easy installation and adjustment minimizing downtime during assembly or maintenance. The fitting does not require a mandrel further simplifying the installation process.

This fitting complies with the UNSPSC code 40183100 ensuring standardization and interoperability. Recognized under the ECCN category EAR99 its suitable for a broad range of industrial applications. The product drop dimension is 0.6800 and the end types are SAE and Line/Hose/Tube with end sizes 0.4375 and 0.25 respectively.

MPN: C1ML17

Supplier Part Number: FJ3244-0404S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.61 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 45 deg/37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
0.83 in
d Dimensions
0.83 in
Dimensions
1.89 in L x 0.67 in W x 1.34 in H
Drop Dimensions
0.68 in
End Gender 1
Female
End Gender 2
Female
End Size 1
7/16 in
End Size 2
1/4 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
1503, FC234, FC300, FC350 and FC355 Series Hoses
h Dimensions
0.68 in
Hex Size
0.563 in
Hose Dash Size
04
Inside Diameter
0.14 in
Material
Steel
Material Construction
Carbon Steel
Series
FJ3244 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/16-20
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions a Dimensions h Dimensions Price Action
Steel Crimp 1 Wire Braid Reduced Bore Fitting, 1-5/16 - 12 Female JIC 37 deg Flare Swivel, -16 Hose, 90 deg Elbow

FJ3250-1616S Steel Crimp JIC Fitting

1-5/16-12

16

2.2 in

3.19 in

2.39 in

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 1-5/8 - 12 Female JIC 37 deg Flare Swivel, -20 Hose, 90 deg Elbow

FJ3250-2020S Steel Crimp JIC Fitting

1-5/8-12

20

2.9 in

4.15 in

3-1/4 in

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -08 Hose, 90 deg Elbow

FJ3244-0808S Steel Crimp JIC Fitting

3/4-16

08

1.27 in

2.07 in

1.09 in

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 7/8-14 Female JIC 37 deg Flare Swivel, -10 Hose, 90 deg Elbow

FJ3244-1010S Steel Crimp JIC Fitting

7/8-14

10

1.63 in

2.51 in

1.23 in

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -06 Hose, 90 deg Elbow

FJ3250-0606S Steel Crimp JIC Fitting

9/16-18

06

1.05 in

1.84 in

0.85 in

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 1-1/16 - 12 Female JIC 37 deg Flare Swivel, -12 Hose, 90 deg Elbow

FJ3250-1212S Steel Crimp JIC Fitting

1-1/16-12

12

1.9 in

2.78 in

1.82 in
