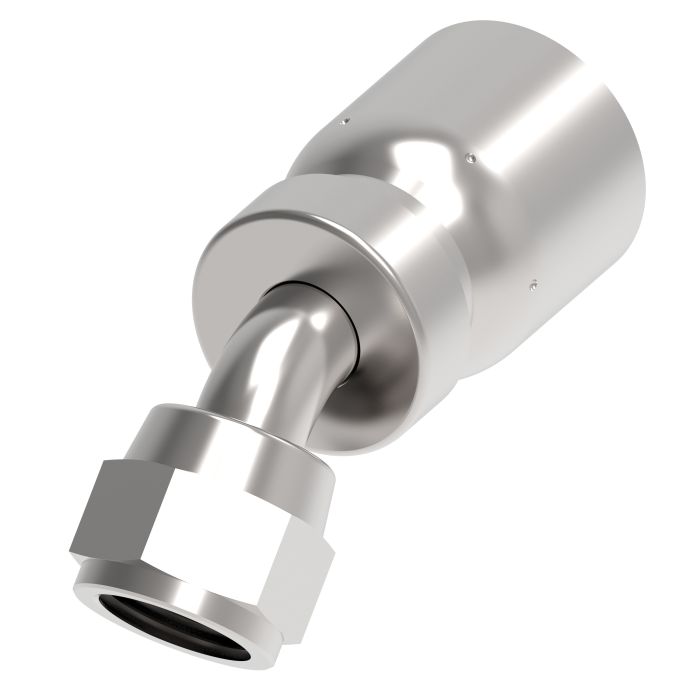

main product photo

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -06 Hose, 45 deg Elbow

Ask A Question

Description & Features

The Aeroquip Reduced Bore Steel Crimp Fittings are designed for efficiency in industrial applications. These fittings feature a 45-degree elbow and a 9/16-18 female JIC 37-degree flare swivel compatible with -06 hose sizes. With a sleek steel construction they offer durability and reduced bore for optimized fluid flow.

MPN: C1ML20

Supplier Part Number: FJ3249-0606S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.94 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
1.15 in
d Dimensions
1.15 in
Dimensions
2.65 in L x 0.69 in W x 1.51 in H
Drop Dimensions
0.39 in
End Gender 1
Female
End Gender 2
Female
End Size 1
9/16 in
End Size 2
3/8 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 & -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04
h Dimensions
0.39 in
Hex Size
11/16 in
Hose Dash Size
06
Inside Diameter
0.23 in
Material
Steel
Material Construction
Carbon Steel
Series
FJ3249 Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions a Dimensions h Dimensions Price Action
Steel Crimp 1 Wire Braid Reduced Bore Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, 45 deg Elbow

FJ3243-0404S Steel Crimp JIC Fitting

7/16-20

04

0.94 in

1.72 in

0.33 in

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -08 Hose, 45 deg Elbow

FJ3243-0808S Steel Crimp JIC Fitting

3/4-16

08

1.58 in

2.3 in

0.55 in

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 7/8-14 Female JIC 37 deg Flare Swivel, -10 Hose, 45 deg Elbow

FJ3243-1010S Steel Crimp JIC Fitting

7/8-14

10

1.62 in

2-1/2 in

0.63 in

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 1-1/16 - 12 Female JIC 37 deg Flare Swivel, -12 Hose, 45 deg Elbow

FJ3249-1212S Steel Crimp JIC Fitting

1-1/16-12

12

1.94 in

2.82 in

0.77 in

Steel Crimp 1 Wire Braid Reduced Bore Fitting, 1-5/16 - 12 Female JIC 37 deg Flare Swivel, -16 Hose, 45 deg Elbow

FJ3249-1616S Steel Crimp JIC Fitting

1-5/16-12

16

2.39 in

3.38 in

1.07 in

Product Questions & Answers (1)

Question by: Connie B on Jul 8, 2025, 1:24 PM
Got a -06 hose line I'm trying to clean up with a tighter routing. Does the 45-degree elbow on this fitting actually help with that, or is it more of a minor angle change?
Answer by: Customer Support on Jul 10, 2025, 7:17 AM
Forty-five degrees makes a real difference when you're working in tight quarters or trying to avoid a hard bend right off the hose end. With a -06 hose, that elbow lets you redirect the line at a manageable angle without kinking or stressing the hose near the crimp zone. It's a common go-to when straight fittings just don't give you enough clearance around brackets or other components.
