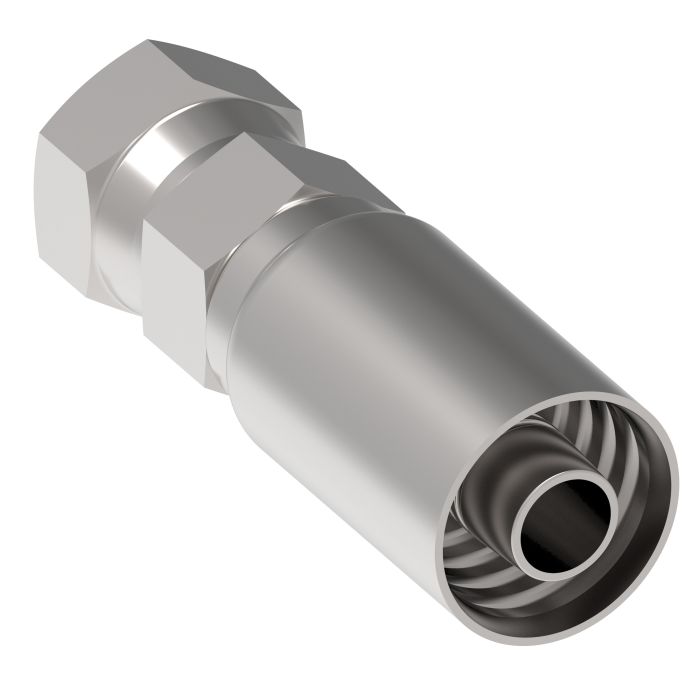

Steel Crimp 390H/790H Swage Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, Straight

Ask A Question

Description & Features

The DANFOSS Power Solutions Steel Crimp JIC Swage Fitting offers precise robust connections for industrial applications. Designed for 1/4-inch hose it features a 7/16-20 female JIC 37-degree flare swivel fitting ensuring a tight reliable seal without the need for thread sealant.

This fitting is crafted for effective usage with SAE hose and tube assemblies. It has an end size of 0.4375 inches for connections and a hex size of 0.63 inches enhancing its compatibility with a variety of systems.

With no requirement for a mandrel installation is straightforward and the fitting's durable construction guarantees longevity. The 390H/790H swage fitting manufactured by Danfoss is categorized under UNSPSC code 40183100 ensuring compliance with industry standards and quality assurance.

MPN: 90H04-045400-0

Supplier Part Number: 90H04-045400-0

Specifications

Brand
Synflex® by Danfoss
a Dimensions
2.15 in
b Dimensions
1.44 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
2.15 in
Dimensions
2.53 in L x 0.63 in W x 0.63 in H
End Gender 1
Female
End Size 1
7/16 in
End Size 2
1/4 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
3440, 3630, 3E80 and 3R80 Series Hoses
Hex Size
0.63 in
Hose Dash Size
04
Inside Diameter
0.11 in
Material
Steel
Material Construction
Carbon Steel
Pusher Used
4599-FP012
Series
90H Series
Thread Sealant
Without Thread Sealant
Thread Size
7/16-20
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size b Dimensions Pusher Used Price Action
Steel Crimp 390H/790H Swage Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -08 Hose, Straight

90H08-085400-0 Steel Crimp JIC Swage Fitting

3/4-16

08

1.63 in

4599-FP016

Steel Crimp 390H/790H Swage Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -06 Hose, Straight

90H06-065500-0 Steel Crimp JIC Swage Fitting

9/16-18

06

1.56 in

4599-FP013

Product Questions & Answers (1)

Question by: Travis R on Mar 10, 2026, 12:18 PM
Will this fitting work with standard 1/4 inch hydraulic hose?
Answer by: Customer Support on Mar 12, 2026, 6:21 AM
This Danfoss fitting is designed specifically for 1/4-inch hose, ensuring a proper and secure connection in your hydraulic system.
