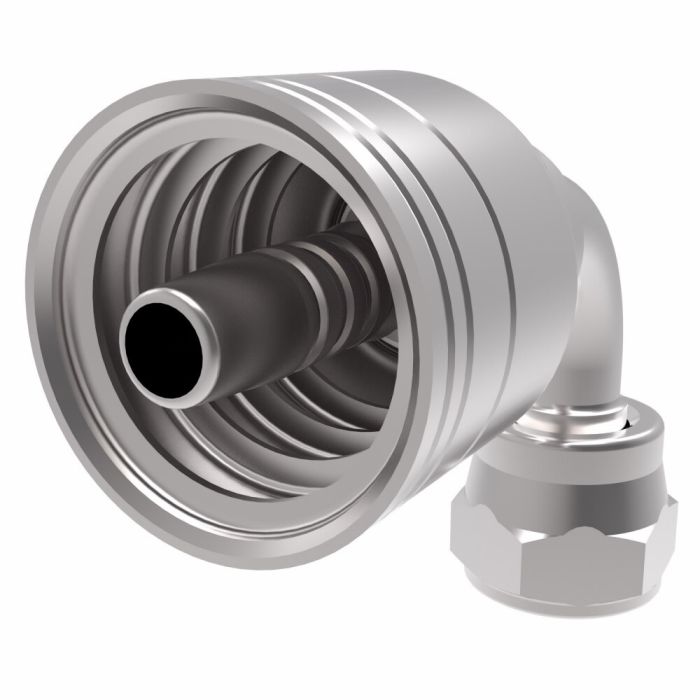

Steel Crimp 390H/790H Swage Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, 90 deg Elbow

Ask A Question

Description & Features

Designed for use with -04 hose on Synflex 390H and 790H assemblies, the Steel Crimp 390H/790H Swage Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, 90 deg Elbow is a steel swage fitting from Eaton Aeroquip's Synflex Steel Swage Fittings product line. The 90-degree elbow configuration suits installations where a straight-line connection isn't practical, and the female JIC 37-degree flare swivel end allows for rotational alignment during assembly.

Thread size is 7/16-20, with a 9/16-inch hex on the hose end side. The B dimension measures 1.25 inches and the F dimension 0.88 inches. Compatible pusher tooling for this fitting is the 4599-TP204. Fluid compatibility documentation is available from Eaton for reference when selecting this fitting for specific media.

SKU: 90H04-0455S0-0

Supplier Part Number (MPN): 90H04-0455S0-0

Alternate Part Numbers: C1MK26

Specifications

B
1.25
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Size 1
0.44
End Type 1
JIC
End Type 2
Line/Hose/Tube
F
0.88
Hex Size 2
0.56
Hose Size
-04
Mandrel Required
No
Pusher Used
4599-TP204
Supplier Part Number
90H04-0455S0-0
Thread 1
7/16-20
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1MK26, Alternate Part Number MINO-00015X08474
Product Weight
0.17 lbs

Related Documents

Similar Products

Model Number Thread 1 Hose Size B F Pusher Used Price Action
Steel Crimp 390H/790H Swage Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, 90 deg Elbow

90H04-0455S0-0 Steel Crimp JIC Swage Fitting

7/16-20

-04

1.25

0.88

4599-TP204

Product Questions & Answers (1)

Question by: Glen C on Aug 21, 2025, 7:52 AM
Got a -04 hose I'm trying to terminate with a 90 degree JIC swivel end. This the right fitting for that?
Answer by: Customer Support on Aug 23, 2025, 6:18 AM
For a -04 hose needing a 90 degree female JIC swivel termination, yes, that's exactly what this fitting is built for. It's part of the Eaton Aeroquip Synflex Steel Swage line, specifically the 390H/790H series, and the female JIC end runs a 7/16-20 thread with a 37 degree flare seat. The swivel lets you orient the connection without twisting the hose during installation, which saves a lot of headache in tight routing situations.
