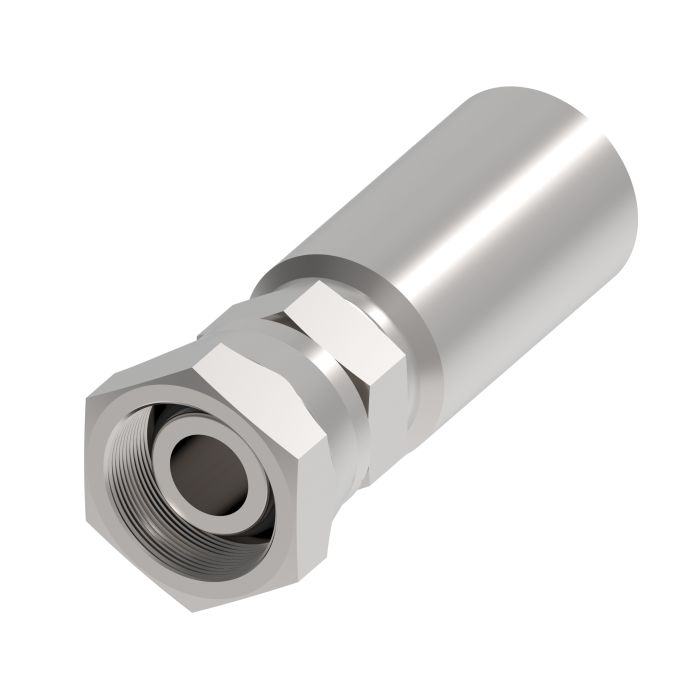

Steel Crimp 3903/7903 Swage Fitting, 3/8-19 Female JIS 60 deg Cone Swivel, -06 Hose, Straight

Ask A Question

Description & Features

The Steel Crimp 3903/7903 Swage Fitting designed by Danfoss Power Solutions (II LLC Aeroquip) features a 3/8-19 Female JIS 60-degree Cone Swivel -06 Hose configuration ideal for a range of industrial applications. The BSPP end type ensures a secure and reliable connection.

Engineered for robustness the fitting boasts a straight design facilitating ease of integration with existing systems. The 3/8-19 thread provides compatibility with established industrial standards enhancing its versatility across various setups.

The Synflex Steel Crimp Fitting is well-suited for high-pressure environments thanks to its durable steel construction. The -06 hose size and 0.87 hex size make it adaptable for precision usage in demanding conditions.

With no requirement for a mandrel and compatibility with the 4599-FP416 pusher installation is streamlined saving valuable time and resources. This fitting adheres to the ECCN: EAR99 classification ensuring it meets export compliance requirements.

Designed with practicality in mind the Steel Crimp 3903/7903 Swage Fitting is an essential component for those seeking reliable performance in industrial applications.

MPN: C1JA28

Supplier Part Number: 7903-06V06

Specifications

Brand
Synflex® by Danfoss
a Dimensions
2.87 in
b Dimensions
1.56 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female BSP Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female BSPP 60 deg Cone Swivel
Construction Style
Crimp
Cut-Off Factor
1.559 in
Dimensions
2.87 in L
End Connection Torque
33 to 40 lb-ft
End Gender 1
Female
End Size 1
3/8 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
25CT (-08), 30CT (-04 to -08), 3130, 3440 (-04 to -08), 3580, 37AL, 3800 Hoses
Hex Size
0.87 in
Hose Dash Size
06
Inside Diameter
0.81 in
Material
Steel
Material Construction
Carbon Steel
Pusher Used
4599-FP416
Series
7903 Series
Thread Sealant
Without Thread Sealant
Thread Size
G3/8

Similar Products

Model Number Thread Size Hose Dash Size b Dimensions Pusher Used Price Action
Steel Crimp 3903/7903 Swage Fitting, 1/4-19 Female JIS 60 deg Cone Swivel, -04 Hose, Straight

7903-04V04 Steel Crimp JIS Swage Fitting

1/4 in

04

1.38 in

4599-FP414

Product Questions & Answers (1)

Question by: Keith H on Feb 9, 2026, 4:35 PM
does this fitting work without a mandrel during installation, or do i need extra tooling for it?
Answer by: Customer Support on Feb 11, 2026, 6:38 AM
No mandrel is needed for this one. You'll use the 4599-FP416 pusher, and that's the only installation tool required. Keeps the process straightforward and cuts down on setup time when you're working through a stack of fittings.
