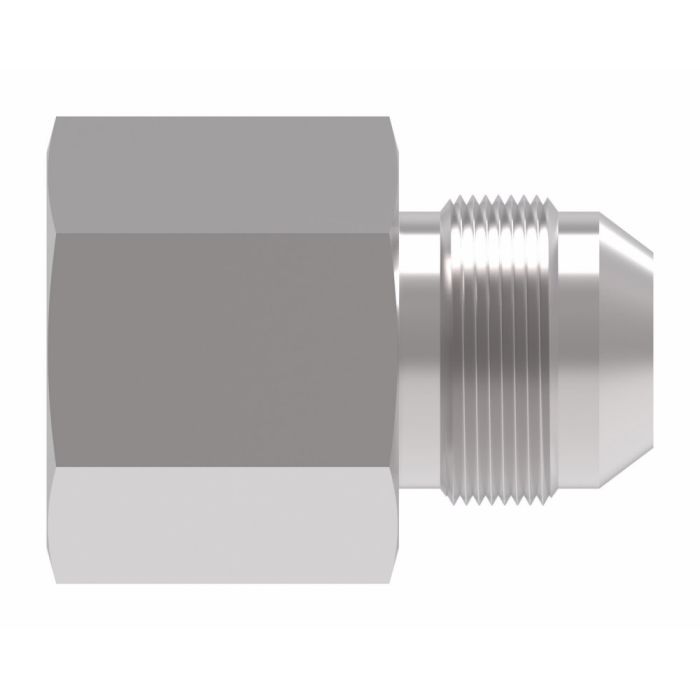

main product photo

Steel Adapter, M12 x 1.5 Female Metric 24deg (DIN 3901/3902 1.Rh) To 7/16-20 Male JIC 37 deg Flare, Straight

Ask A Question

Description & Features

This Eaton Aeroquip steel adapter facilitates secure connections in hydraulic, instrumentation, and chemical processing systems. This straight adapter connects an M12 x 1.5 female metric 24-degree port to a 7/16-20 male JIC 37-degree flare.

The adapter is part of the Danfoss / Eaton 15.163 Series, known for reliable performance in demanding applications.

SKU: 15.163-4-4

Supplier Part Number (MPN): 15.163-4-4

Alternate Part Numbers: C1AK70, MI-00328066, MINO-00015F68792

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.36 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female Metric, Male JIC
Connection Type 1
Female Metric DIN 24 deg Tube
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
DIN 3901/3902 l.Rh, SAE J514
Finish
Dura-Kote™
Fitting Type
Adapter
Hex Size
0.55 in
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-40 to 250 deg F
Segment Code
A
Series
15.163 Series
Thread Size
7/16-20 x M12x1.5

Similar Products

Model Number Tube O.D. Thread Size Thread 2 a Dimensions Price Action
Steel Adapter, M16 x 1.5 Female Metric 24deg (DIN 3901/3902 1.Rh) To 9/16-18 Male JIC 37 deg Flare, Straight

15.163-8-6 Steel Female DIN3901 To Male JIC Adapter

0.38

9/16-18 x M16x1.5

9/16-18

1.4 in

Product Questions & Answers (3)

Question by: Wade O on Jun 4, 2025, 9:59 AM
Just makin' sure, this here adapter will go from a M12 metric to a 7/16 JIC flare, right?
Answer by: Customer Support on Jun 6, 2025, 7:00 AM
Yes sir, that's exactly what it does. It adapts from a M12 x 1.5 female metric 24 degree (DIN 3901/3902 1.Rh) to a 7/16-20 male JIC 37 degree flare, and it's a straight adapter.
Question by: Rod R on Sep 16, 2025, 12:25 PM
got a hose end that’s metric M12 x 1.5 female with that 24 degree seat. Will this adapter get me over to a 7/16-20 JIC male?
Answer by: Customer Support on Sep 17, 2025, 3:20 PM
Converts an M12 x 1.5 female Metric 24 degree (DIN 3901/3902, right-hand) connection to a 7/16-20 male JIC 37 degree flare, straight through.
Question by: Travis R on Dec 28, 2025, 11:02 AM
fitting goes from metric to JIC? just want to make sure i got this right before i order
Answer by: Customer Support on Dec 30, 2025, 6:35 AM
That's what it does. One end is M12 x 1.5 female metric with a 24 degree seat per DIN 3901/3902, and the other end is 7/16-20 male JIC with a 37 degree flare. Straight configuration, no angle to it. Comes from Eaton Aeroquip's 15.163 series, catalog number C1AK70 if you need to cross-reference it anywhere.
