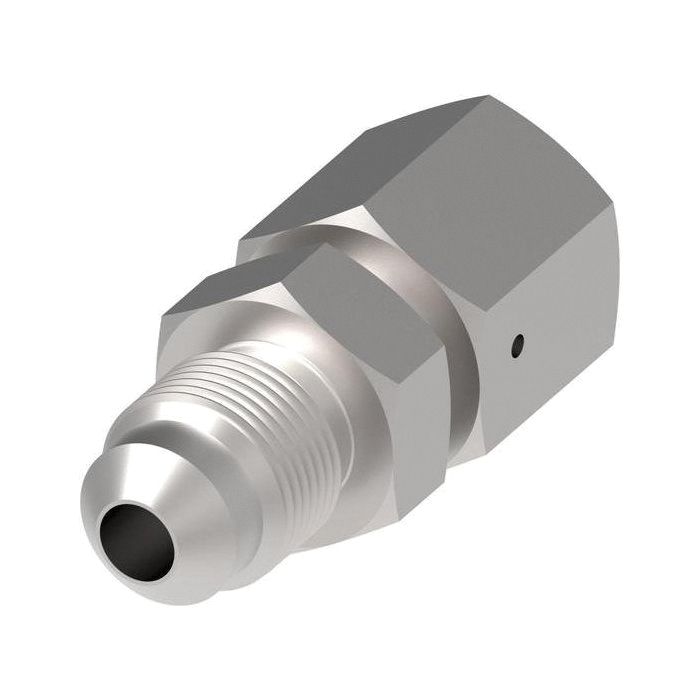

main product photo

Steel Adapter, M16 x 1.5 Female Metric 24deg (DIN 3901/3902 1.Rh) To 9/16-18 Male JIC 37 deg Flare, Straight

Ask A Question

Description & Features

The Steel Adapter M16 x 1.5 Female Metric 24deg (DIN 3901/3902 1.Rh) To 9/16-18 Male JIC 37 deg Flare Straight by Danfoss Power Solutions (II LLC Aeroquip) ensures a seamless transition in various hydraulic instrumentation and chemical processing systems. This robust adapter features precision-crafted threads guaranteeing a reliable connection between components. The adapter's female end supports M16 x 1.5 threads with a 24-degree metric flare while the male end accommodates 9/16-18 JIC 37-degree flare threads providing versatility in complex setups.

The Dura-Kote finish enhances its durability offering excellent corrosion resistance. This adapter is engineered to meet DIN 3901/3902 standards ensuring compatibility and reliability in high-demand environments. The connection size range includes a 0.375 tube ID and 0.5625 tube OD.

Optimize your hydraulic and chemical processing assemblies with this high-quality adapter designed for performance and longevity.

MPN: 15.163-8-6

Supplier Part Number: 15.163-8-6

Specifications

A
1.40
Alternate Part Numbers
Alternate Part Number C1AK71, Alternate Part Number MI-00328068, Alternate Part Number MINO-00015F68794, Alternate Part Number MINO-00925X08406
Application
Other - Hydraulic, instrumentation, and chemical processing systems
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.56
End Size 2
0.38
End Type 1
SAE 37
End Type 2
SAE 37
Finish
DURA-KOTE
Supplier Part Number
15.163-8-6
Thread 1
M16 x 1.5
Thread 2
9/16-18
Thread Sealant
No
Tube ID 4
0.38
Tube O.D.
0.38
Tube O.D.
0.38
Product Weight
0.13 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A Price Action
Steel Adapter, M12 x 1.5 Female Metric 24deg (DIN 3901/3902 1.Rh) To 7/16-20 Male JIC 37 deg Flare, Straight

15.163-4-4 Steel Female DIN3901 To Male JIC Adapter

0.25

M12 x 1.5

7/16-20

1.36

Product Questions & Answers (3)

Question by: Steve C on Jul 7, 2025, 4:08 PM
Will this adapter work to connect a M16 x 1.5 port to a 9/16-18 JIC line?
Answer by: Customer Support on Jul 9, 2025, 6:47 AM
This straight adapter is made to connect a M16 x 1.5 female metric 24deg port to a 9/16-18 male JIC 37 deg flare.
Question by: Roger J on Apr 10, 2025, 7:22 PM
Is this steel adapter gonna fit a standard 9/16-18 JIC connection?
Answer by: Customer Support on Apr 12, 2025, 7:32 AM
Sure thing, this adapter is specifically designed to fit a 9/16-18 male JIC 37-degree flare connection. Just make sure the other end matches your M16 x 1.5 metric setup, and you should be all set.
Question by: Duane E on Apr 21, 2025, 2:12 PM
will this work going from metric hydraulic lines to standard JIC fittings on my loader
Answer by: Customer Support on Apr 23, 2025, 6:45 AM
Perfect match for that conversion. One end takes M16 x 1.5 metric threads with the 24 degree cone seal, other end gives you 9/16-18 JIC male with 37 degree flare. Handles the thread pitch difference and the angle change between metric and JIC systems in one straight adapter.
