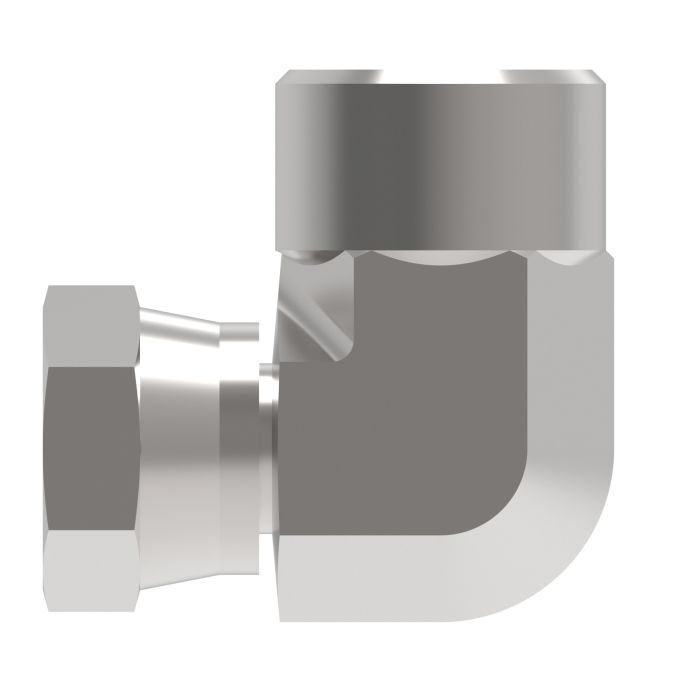

Steel Adapter, 1/4-18 Female NPT Swivel To 1/4-18 Female NPT, 90 deg Elbow

Ask A Question

Description & Features

This steel adapter features a 1/4-18 female NPT swivel to 1/4-18 female NPT connection in a 90-degree elbow configuration. The Eaton Aeroquip steel adapter is suitable for a range of applications.

This adapter is designed for use in marine/military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling applications.

SKU: 2048-4-4S

Supplier Part Number (MPN): 2048-4-4S

Alternate Part Numbers: C1AZ11

Specifications

A
0.78
Alternate Part Numbers
Alternate Part Number C1AZ11
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
0.88
Drop Dimension
1.00
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.25
End Size 2
0.25
End Type 1
NPSM
End Type 2
NPTF
Hex Size 2
0.69
Minimum Working Temperature
-65
Supplier Part Number
2048-4-4S
Thread 1
1/4-18
Thread 2
1/4-18
Thread Sealant
No
Product Weight
0.17 lbs

Related Documents

Similar Products

Model Number Thread 1 Thread 2 A B Price Action
Steel Adapter, 3/4-14 Female NPT Swivel To 3/4-14 Female NPT, 90 deg Elbow

2048-12-12S Steel Female NPT 90 Elbow

3/4-14

3/4-14

1.27

1.36

Steel Adapter, 1-1/4-11-1/2 Female NPT Swivel To 1-1/4-11-1/2 Female NPT, 90 deg Elbow

2048-20-20S Steel Female NPT 90 Elbow

1-1/4-11-1/2

1-1/4-11-1/2

1.75

2

Steel Adapter, 1/4-18 Female NPT Swivel To 1/4-18 Female NPT, 90 deg Elbow

2048-4-4S Steel Female NPT 90 Elbow

1/4-18

1/4-18

0.78

0.88

Steel Adapter, 3/8-18 Female NPT Swivel To 3/8-18 Female NPT, 90 deg Elbow

2048-6-6S Steel Female NPT 90 Elbow

3/8-18

3/8-18

0.94

1.02

Steel Adapter, 1/2-14 Female NPT Swivel To 1/2-14 Female NPT, 90 deg Elbow

2048-8-8S Steel Female NPT 90 Elbow

1/2-14

1/2-14

1.03

1.23

Product Questions & Answers (3)

Question by: Eddie H on Apr 27, 2025, 12:42 PM
This looks like it'd work for hooking up a pressure gauge at a 90-degree angle. Is that right?
Answer by: Customer Support on Apr 29, 2025, 8:21 AM
Yes, that's a common use. This steel adapter has a 90-degree elbow and female NPT threads on both ends to help you hook things up in tight spots.
Question by: Roger M on Mar 24, 2026, 11:14 AM
What all industries is this elbow adapter actually built for? Got a few different use and trying to figure out if one part covers multiple applications.
Answer by: Customer Support on Mar 26, 2026, 6:40 AM
Marine, military, chemical processing, pulp and paper, food and beverage, and offshore drilling are all listed applications for this fitting. That kind of range makes it a solid pick when you're sourcing across multiple environments without wanting to stock a dozen different adapters.
Question by: Roger C on Jan 10, 2026, 2:34 PM
trying to hook up two 1/4 npt female ends but need to turn the line 90 degrees, is that what this fitting does
Answer by: Customer Support on Jan 11, 2026, 4:23 PM
Function-wise, it is a 90 degree elbow adapter with 1/4-18 female NPT on one side and a 1/4-18 female NPT swivel (NPSM internal pipe swivel style) on the other, so it’s meant for making a right-angle connection between two 1/4-18 female threaded ports.
