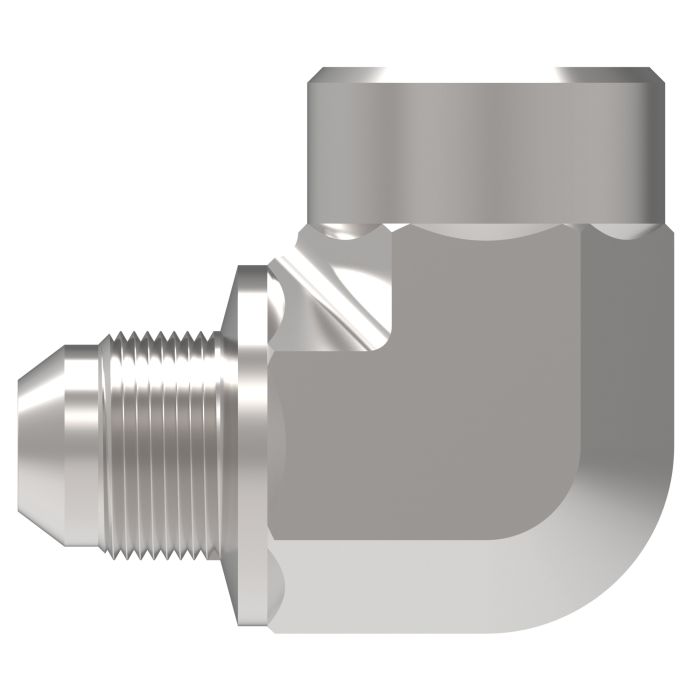

main product photo

Steel Adapter, 3/4-14 Female NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

Ask A Question

Description & Features

This steel adapter features a 3/4-14 female NPT to 1-1/16-12 male JIC 37-degree flare connection and a 90-degree elbow configuration. The Eaton Aeroquip 2025 Series elbow adapter is suitable for diverse applications, including marine and military environments, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling.

With dimensions A and B measuring 1.36 and 1.83 respectively, this adapter, catalog number C1AW47, ensures reliable performance across various hydraulic systems. Refer to the attached fluid compatibility document for detailed information.

SKU: 2025-12-12S

Supplier Part Number (MPN): 2025-12-12S

Alternate Part Numbers: C1AW47, MI-00311410, MINO-00015F60965

Specifications

A
1.36
Alternate Part Numbers
Alternate Part Number C1AW47, Alternate Part Number MI-00311410, Alternate Part Number MINO-00015F60965
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.83
Drop Dimension
1.89
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
0.75
End Type 1
NPTF
End Type 2
SAE 37
Minimum Working Temperature
-65
Supplier Part Number
2025-12-12S
Thread 1
3/4-14
Thread 2
1-1/16-12
Thread Sealant
No
Tube O.D.
0.75
Tube O.D.
0.75
Product Weight
2.46 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 3/4-14 Female NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2025-12-12S Steel Female NPT To Male JIC 90 Elbow

0.75

3/4-14

1-1/16-12

1.36

1.83

Steel Adapter, 1-1/4-11-1/2 Female NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2025-20-20S Steel Female NPT To Male JIC 90 Elbow

1.25

1-1/4-11-1/2

1-5/16-12

1.7

2.33

Steel Adapter, 1/4-18 Female NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2025-4-6S Steel Female NPT To Male JIC 90 Elbow

0.38

1/4-18

9/16-18

0.88

1.09

Steel Adapter, 3/8-18 Female NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2025-6-8S Steel Female NPT To Male JIC 90 Elbow

0.5

3/8-18

3/4-16

1.02

1.42

Steel Adapter, 1-11-1/2 Female NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2025-16-16S Steel Female NPT To Male JIC 90 Elbow

1

1-11-1/2

1-5/16-12

1.62

2.17

Steel Adapter, 1/8-27 Female NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2025-2-4S Steel Female NPT To Male JIC 90 Elbow

0.25

1/8-27

7/16-20

0.66

0.9

Steel Adapter, 1-1/2-11-1/2 Female NPT To 1-7/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2025-24-24S Steel Female NPT To Male JIC 90 Elbow

1.5

1-1/2-11-1/2

1-7/8-12

2.08

2.89

Steel Adapter, 1/4-18 Female NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2025-4-4S Steel Female NPT To Male JIC 90 Elbow

0.25

1/4-18

7/16-20

0.88

0.98

Steel Adapter, 1/4-18 Female NPT To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

2025-4-5S Steel Female NPT To Male JIC 90 Elbow

0.31

1/4-18

1/2-20

0.88

1.01

Steel Adapter, 3/8-18 Female NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2025-6-6S Steel Female NPT To Male JIC 90 Elbow

0.38

3/8-18

9/16-18

1.02

1.11

Steel Adapter, 1/2-14 Female NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2025-8-10S Steel Female NPT To Male JIC 90 Elbow

0.63

1/2-14

7/8-14

1.23

1.64

Steel Adapter, 1/2-14 Female NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2025-8-12S Steel Female NPT To Male JIC 90 Elbow

0.75

1/2-14

1-1/16-12

1.35

1.89

Steel Adapter, 1/2-14 Female NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2025-8-8S Steel Female NPT To Male JIC 90 Elbow

0.5

1/2-14

3/4-16

1.23

1.52

Product Questions & Answers (3)

Question by: Tommy F on Aug 2, 2025, 2:32 PM
trying to hook a 3/4-14 female pipe port to a 1-1/16-12 JIC line, is that what this elbow is for?
Answer by: Customer Support on Aug 3, 2025, 6:55 PM
Built for that exact connection, it adapts a 3/4-14 female NPTF (pipe) end over to a 1-1/16-12 male SAE 37 degree flare (JIC) end, and it does it in a 90 degree elbow style.
Question by: Dustin F on Oct 22, 2025, 9:33 AM
Wondering if this elbow adapter would hold up in a chemical processing plant?
Answer by: Customer Support on Oct 24, 2025, 6:26 AM
Application-wise, yes, this adapter is designed for chemical processing, plus marine/military, pulp and paper, food and beverage, and even off-shore drilling environments.
Question by: Merle T on Sep 19, 2025, 2:00 PM
Got a 3/4 female pipe thread on a hydraulic block and need to turn it 90 degrees out to a JIC line -- does this adapter cover that, or do I need something in between?
Answer by: Customer Support on Sep 20, 2025, 4:27 PM
That's exactly what this fitting handles. One end is 3/4-14 female NPT, the other is 1-1/16-12 male JIC with a 37 degree flare seat, and the body makes a 90 degree turn between them. So if your block has a 3/4 NPT port and your hose or tube end terminates in a female JIC 37 degree swivel, this goes straight in with no intermediate pieces needed.
