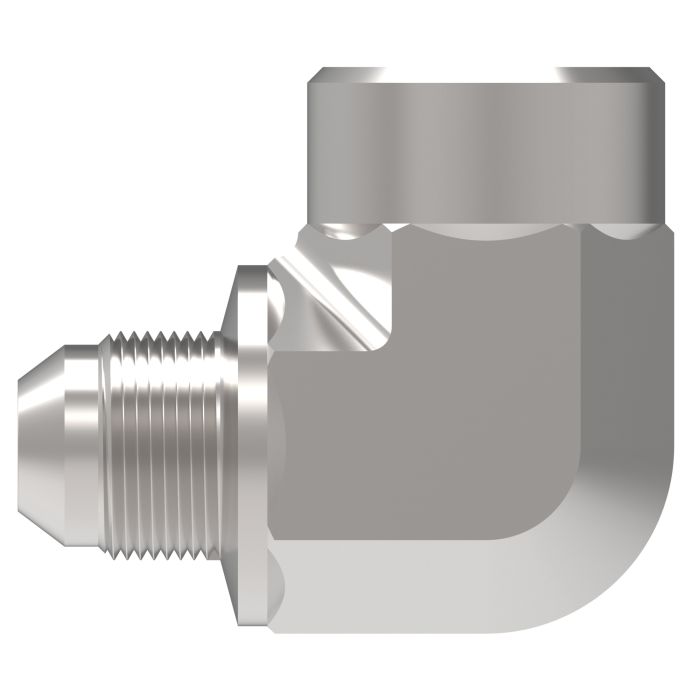

main product photo

Steel Adapter, 1/4-18 Female NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

Ask A Question

Description & Features

Designed for demanding industrial environments, the Steel Adapter, 1/4-18 Female NPT To 7/16-20 Male JIC 37 Deg Flare, 90 Deg Elbow is an Eaton Aeroquip 2025 Series fitting that transitions between female NPTF and male SAE 37-degree flare connections in a compact right-angle configuration. The 90-degree elbow geometry is particularly useful where space constraints or routing requirements make straight adapters impractical.

Suited for use across marine, military, chemical processing, pulp and paper, food and beverage, and offshore drilling applications, this adapter handles the varied fluid compatibility demands common in those industries. With A and B dimensions of 0.88 and 0.98 respectively, it fits into tight assemblies without compromising connection integrity. The steel construction provides reliable performance in high-duty hydraulic circuits where fitting durability is essential.

SKU: 2025-4-4S

Supplier Part Number (MPN): 2025-4-4S

Alternate Part Numbers: C1AW50, MI-00311284, MINO-00015F60945

Specifications

A
0.88
Alternate Part Numbers
Alternate Part Number C1AW50, Alternate Part Number MI-00311284, Alternate Part Number MINO-00015F60945
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
0.98
Drop Dimension
1.22
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
0.25
End Size 2
0.44
End Type 1
NPTF
End Type 2
SAE 37
Minimum Working Temperature
-65
Supplier Part Number
2025-4-4S
Thread 1
1/4-18
Thread 2
7/16-20
Thread Sealant
No
Tube O.D.
0.25
Tube O.D.
0.25
Product Weight
0.14 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 3/4-14 Female NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2025-12-12S Steel Female NPT To Male JIC 90 Elbow

0.75

3/4-14

1-1/16-12

1.36

1.83

Steel Adapter, 1-1/4-11-1/2 Female NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2025-20-20S Steel Female NPT To Male JIC 90 Elbow

1.25

1-1/4-11-1/2

1-5/16-12

1.7

2.33

Steel Adapter, 1/4-18 Female NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2025-4-6S Steel Female NPT To Male JIC 90 Elbow

0.38

1/4-18

9/16-18

0.88

1.09

Steel Adapter, 3/8-18 Female NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2025-6-8S Steel Female NPT To Male JIC 90 Elbow

0.5

3/8-18

3/4-16

1.02

1.42

Steel Adapter, 1-11-1/2 Female NPT To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2025-16-16S Steel Female NPT To Male JIC 90 Elbow

1

1-11-1/2

1-5/16-12

1.62

2.17

Steel Adapter, 1/8-27 Female NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2025-2-4S Steel Female NPT To Male JIC 90 Elbow

0.25

1/8-27

7/16-20

0.66

0.9

Steel Adapter, 1-1/2-11-1/2 Female NPT To 1-7/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2025-24-24S Steel Female NPT To Male JIC 90 Elbow

1.5

1-1/2-11-1/2

1-7/8-12

2.08

2.89

Steel Adapter, 1/4-18 Female NPT To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2025-4-4S Steel Female NPT To Male JIC 90 Elbow

0.25

1/4-18

7/16-20

0.88

0.98

Steel Adapter, 1/4-18 Female NPT To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

2025-4-5S Steel Female NPT To Male JIC 90 Elbow

0.31

1/4-18

1/2-20

0.88

1.01

Steel Adapter, 3/8-18 Female NPT To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2025-6-6S Steel Female NPT To Male JIC 90 Elbow

0.38

3/8-18

9/16-18

1.02

1.11

Steel Adapter, 1/2-14 Female NPT To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2025-8-10S Steel Female NPT To Male JIC 90 Elbow

0.63

1/2-14

7/8-14

1.23

1.64

Steel Adapter, 1/2-14 Female NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2025-8-12S Steel Female NPT To Male JIC 90 Elbow

0.75

1/2-14

1-1/16-12

1.35

1.89

Steel Adapter, 1/2-14 Female NPT To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2025-8-8S Steel Female NPT To Male JIC 90 Elbow

0.5

1/2-14

3/4-16

1.23

1.52

Product Questions & Answers (2)

Question by: Pete M on Jan 31, 2026, 7:30 PM
what industries is this elbow adapter actually built for? seen a lot of generic stuff out there and trying to figure out if this one's meant for serious use
Answer by: Customer Support on Feb 2, 2026, 7:00 PM
Eaton Aeroquip built this for some pretty demanding environments. Listed applications include marine and military, chemical processing, pulp and paper, food and beverage, and offshore drilling. Those aren't light-duty categories, so if your operation falls into any of those, you're looking at hardware that was specified with those conditions in mind.
Question by: Terry R on Aug 27, 2025, 6:58 PM
Will this fitting work with standard JIC connections? Just wanna make sure before I order.
Answer by: Customer Support on Aug 28, 2025, 8:00 PM
This elbow adapter is designed to connect a 1/4-18 female NPT to a 7/16-20 male JIC 37-degree flare fitting.
