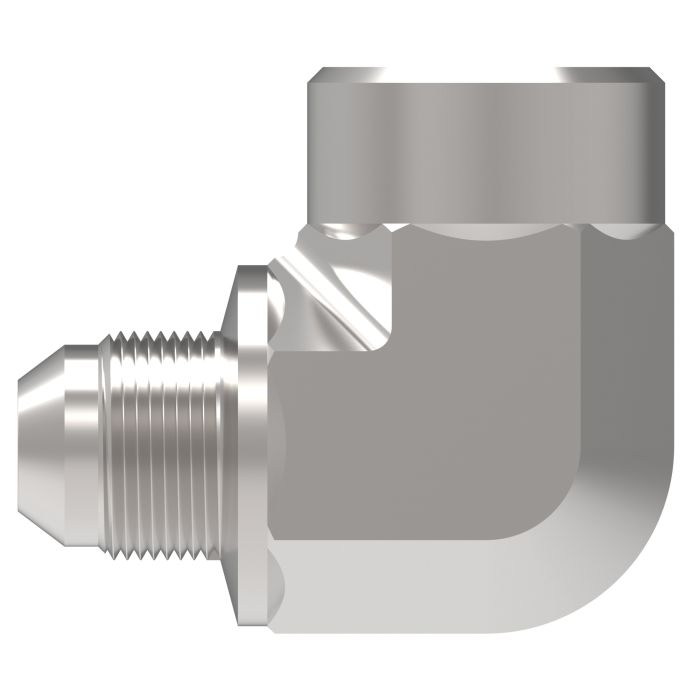

Steel Adapter, 1/2-14 Female NPT To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

Description & Features

Designed for demanding industrial environments, the Steel Adapter, 1/2-14 Female NPT To 1-1/16-12 Male JIC 37 Deg Flare, 90 Deg Elbow is an Eaton Aeroquip 2025 Series fitting that transitions between female NPT and male JIC 37-degree flare connections at a 90-degree angle. The elbow configuration suits installations where straight adapters are impractical due to space constraints or routing requirements.

With dimensional values of 1.35 (A) and 1.89 (B), this steel adapter is suited for use across marine and military equipment, chemical processing systems, pulp and paper industries, food and beverage processing facilities, and offshore drilling applications. Its steel construction and Eaton Aeroquip engineering make it a reliable choice where connection integrity across mixed thread standards is required.

SKU: 2025-8-12S

Supplier Part Number (MPN): 2025-8-12S

Alternate Part Numbers: C1DV56, MI-00311423, MINO-00015F60966

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 1.35 in	b Dimensions 1.89 in	Connection Size 1 3/4 in	Connection Size 2 1/2 in	Connection Type FNPT, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Female NPTF	Dimension Standards SAE 070203/J514	Drop Dimensions 1.89 in	Finish Dura-Kote™	Fitting Type 90 deg Elbow	Material Steel	Material Construction Carbon Steel	Operating Temperature -65 to 400 deg F	Series 2025 Series	Thread Size 1-1/16-12 x 1/2-14

Similar Products

Model Number	Tube O.D.	Thread Size	Thread 2	a Dimensions	b Dimensions
2025-12-12S Steel Female NPT To Male JIC 90 Elbow	0.75	1-1/16-12 x 3/4-14	1-1/16-12	1.36 in	1.83 in
2025-20-20S Steel Female NPT To Male JIC 90 Elbow	1.25	1-1/4-11-1/2, 1-5/8-12	1-5/16-12	1.7 in	2.33 in
2025-4-6S Steel Female NPT To Male JIC 90 Elbow	0.38	1/4-18 x 9/16-18	9/16-18	0.88 in	1.09 in
2025-6-8S Steel Female NPT To Male JIC 90 Elbow	0.5	3/4-16 x 3/8-18	3/4-16	1.02 in	1.42 in
2025-16-16S Steel Female NPT To Male JIC 90 Elbow	1	1-5/16-12 x 1-11-1/2 x 1-5/16-12	1-5/16-12	1.62 in	2.17 in
2025-2-4S Steel Female NPT To Male JIC 90 Elbow	0.25	1/8-27, 7/16-20	7/16-20	0.66 in	0.9 in
2025-24-24S Steel Female NPT To Male JIC 90 Elbow	1.5	1-7/8-12, 1-1/2-11-1/2	1-7/8-12	2.08 in	2.89 in
2025-4-4S Steel Female NPT To Male JIC 90 Elbow	0.25	7/16-20, 1/4-18	7/16-20	0.88 in	0.98 in
2025-4-5S Steel Female NPT To Male JIC 90 Elbow	0.31	1/2-20 x 1/4-18	1/2-20	0.88 in	1.01 in
2025-6-6S Steel Female NPT To Male JIC 90 Elbow	0.38	3/8-18, 9/16-18	9/16-18	1.02 in	1.11 in
2025-8-10S Steel Female NPT To Male JIC 90 Elbow	0.63	1/2-14 x 7/8-14	7/8-14	1.23 in	1.64 in
2025-8-8S Steel Female NPT To Male JIC 90 Elbow	0.5	3/4-16 x 1/2-14	3/4-16	1.23 in	1.52 in

Product Questions & Answers (1)

Question by: Brent F on Jun 4, 2025, 6:57 PM

got a tight spot on a line, is this the 90 elbow that goes from 1/2-14 female npt to a 1-1/16-12 male jic 37 flare?

Answer by: Customer Support on Jun 6, 2025, 10:35 AM

Function-wise, it is a 90 degree elbow adapter that transitions from 1/2-14 female NPTF internal pipe threads to a 1-1/16-12 male JIC 37 degree flare end.
