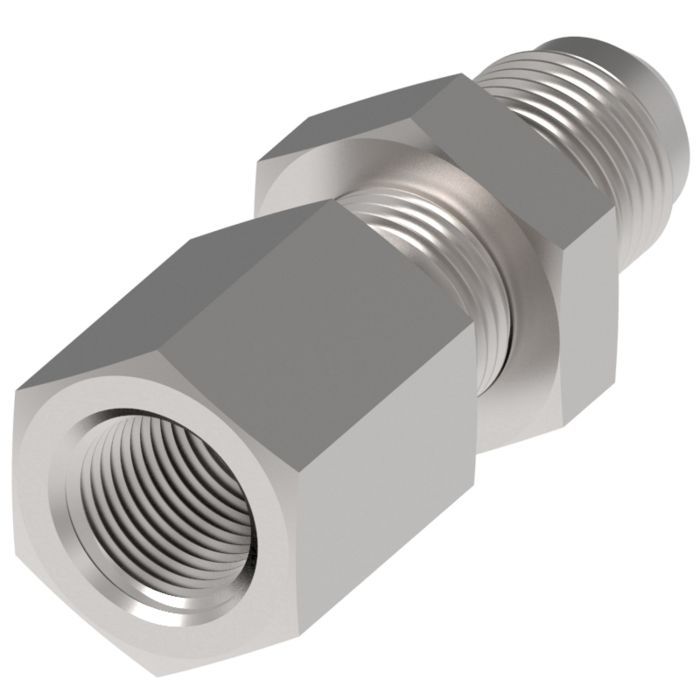

Steel Adapter, 1/2-14 Female NPT To 7/8-14 Male JIC 37 deg Flare, Straight Bulkhead

Description & Features

This Eaton Aeroquip straight bulkhead steel adapter connects dissimilar hydraulic lines. Use this adapter in marine and military applications, as well as chemical, pulp and paper, and food and beverage processing.

This steel adapter features a 1/2-14 female NPT to 7/8-14 male JIC 37-degree flare connection. It is suitable for off-shore drilling applications and performs in temperatures as low as -65 degrees Fahrenheit.

SKU: 2239-8-10S

Supplier Part Number (MPN): 2239-8-10S

Alternate Part Numbers: C1BD17, MI-00314986, MINO-00015F63240

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.84 in	Connection Size 1 1/2 in	Connection Size 2 5/8 in	Connection Type FNPT, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Female NPTF	Dimension Standards SAE 070603/J514	Dimensions 0.63 in L	Finish Dura-Kote™	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Segment Code A	Series 2239 Series	Thread Size 1/2-14 x 7/8-14

Similar Products

Model Number	Tube O.D.	Thread Size	Thread 2	A
2239-12-12S Steel Female NPT To Male JIC Bulkhead	0.75	1-1/16-12 x 3/4-14	1-1/16-12	3.05
2239-2-4S Steel Female NPT To Male JIC Bulkhead	0.25	1/8-27, 7/16-20	7/16-20	2.08
2239-6-8S Steel Female NPT To Male JIC Bulkhead	0.5	3/4-16 x 3/8-18	3/4-16	2.48
2705-04-04 Steel Female NPT To Male JIC Bulkhead	0.25	7/16-20, 1/4-18	7/16-20	2.04
2705-06-06 Steel Female NPT To Male JIC Bulkhead	0.38	3/8-18, 9/16-18	9/16-18	2.19
