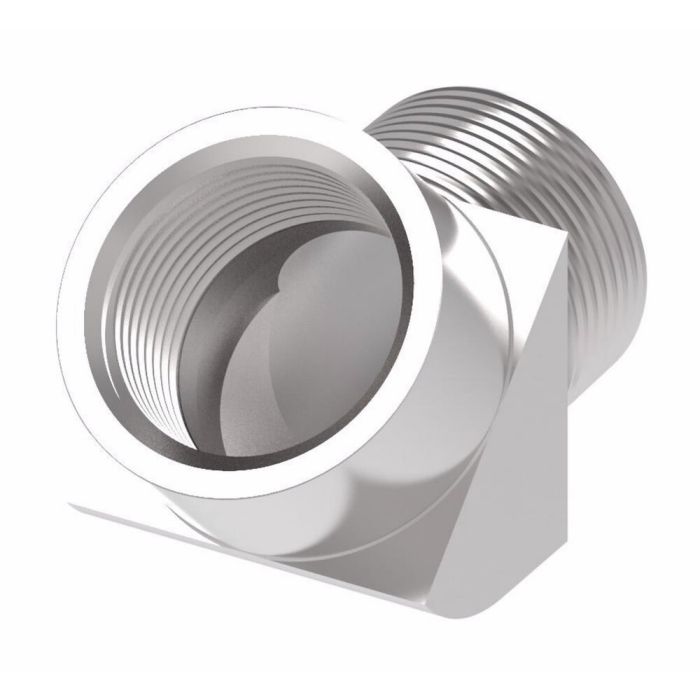

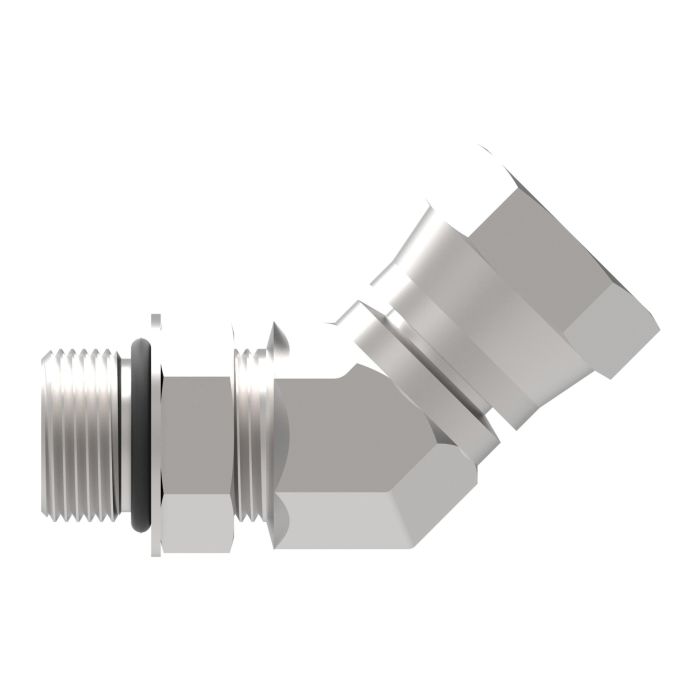

Steel Adapter, 1-11-1/2 Female NPT Swivel To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

Ask A Question

Description & Features

Designed for demanding industrial environments, the Steel Adapter features a 1-11-1/2 Female NPT Swivel to 1-5/16-12 Male SAE O-Ring Boss, ensuring secure and leak-free connections. Its 45-degree elbow configuration provides versatility in complex hydraulic systems, making it ideal for marine, military, chemical processing, pulp and paper, food and beverage, and off-shore drilling applications. Manufactured by Eaton Aeroquip, this adapter guarantees durability and reliability, vital for high-performance settings.

Precision-engineered, this adapter offers a robust solution with dimensions A: 1.26 and B: 1.89, catering to various industrial needs. Its compatibility with a range of fluids, as detailed in the provided document link, further enhances its adaptability. With a catalog number C1AZ81, this product maintains a standard of excellence synonymous with Eaton Aeroquip.

SKU: 2067-16-16S

Supplier Part Number (MPN): 2067-16-16S

Alternate Part Numbers: C1AZ81, MI-00322013, MINO-00015F66162

Specifications

A
1.26
Alternate Part Numbers
Alternate Part Number C1AZ81, Alternate Part Number MI-00322013, Alternate Part Number MINO-00015F66162
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.89
Drop Dimension
1.89
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
1
End Type 1
NPSM
End Type 2
SAE ORB
Hex Size 2
1.50
Minimum Working Temperature
-65
Supplier Part Number
2067-16-16S
Thread 1
1-11-1/2
Thread 2
1-5/16-12
Thread Sealant
No
Product Weight
0.80 lbs

Related Documents

Similar Products

Model Number Thread 1 Thread 2 A B Price Action
Steel Adapter, 1-11-1/2 Female NPT Swivel To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

2067-16-16S Steel Female NPT To Male ORB 45 Elbow

1-11-1/2

1-5/16-12

1.26

1.89

Product Questions & Answers (2)

Question by: Dwight B on Jun 15, 2025, 12:15 PM
Just want to make sure this elbow will work for a hydraulic setup in my boat. Says marine application, but want to double check.
Answer by: Customer Support on Jun 16, 2025, 1:05 PM
You're right to double-check for marine use. This Eaton Aeroquip 2067 series elbow adapter is suitable for marine applications, along with military, chemical processing, pulp and paper, and food and beverage processing.
Question by: Jimmy R on Jan 8, 2026, 11:18 AM
Got a 1" NPT female swivel port on a pump housing and need to tie into a 1-5/16-12 SAE O-ring boss fitting at a 45 degree angle. this the right adapter for that?
Answer by: Customer Support on Jan 9, 2026, 9:10 PM
That's exactly the application this piece is built for. The female end is 1-11/2 NPT swivel, and the male end is 1-5/16-12 SAE O-ring boss straight thread, with a 45 degree elbow geometry between them. The swivel feature on the NPT side also gives you some rotational flexibility during installation, which helps a lot when you're working in a tight spot and need to line things up without stressing the fittings.
