main product photo

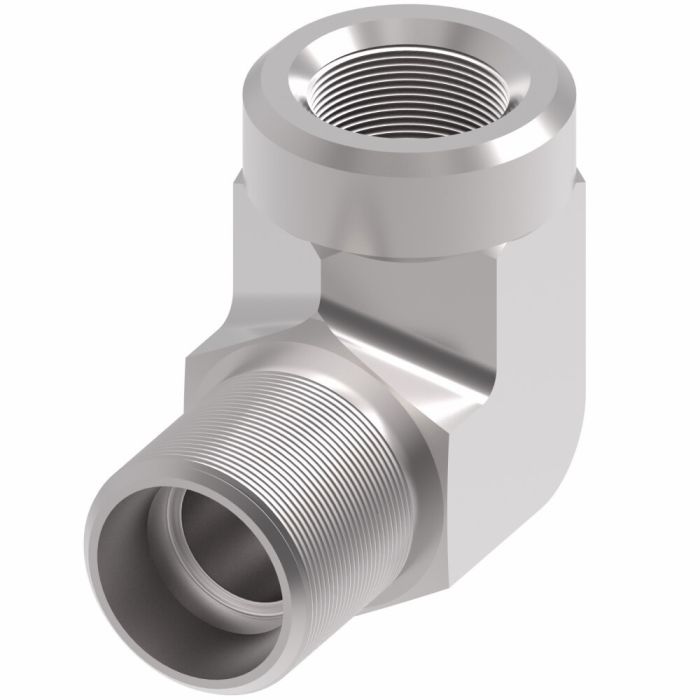

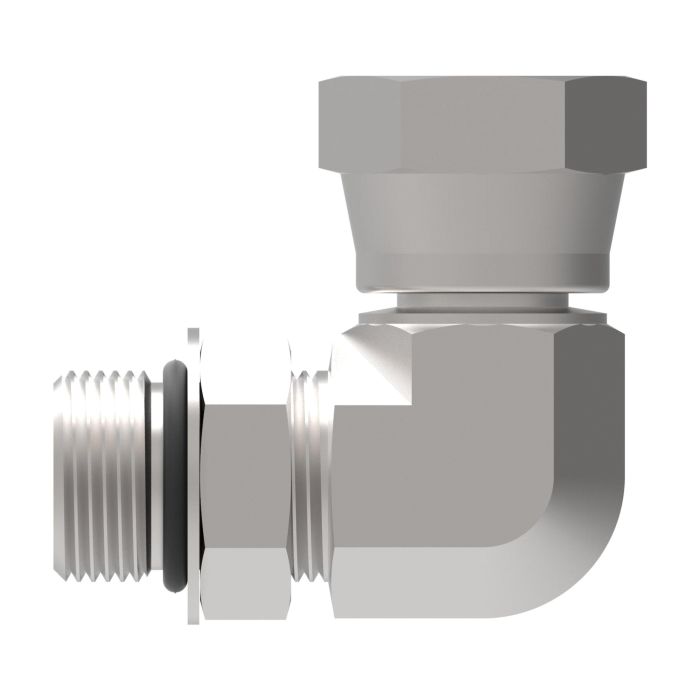

Steel Adapter, 1/2-14 Female NPT Swivel To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

Ask A Question

Description & Features

This steel adapter features a 1/2-14 female NPT swivel connection on one end and a 7/8-14 male SAE O-ring boss (straight thread O-ring) on the other, configured as a 90-degree elbow. The Eaton Aeroquip fitting is well-suited for applications such as marine and military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling.

The 2068 Series elbow adapter offers robust performance and reliability in demanding hydraulic systems. Dimensions include A: 0.97 and B: 1.7. A fluid compatibility document is available for reference.

SKU: 2068-8-10S

Supplier Part Number (MPN): 2068-8-10S

Alternate Part Numbers: C1AZ92, MI-00322076, MINO-00015F66172

Specifications

A
0.97
Alternate Part Numbers
Alternate Part Number C1AZ92, Alternate Part Number MI-00322076, Alternate Part Number MINO-00015F66172, Alternate Part Number MINO-00925X09360
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.70
Drop Dimension
1.67
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
0.50
End Size 2
0.88
End Type 1
NPSM
End Type 2
SAE ORB
Hex Size 2
1
Minimum Working Temperature
-65
Supplier Part Number
2068-8-10S
Thread 1
1/2-14
Thread 2
7/8-14
Thread Sealant
No
Product Weight
0.36 lbs

Related Documents

Similar Products

Model Number Thread 1 Thread 2 A B Price Action
Steel Adapter, 1/4-18 Female NPT Swivel To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

2068-4-4S Steel Female NPT To Male ORB 90 Elbow

1/4-18

7/16-20

0.68

1.05

Steel Adapter, 3/4-14 Female NPT Swivel To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

2068-12-10S Steel Female NPT To Male ORB 90 Elbow

3/4-14

7/8-14

1.09

1.7

Steel Adapter, 3/4-14 Female NPT Swivel To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

2068-12-12S Steel Female NPT To Male ORB 90 Elbow

3/4-14

1-1/16-12

1.15

1.94

Steel Adapter, 1-11-1/2 Female NPT Swivel To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

2068-16-16S Steel Female NPT To Male ORB 90 Elbow

1-11-1/2

1-5/16-12

1.44

2.05

Steel Adapter, 1/4-18 Female NPT Swivel To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

2068-4-6S Steel Female NPT To Male ORB 90 Elbow

1/4-18

9/16-18

0.73

1.25

Steel Adapter, 3/8-18 Female NPT Swivel To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

2068-6-6S Steel Female NPT To Male ORB 90 Elbow

3/8-18

9/16-18

0.83

1.25

Steel Adapter, 3/8-18 Female NPT Swivel To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

2068-6-8S Steel Female NPT To Male ORB 90 Elbow

3/8-18

3/4-16

0.91

1.45

Steel Adapter, 1/2-14 Female NPT Swivel To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

2068-8-10S Steel Female NPT To Male ORB 90 Elbow

1/2-14

7/8-14

0.97

1.7

Steel Adapter, 1/2-14 Female NPT Swivel To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

2068-8-8S Steel Female NPT To Male ORB 90 Elbow

1/2-14

3/4-16

0.91

1.45

Steel Adapter, 1/2-14 Female NPT Swivel To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6901-12-08-NWO Steel Female NPT To Male ORB 90 Elbow

1/2-14

1-1/16-12

1.92

Product Questions & Answers (1)

Question by: Harvey W on Apr 11, 2025, 4:23 PM
what industries is this adapter actually used in, like is it just for hydraulics or does it go broader than that
Answer by: Customer Support on Apr 12, 2025, 8:13 PM
Broader than just hydraulics, for sure. This fitting sees real use across marine and military equipment, chemical processing lines, pulp and paper facilities, food and beverage processing, and offshore drilling use. The 90 degree elbow configuration makes it practical anywhere you need to redirect flow in a tight space without straining the hose or tubing running off it.
