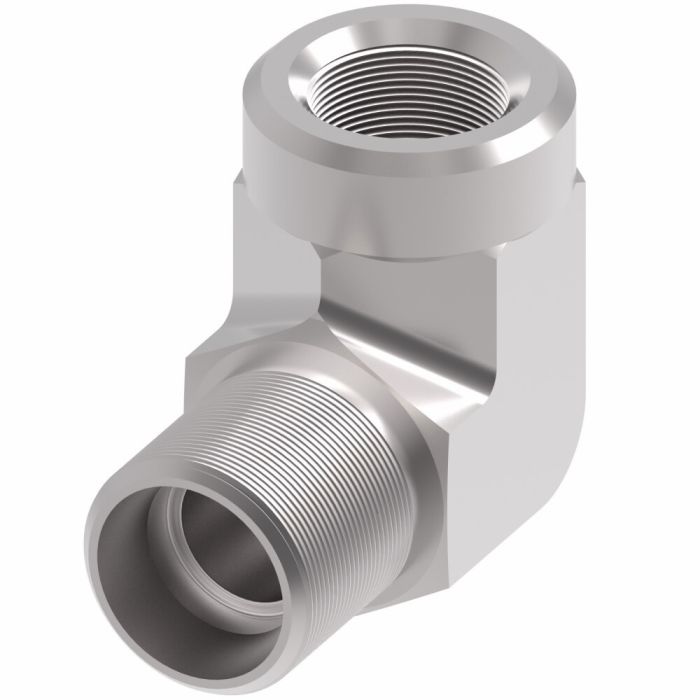

main product photo

Steel Adapter, 3/4-14 Female NPT To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

Ask A Question

Description & Features

Manufactured from steel and rated for demanding industrial environments, this 90-degree elbow adapter connects 3/4-14 Female NPT to 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) ports. Part of the Eaton Aeroquip 206801 Series, it is designed for use in marine, military, chemical processing, pulp and paper, food and beverage, and offshore drilling applications.

The Steel Adapter, 3/4-14 Female NPT To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow features an A dimension of 1.36 and a B dimension of 2.04, making it a compact and reliable solution for routing hydraulic lines at a right angle between NPT and SAE ORB port configurations.

SKU: 206801-12-12S

Supplier Part Number (MPN): 206801-12-12S

Alternate Part Numbers: C1AZ94, MI-00320479, MINO-00015F65873

Specifications

A
1.36
Alternate Part Numbers
Alternate Part Number C1AZ94, Alternate Part Number MI-00320479, Alternate Part Number MINO-00015F65873, Alternate Part Number MINO-00925X09340
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
2.04
Drop Dimension
2.17
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
0.75
End Type 1
NPTF
End Type 2
SAE ORB
Hex Size 2
1.25
Minimum Working Temperature
-65
Supplier Part Number
206801-12-12S
Thread 1
3/4-14
Thread 2
1-1/16-12
Thread Sealant
No
Product Weight
0.72 lbs

Related Documents

Similar Products

Model Number Thread 1 Thread 2 A B Price Action
Steel Adapter, 1/2-14 Female NPT To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

206801-8-8S Steel Female NPT To Male ORB 90 Elbow

1/2-14

3/4-16

1.23

1.73

Steel Adapter, 3/4-14 Female NPT To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

206801-12-12S Steel Female NPT To Male ORB 90 Elbow

3/4-14

1-1/16-12

1.36

2.04

Steel Adapter, 3/8-18 Female NPT To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

206801-6-8S Steel Female NPT To Male ORB 90 Elbow

3/8-18

3/4-16

1.02

1.46

Steel Adapter, 1/4-18 Female NPT To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6805-04-04-NWO Steel Female NPT To Male ORB 90 Elbow

1/4-18

7/16-20

0.87

1.16

Steel Adapter, 1/4-18 Female NPT To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6805-06-04-NWO Steel Female NPT To Male ORB 90 Elbow

1/4-18

9/16-18

0.88

1.31

Steel Adapter, 1/2-14 Female NPT To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6805-10-08-NWO Steel Female NPT To Male ORB 90 Elbow

1/2-14

7/8-14

1.23

1.8

Steel Adapter, 1/2-14 Female NPT To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6805-12-08-NWO Steel Female NPT To Male ORB 90 Elbow

1/2-14

1-1/16-12

1.24

1.94

Steel Adapter, 1-1/4-11-1/2 Female NPT To 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6805-20-20-NWO Steel Female NPT To Male ORB 90 Elbow

1-1/4-11-1/2

1-5/8-12

1.7

2.38

Product Questions & Answers (3)

Question by: Sherry R on May 5, 2025, 8:58 PM
Will this elbow adapter work alright for connecting a female NPT to a male SAE O-ring?
Answer by: Customer Support on May 7, 2025, 8:51 PM
Correct, this adapter is specifically designed for connecting a 3/4-14 female NPT to a 1-1/16-12 male SAE O-ring boss.
Question by: Gene M on Mar 29, 2025, 12:34 PM
Got a port on my hydraulic manifold that's 1-1/16-12 SAE O-ring boss and I need to run a 3/4 NPT line off it at a 90. This the right adapter for that?
Answer by: Customer Support on Mar 31, 2025, 8:49 AM
That's what this one does. The male end threads into your SAE O-ring boss port at 1-1/16-12 straight thread, and the female NPT side accepts your 3/4-14 pipe thread fitting. The 90 degree bend lets you change direction right at the port, which saves a lot of grief when you're working in tight quarters or trying to avoid routing a line through something awkward.
Question by: Ricky A on Feb 6, 2026, 7:22 AM
trying to hook a 3/4-14 female NPT line into a 1-1/16-12 SAE o-ring boss port, is that what this elbow adapter is for?
Answer by: Customer Support on Feb 7, 2026, 6:47 PM
Built for exactly that thread change, it has a 3/4-14 female NPTF end on one side and a 1-1/16-12 male SAE O-Ring Boss (straight thread O-ring) on the other, formed as a 90 degree elbow.
