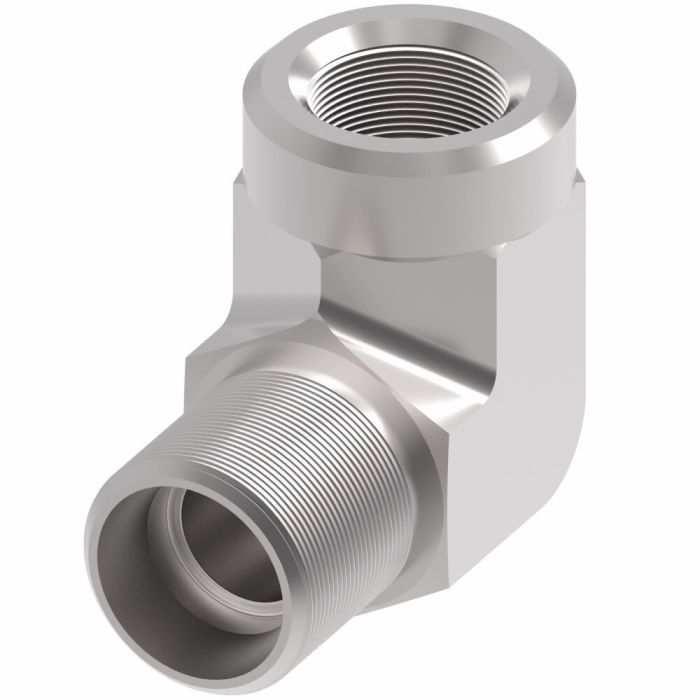

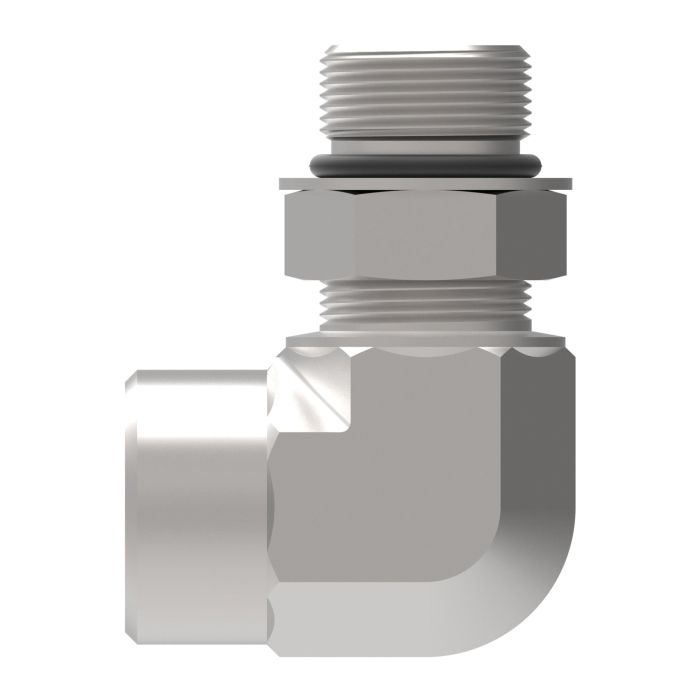

main product photo

Steel Adapter, 3/8-18 Female NPT To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

Ask A Question

Description & Features

Rated for demanding industrial environments, the Steel Adapter, 3/8-18 Female NPT To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow is an Eaton Aeroquip 206801 Series fitting designed to transition between female NPT and male SAE O-Ring Boss connections at a 90-degree angle. The straight thread O-ring sealing design provides reliable leak resistance, making it well suited for hydraulic systems where connection integrity is critical.

With catalog number C1AZ95, this adapter serves a broad range of industries including marine and military, chemical processing, pulp and paper, food and beverage processing, and off-shore drilling. The steel construction supports durability across varied fluid media and operating conditions. Dimension A measures 1.02 and dimension B measures 1.46, supporting compact routing in space-constrained assemblies.

SKU: 206801-6-8S

Supplier Part Number (MPN): 206801-6-8S

Alternate Part Numbers: C1AZ95, FMC118-2672-001, MI-00354572, MINO-00015F88759

Specifications

A
1.02
Alternate Part Numbers
Alternate Part Number C1AZ95, Alternate Part Number FMC118-2672-001, Alternate Part Number MI-00354572, Alternate Part Number MINO-00015F88759
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.46
Drop Dimension
1.62
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
0.38
End Size 2
0.75
End Type 1
NPTF
End Type 2
SAE ORB
Hex Size 2
0.87
Minimum Working Temperature
-65
Supplier Part Number
206801-6-8S
Thread 1
3/8-18
Thread 2
3/4-16
Thread Sealant
No
Product Weight
0.28 lbs

Related Documents

Similar Products

Model Number Thread 1 Thread 2 A B Price Action
Steel Adapter, 1/2-14 Female NPT To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

206801-8-8S Steel Female NPT To Male ORB 90 Elbow

1/2-14

3/4-16

1.23

1.73

Steel Adapter, 3/4-14 Female NPT To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

206801-12-12S Steel Female NPT To Male ORB 90 Elbow

3/4-14

1-1/16-12

1.36

2.04

Steel Adapter, 3/8-18 Female NPT To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

206801-6-8S Steel Female NPT To Male ORB 90 Elbow

3/8-18

3/4-16

1.02

1.46

Steel Adapter, 1/4-18 Female NPT To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6805-04-04-NWO Steel Female NPT To Male ORB 90 Elbow

1/4-18

7/16-20

0.87

1.16

Steel Adapter, 1/4-18 Female NPT To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6805-06-04-NWO Steel Female NPT To Male ORB 90 Elbow

1/4-18

9/16-18

0.88

1.31

Steel Adapter, 1/2-14 Female NPT To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6805-10-08-NWO Steel Female NPT To Male ORB 90 Elbow

1/2-14

7/8-14

1.23

1.8

Steel Adapter, 1/2-14 Female NPT To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6805-12-08-NWO Steel Female NPT To Male ORB 90 Elbow

1/2-14

1-1/16-12

1.24

1.94

Steel Adapter, 1-1/4-11-1/2 Female NPT To 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6805-20-20-NWO Steel Female NPT To Male ORB 90 Elbow

1-1/4-11-1/2

1-5/8-12

1.7

2.38

Product Questions & Answers (2)

Question by: Gary K on Jul 22, 2025, 2:35 PM
trying to hook a 3/8-18 female npt line into a 3/4-16 sae o-ring boss port, is this the right elbow for that?
Answer by: Customer Support on Jul 23, 2025, 6:02 PM
For that connection, you’re on the right track. This adapter is a 90 degree elbow with a 3/8-18 female NPTF end on one side and a 3/4-16 male SAE O-Ring Boss (straight thread O-ring) end on the other.
Question by: Wes C on Dec 29, 2025, 7:18 PM
Got a port on my hydraulic manifold that's 3/4-16 SAE O-ring boss and I need to run a line out at a right angle with a 3/8 NPT female fitting on the hose end. This adapter gonna work for that?
Answer by: Customer Support on Dec 31, 2025, 6:51 AM
That's exactly the configuration this adapter is built for. One end is a 3/4-16 male SAE straight thread O-ring boss, which threads into your manifold port, and the other end is a 3/8-18 female NPT to accept your hose fitting. The 90-degree elbow gives you that right-angle turn you're after, so fluid routing stays clean without bending your line or adding extra fittings.
