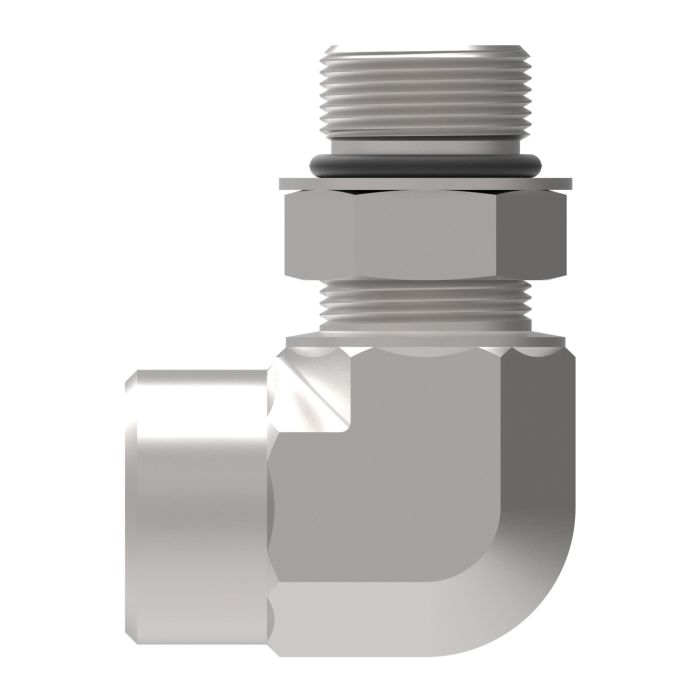

Steel Adapter, 1/2-14 Female NPT To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

Ask A Question

Description & Features

This steel adapter is part of the Danfoss / Eaton 206801 series and features a 90-degree elbow design. Constructed for demanding applications, this adapter is suitable for marine/military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling environments.

The adapter connects a 1/2-14 female NPT to a 3/4-16 male SAE O-Ring Boss (Straight Thread O-Ring). It is designed to function in temperatures as low as -65 degrees Fahrenheit. The hex size 2 measures 0.87 inches, and it features a drop dimension of 1.7300.

SKU: 206801-8-8S

Supplier Part Number (MPN): 206801-8-8S

Alternate Part Numbers: C1DV73, MI-00320472, MINO-00015F65871

Specifications

A
1.23
Alternate Part Numbers
Alternate Part Number C1DV73, Alternate Part Number MI-00320472, Alternate Part Number MINO-00015F65871, Alternate Part Number MINO-00925X09345
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.73
Drop Dimension
1.73
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
0.50
End Size 2
0.75
End Type 1
NPTF
End Type 2
SAE ORB
Hex Size 2
0.87
Minimum Working Temperature
-65
Seal Part if Included
22617-8
Supplier Part Number
206801-8-8S
Thread 1
1/2-14
Thread 2
3/4-16
Thread Sealant
No
Product Weight
2.19 lbs

Related Documents

Similar Products

Model Number Thread 1 Thread 2 A B Price Action
Steel Adapter, 1/2-14 Female NPT To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

206801-8-8S Steel Female NPT To Male ORB 90 Elbow

1/2-14

3/4-16

1.23

1.73

Steel Adapter, 3/4-14 Female NPT To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

206801-12-12S Steel Female NPT To Male ORB 90 Elbow

3/4-14

1-1/16-12

1.36

2.04

Steel Adapter, 3/8-18 Female NPT To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

206801-6-8S Steel Female NPT To Male ORB 90 Elbow

3/8-18

3/4-16

1.02

1.46

Steel Adapter, 1/4-18 Female NPT To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6805-04-04-NWO Steel Female NPT To Male ORB 90 Elbow

1/4-18

7/16-20

0.87

1.16

Steel Adapter, 1/4-18 Female NPT To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6805-06-04-NWO Steel Female NPT To Male ORB 90 Elbow

1/4-18

9/16-18

0.88

1.31

Steel Adapter, 1/2-14 Female NPT To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6805-10-08-NWO Steel Female NPT To Male ORB 90 Elbow

1/2-14

7/8-14

1.23

1.8

Steel Adapter, 1/2-14 Female NPT To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6805-12-08-NWO Steel Female NPT To Male ORB 90 Elbow

1/2-14

1-1/16-12

1.24

1.94

Steel Adapter, 1-1/4-11-1/2 Female NPT To 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6805-20-20-NWO Steel Female NPT To Male ORB 90 Elbow

1-1/4-11-1/2

1-5/8-12

1.7

2.38

Product Questions & Answers (2)

Question by: Cheryl F on May 18, 2025, 4:52 PM
trying to hook a 1/2-14 female npt line into a 3/4-16 ORB port, is this the right elbow for that?
Answer by: Customer Support on May 19, 2025, 5:51 PM
For that thread combo, it matches. One end is 1/2-14 female NPTF and the other end is 3/4-16 male SAE O-Ring Boss, and it’s a 90 degree elbow adapter.
Question by: Rick T on Sep 5, 2025, 5:11 PM
got a tight spot on a line, is this the 90 degree elbow that goes from 1/2-14 female npt over to 3/4-16 male sae o-ring boss?
Answer by: Customer Support on Sep 7, 2025, 8:26 AM
For fitment, the ends on this adapter are 1/2-14 Female NPTF on one side and 3/4-16 Male SAE O-Ring Boss (straight thread O-ring) on the other, built as a 90 degree elbow.
