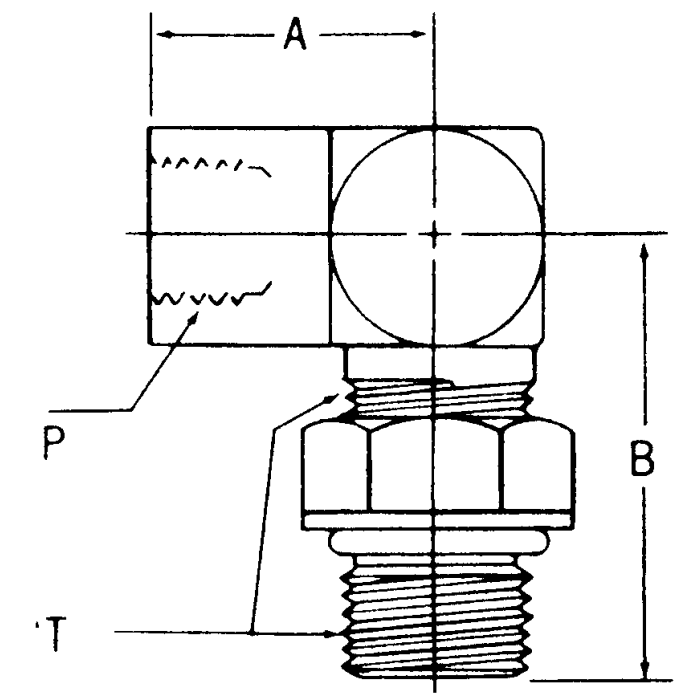

main product photo

Steel Adapter, 1/2-14 Female NPT To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

Ask A Question

Description & Features

Manufactured by Brennan Industries, this 90-degree elbow adapter connects a 1/2-14 Female NPT port to a 7/8-14 Male SAE O-Ring Boss (straight thread) fitting. The male SAE O-Ring Boss end provides a reliable, leak-resistant seal suited to hydraulic systems operating under pressure. Constructed from steel, this adapter is built to handle the mechanical and thermal demands common in industrial hydraulic circuits.

The Steel Adapter, 1/2-14 Female NPT To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow transitions between NPT and SAE ORB thread standards while routing lines at a right angle, useful where space constraints require a directional change in line routing. No thread sealant is required on the O-Ring Boss end, as the seal is achieved mechanically via the O-ring. Catalog number C1DZ15 applies to this part.

SKU: 6805-10-08-NWO

Supplier Part Number (MPN): 6805-10-08-NWO-FG

Alternate Part Numbers: 6805-10-08, A206801-8-10S, C1DZ15, MI-08579765, MINO-00028X08217

Specifications

A
1.23
Alternate Part Numbers
Alternate Part Number 6805-10-08, Alternate Part Number 6805-10-08-NWO-FG, Alternate Part Number A206801-8-10S, Alternate Part Number C1DZ15, Alternate Part Number MI-08579765, Alternate Part Number MINO-00028X08217
B
1.80
Brand
Brennan Industries Inc
Brand
Brennan Industries
Pack Size
1.00
UOM
EA
Supplier Part Number
6805-10-08-NWO-FG
Thread 1
1/2-14
Thread 2
7/8-14
Thread Sealant
No
Product Weight
0.47 lbs

Similar Products

Model Number Thread 1 Thread 2 A B Price Action
Steel Adapter, 1/2-14 Female NPT To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

206801-8-8S Steel Female NPT To Male ORB 90 Elbow

1/2-14

3/4-16

1.23

1.73

Steel Adapter, 3/4-14 Female NPT To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

206801-12-12S Steel Female NPT To Male ORB 90 Elbow

3/4-14

1-1/16-12

1.36

2.04

Steel Adapter, 3/8-18 Female NPT To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

206801-6-8S Steel Female NPT To Male ORB 90 Elbow

3/8-18

3/4-16

1.02

1.46

Steel Adapter, 1/4-18 Female NPT To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6805-04-04-NWO Steel Female NPT To Male ORB 90 Elbow

1/4-18

7/16-20

0.87

1.16

Steel Adapter, 1/4-18 Female NPT To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6805-06-04-NWO Steel Female NPT To Male ORB 90 Elbow

1/4-18

9/16-18

0.88

1.31

Steel Adapter, 1/2-14 Female NPT To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6805-10-08-NWO Steel Female NPT To Male ORB 90 Elbow

1/2-14

7/8-14

1.23

1.8

Steel Adapter, 1/2-14 Female NPT To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6805-12-08-NWO Steel Female NPT To Male ORB 90 Elbow

1/2-14

1-1/16-12

1.24

1.94

Steel Adapter, 1-1/4-11-1/2 Female NPT To 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

6805-20-20-NWO Steel Female NPT To Male ORB 90 Elbow

1-1/4-11-1/2

1-5/8-12

1.7

2.38

Product Questions & Answers (1)

Question by: Patty J on Feb 2, 2026, 11:42 AM
got a 1/2 NPT female port on a pump housing and need to swing it 90 degrees over to a SAE straight thread fitting, this the right piece for that?
Answer by: Customer Support on Feb 4, 2026, 9:43 AM
That's what this adapter is built for. One end is 1/2-14 female NPT, the other is 7/8-14 male SAE O-Ring Boss, and the 90 degree elbow lets you redirect the line right at the connection point. The O-ring boss end seals at the thread engagement, so as long as your port matches 7/8-14 MORB, you're in good shape.
