Steel Adapter, 1-1/4-11-1/2 Female NPT To 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

Description & Features

Manufactured by Brennan Industries, this 90-degree elbow adapter connects a 1-1/4-11-1/2 female NPT port to a 1-5/8-12 male SAE O-Ring Boss (straight thread O-ring) fitting in applications where a right-angle transition between thread types is required. The steel construction provides reliable performance in hydraulic lines operating under pressure, and the SAE O-Ring Boss end delivers a leak-resistant seal without the need for thread sealant.

The Steel Adapter, 1-1/4-11-1/2 Female NPT To 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow is cataloged under Brennan Industries' Pipe to Straight Thread O-Ring Adapters line, catalog number C1DZ20. It is suited for use in hydraulic systems requiring a directional change at the connection point between NPT and SAE ORB ported components.

SKU: 6805-20-20-NWO

Supplier Part Number (MPN): 6805-20-20-NWO-FG

Specifications

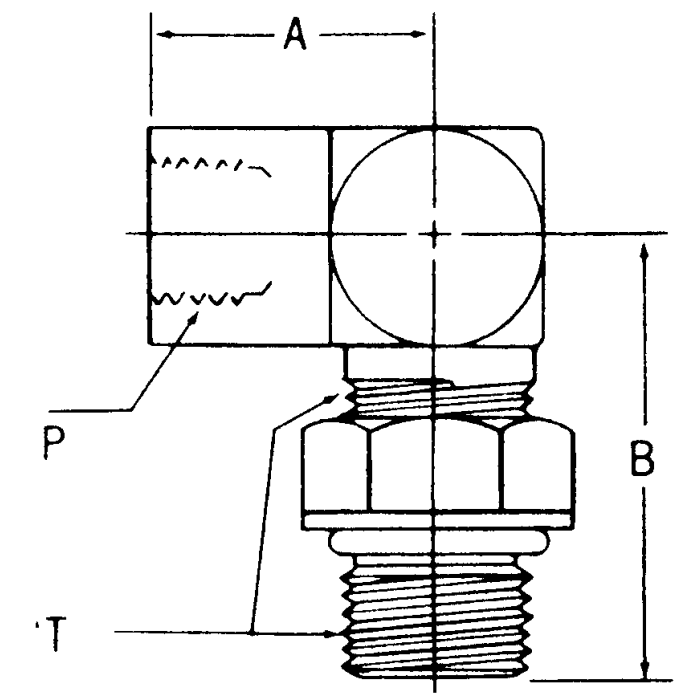

A 1.70	B 2.38	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6805-20-20	Thread 1 1-1/4-11-1/2	Thread 2 1-5/8-12	Thread Sealant No	Product Weight 1.73 lbs

Similar Products

Model Number	Thread 1	Thread 2	A	B
206801-8-8S Steel Female NPT To Male ORB 90 Elbow	1/2-14	3/4-16	1.23	1.73
206801-12-12S Steel Female NPT To Male ORB 90 Elbow	3/4-14	1-1/16-12	1.36	2.04
206801-6-8S Steel Female NPT To Male ORB 90 Elbow	3/8-18	3/4-16	1.02	1.46
6805-04-04-NWO Steel Female NPT To Male ORB 90 Elbow	1/4-18	7/16-20	0.87	1.16
6805-06-04-NWO Steel Female NPT To Male ORB 90 Elbow	1/4-18	9/16-18	0.88	1.31
6805-10-08-NWO Steel Female NPT To Male ORB 90 Elbow	1/2-14	7/8-14	1.23	1.8
6805-12-08-NWO Steel Female NPT To Male ORB 90 Elbow	1/2-14	1-1/16-12	1.24	1.94
6805-20-20-NWO Steel Female NPT To Male ORB 90 Elbow	1-1/4-11-1/2	1-5/8-12	1.7	2.38
