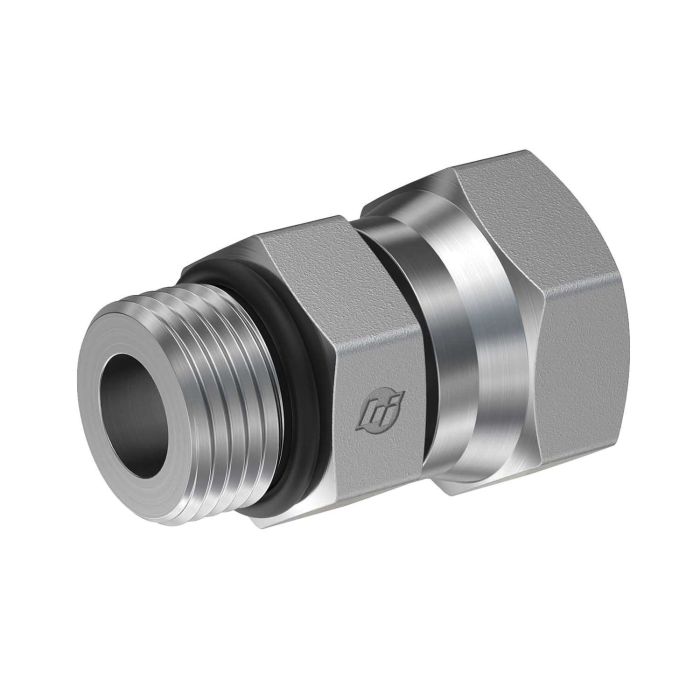

Steel Adapter, 1/4-18 Female NPT Swivel To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

Ask A Question

Description & Features

The BRENNAN INDUSTRIES INC Steel Adapter offers a reliable connection for hydraulic applications. Featuring a 1/4-18 female NPT swivel and a 3/4-16 male SAE O-Ring Boss this adapter ensures a secure fit and optimal performance.

Professionally designed to meet industry standards this straight thread O-ring adapter is manufactured from durable steel offering robustness and longevity even in demanding environments. This product is especially suitable for applications requiring a non-thread sealant connection maintaining integrity under varied pressure conditions.

For catalogue reference the product can be found under C1DZ56.

Supplier Part Number: 6900-08-04-O

MPN: 6900-08-04-O

Specifications

Brand
BRENNAN
a Dimensions
1.22 in
Connection Size 1
1/2 in
Connection Size 2
1/4 in
Connection Type
FNPSM Swivel, Male SAE ORB
Connection Type 1
Male SAE ORB
Connection Type 2
FNPSM Swivel
Dimension Standards
SAE J1926, SAE J514
Dimensions
1.36 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
11/16 x 7/8 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
6900-O Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16, 1/4-18

Similar Products

Model Number Thread Size Thread 2 a Dimensions Price Action
Steel Adapter, 1-11-1/2 Female NPT Swivel To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

2066-16-16S Steel Female NPT To Male ORB Adapter

1-5/16-12 x 1-11-1/2 x 1-5/16-12

1-5/16-12

1.59 in

Steel Adapter, 1/4-18 Female NPT Swivel To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

2066-4-4S Steel Female NPT To Male ORB Adapter

7/16-20, 1/4-18

7/16-20

1.05 in

Steel Adapter, 3/4-14 Female NPT Swivel To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

2066-12-12S Steel Female NPT To Male ORB Adapter

1-1/16-12 x 3/4-14

1-1/16-12

1.58 in

Steel Adapter, 1/4-18 Female NPT Swivel To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

2066-4-6S Steel Female NPT To Male ORB Adapter

1/4-18 x 9/16-18

9/16-18

1.14 in

Steel Adapter, 3/8-18 Female NPT Swivel To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

2066-6-6S Steel Female NPT To Male ORB Adapter

3/8-18, 9/16-18

9/16-18

1.14 in

Steel Adapter, 3/8-18 Female NPT Swivel To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

2066-6-8S Steel Female NPT To Male ORB Adapter

3/4-16 x 3/8-18

3/4-16

1.19 in

Steel Adapter, 1/2-14 Female NPT Swivel To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

2066-8-10S Steel Female NPT To Male ORB Adapter

1/2-14 x 7/8-14

7/8-14

1.3 in

Steel Adapter, 1/2-14 Female NPT Swivel To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

2066-8-8S Steel Female NPT To Male ORB Adapter

3/4-16 x 1/2-14

3/4-16

1.23 in

Steel Adapter, 1/2-14 Female NPT Swivel To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

6900-06-08-O Steel Female NPT To Male ORB Adapter

1/2-14 x 9/16-18

9/16-18

1.23 in

Product Questions & Answers (1)

Question by: Earl F on May 11, 2025, 2:56 PM
Got a line running 1/4 NPT female and I need to tie into a 3/4-16 male ORB port. This the right piece for that?
Answer by: Customer Support on May 13, 2025, 6:02 AM
That's what this adapter is built for. One end is a 1/4-18 female NPT swivel, the other is a 3/4-16 male SAE O-Ring Boss. The swivel on the NPT side gives you some wiggle room when you're making up the connection, which helps a lot in tight quarters where you can't rotate the line freely.
