Steel Adapters, Female JIC 37 deg Flare Swivel To Male JIC 37 deg Flare, 45 deg Elbow

Description & Features

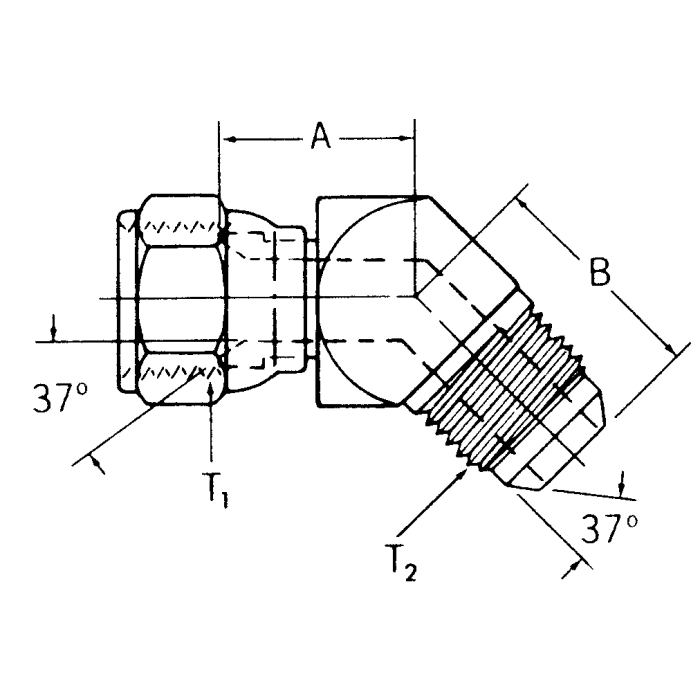

Model Number	Tube O.D.	Thread 1	Thread 2	A	B
2070-10-10S Steel Female To Male JIC 45 Elbow	0.63	7/8-14	7/8-14	0.75	1.11
2070-12-12S Steel Female To Male JIC 45 Elbow	0.75	1-1/16-12	1-1/16-12	0.71	1.5
2070-16-16S Steel Female To Male JIC 45 Elbow	1	1-5/16-12	1-5/16-12	0.94	1.47
2070-20-20S Steel Female To Male JIC 45 Elbow	1.25	1-5/8-12	1-5/8-12
2070-4-4S Steel Female To Male JIC 45 Elbow	0.25	7/16-20	7/16-20	0.5	0.8
2070-6-6S Steel Female To Male JIC 45 Elbow	0.38	9/16-18	9/16-18	0.61	0.83
2070-8-8S Steel Female To Male JIC 45 Elbow	0.5	3/4-16	3/4-16	0.82	0.98
