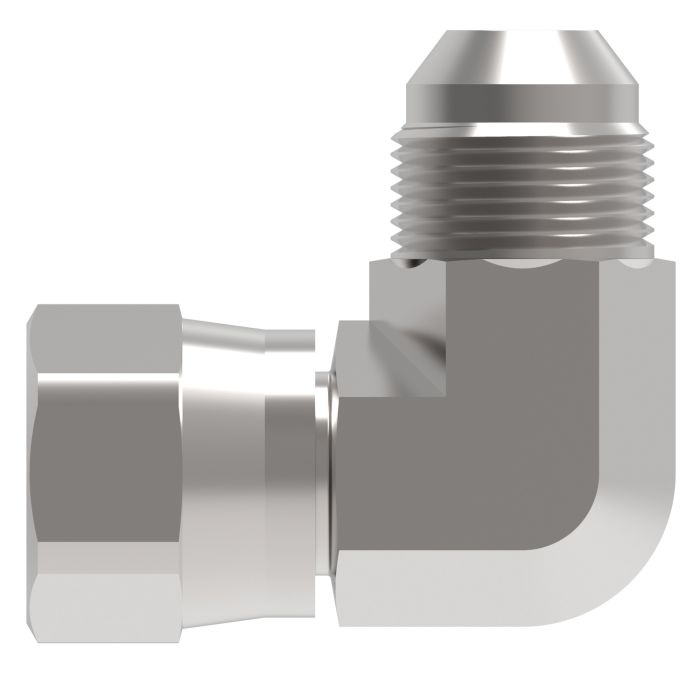

main product photo

Steel Adapter, 7/16-20 Female JIC 37 deg Flare Swivel To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

Ask A Question

Description & Features

Crafted from zinc-plated steel, this Eaton Aeroquip steel adapter ensures durability and resistance to corrosion in demanding environments. The 90-degree elbow design features a 7/16-20 female JIC 37-degree flare swivel connection to a 9/16-18 male JIC 37-degree flare, providing reliable, leak-free connections in hydraulic systems. This adapter is an ideal choice for various industries, including marine, military, chemical processing, pulp and paper, food and beverage, and off-shore drilling, where robust and dependable connections are crucial.

With dimensions of A: 0.69 inches and B: 1.06 inches, this adapter is engineered to fit seamlessly into existing systems while maintaining optimal performance. The precision-engineered design ensures compatibility, making it a versatile component in complex hydraulic setups. As part of the 2071 Series by Danfoss/Eaton, this adapter exemplifies superior engineering and quality standards.

SKU: 2071-4-6S

Supplier Part Number (MPN): 2071-4-6S

Alternate Part Numbers: C1BA22, MI-01461922, MINO-00015J20055

Specifications

A
0.69
Alternate Part Numbers
Alternate Part Number C1BA22, Alternate Part Number MI-01461922, Alternate Part Number MINO-00015J20055
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.06
Drop Dimension
1.06
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
0.44
End Size 2
0.56
End Type 1
SAE 37
End Type 2
SAE 37
Hex Size 2
0.56
Minimum Working Temperature
-65
Supplier Part Number
2071-4-6S
Thread 1
7/16-20
Thread 2
9/16-18
Thread Sealant
No
Product Weight
0.10 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 1-1/16-12 Female JIC 37 deg Flare Swivel To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2071-12-12S Steel Female To Male JIC 90 Elbow

0.75

1-1/16-12

1-1/16-12

1.19

1.66

Steel Adapter, 1-5/16-12 Female JIC 37 deg Flare Swivel To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2071-16-16S Steel Female To Male JIC 90 Elbow

1

1-5/16-12

1-5/16-12

1.41

1.81

Steel Adapter, 1-5/8-12 Female JIC 37 deg Flare Swivel To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2071-20-20S Steel Female To Male JIC 90 Elbow

1.25

1-5/8-12

1-5/8-12

1.55

2.06

Steel Adapter, 1-7/8-12 Female JIC 37 deg Flare Swivel To 1-7/8-12 Male JIC 37 deg Flare, 90 deg Elbow

2071-24-24S Steel Female To Male JIC 90 Elbow

1.5

1-7/8-12

1-7/8-12

1.86

2.33

Steel Adapter, 7/16-20 Female JIC 37 deg Flare Swivel To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

2071-4-4S Steel Female To Male JIC 90 Elbow

0.25

7/16-20

7/16-20

0.66

0.89

Steel Adapter, 9/16-18 Female JIC 37 deg Flare Swivel To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2071-6-6S Steel Female To Male JIC 90 Elbow

0.38

9/16-18

9/16-18

0.88

1.06

Steel Adapter, 3/4-16 Female JIC 37 deg Flare Swivel To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2071-8-8S Steel Female To Male JIC 90 Elbow

0.5

3/4-16

3/4-16

0.96

1.25

Steel Adapter, 7/8-14 Female JIC 37 deg Flare Swivel To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

2071-10-10S Steel Female To Male JIC 90 Elbow

0.63

7/8-14

7/8-14

1.12

1.45

Steel Adapter, 7/8-14 Female JIC 37 deg Flare Swivel To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

2071-10-8S Steel Female To Male JIC 90 Elbow

7/8-14

3/4-16

1.12

1.33

Steel Adapter, 1-3/16-12 Female JIC 37 deg Flare Swivel To 1-3/16-12 Male JIC 37 deg Flare, 90 deg Elbow

2071-14-14S Steel Female To Male JIC 90 Elbow

0.88

1-3/16-12

1-3/16-12

1.19

1.73

Steel Adapter, 7/16-20 Female JIC 37 deg Flare Swivel To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2071-4-6S Steel Female To Male JIC 90 Elbow

7/16-20

9/16-18

0.69

1.06

Steel Adapter, 1/2-20 Female JIC 37 deg Flare Swivel To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

2071-5-5S Steel Female To Male JIC 90 Elbow

0.31

1/2-20

1/2-20

0.64

0.95

Steel Adapter, 3/4-16 Female JIC 37 deg Flare Swivel To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

2071-8-6S Steel Female To Male JIC 90 Elbow

3/4-16

9/16-18

Steel Adapter, 3/8-24 Female JIC 37 deg Flare Swivel To 3/8-24 Male JIC 37 deg Flare, 90 deg Elbow

6500-03-03 Steel Female To Male JIC 90 Elbow

0.18

3/8-24

3/8-24

1

0.83

Steel Adapter, 9/16-18 Female JIC 37 deg Flare Swivel To 1/2-20 Male JIC 37 deg Flare, 90 deg Elbow

6500-05-06 Steel Female To Male JIC 90 Elbow

9/16-18

1/2-20

1.22

1.02

Steel Adapter, 9/16-18 Female JIC 37 deg Flare Swivel To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

6500-08-06 Steel Female To Male JIC 90 Elbow

9/16-18

3/4-16

1.32

1.25

Steel Adapter, 1-1/16-12 Female JIC 37 deg Flare Swivel To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

6500-08-12 Steel Female To Male JIC 90 Elbow

1-1/16-12

3/4-16

1.74

1.41

Steel Adapter, 3/4-16 Female JIC 37 deg Flare Swivel To 7/8-14 Male JIC 37 deg Flare, 90 deg Elbow

6500-10-08 Steel Female To Male JIC 90 Elbow

3/4-16

7/8-14

1.47

1.45

Steel Adapter, 7/8-14 Female JIC 37 deg Flare Swivel To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

6500-12-10 Steel Female To Male JIC 90 Elbow

7/8-14

1-1/16-12

1.73

1.65

Product Questions & Answers (3)

Question by: Gene S on May 31, 2025, 2:46 PM
got a hose end with 7/16-20 female JIC swivel, will this elbow screw right onto a 9/16-18 male JIC fitting?
Answer by: Customer Support on Jun 2, 2025, 1:46 PM
Function-wise, it is a 90 degree elbow adapter that goes from a 7/16-20 female JIC 37 degree flare swivel on one end to a 9/16-18 male JIC 37 degree flare on the other.
Question by: Norm P on Aug 21, 2025, 6:06 PM
Got a 7/16-20 female JIC swivel side going into a 9/16-18 male JIC fitting, this the right adapter to bridge those two sizes at a 90?
Answer by: Customer Support on Aug 23, 2025, 6:51 AM
Yeah, that's exactly what this one's for. The swivel end is 7/16-20 female JIC 37 degree flare, and the male end is 9/16-18 JIC 37 degree flare, with a 90 degree elbow configuration. So if those thread sizes and connection types match what you're working with, this adapter bridges them cleanly without needing additional fittings in between.
Question by: Ronnie E on Sep 23, 2025, 11:25 AM
Will this fitting work for hydraulic lines on a tractor?
Answer by: Customer Support on Sep 25, 2025, 8:07 AM
This adapter is designed for use in hydraulic systems. The applications listed include off-shore drilling, marine, and military uses, which suggests it's built to withstand demanding conditions. Just double-check that the 7/16-20 female and 9/16-18 male JIC 37 degree flare sizes match your tractor's requirements.
