main product photo

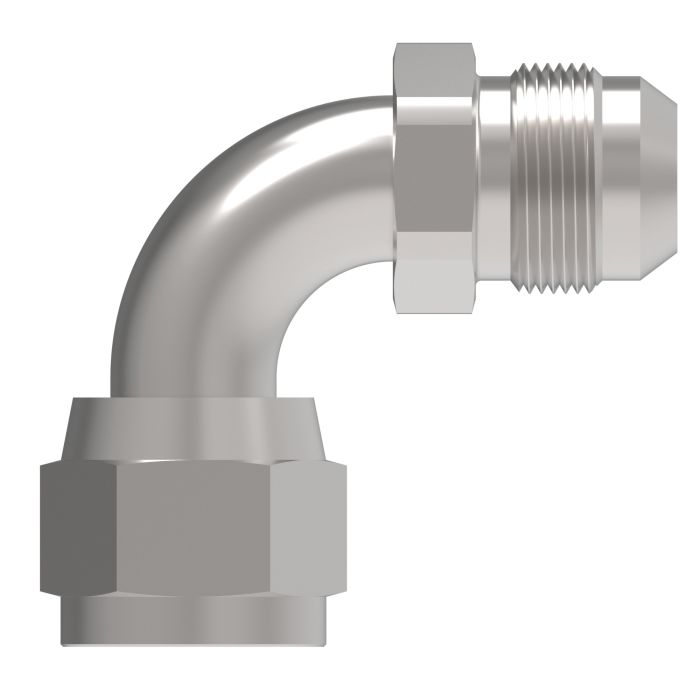

Steel Adapter, 7/8-14 Female JIC 37 deg Flare Swivel To 7/8-14 Male JIC 37 deg Flare, 90 deg Bent Tube (For pressures thru 4 Light Spiral Hose)

Ask A Question

Description & Features

This Eaton Aeroquip steel adapter features a 7/8-14 female JIC 37-degree flare swivel connection on one end and a 7/8-14 male JIC 37-degree flare connection on the other. The 90-degree bent tube design is suitable for pressures through 4 light spiral hose.

With dimensions A and B measuring 1.23 and 1.82 respectively, this adapter ensures a precise fit. It is suitable for use with various fluids as indicated in the fluid compatibility document available for download.

SKU: 500454-10S

Supplier Part Number (MPN): 500454-10S

Alternate Part Numbers: 91182746, C1BR96, MI-00328403, MINO-00015F69104

Specifications

A
1.23
Alternate Part Numbers
Alternate Part Number 91182746, Alternate Part Number C1BR96, Alternate Part Number MI-00328403, Alternate Part Number MINO-00015F69104, Alternate Part Number MINO-00925X11267
B
1.82
Drop Dimension
2.07
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
0.88
End Size 2
0.88
End Type 1
SAE 37
End Type 2
SAE 37
Hex Size 2
1
Minimum Working Temperature
-65
Supplier Part Number
500454-10S
Thread 1
7/8-14
Thread 2
7/8-14
Thread Sealant
No
Tube I.D. 1
0.63
Tube O.D.
0.63
Tube O.D.
0.63
Product Weight
0.26 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 7/8-14 Female JIC 37 deg Flare Swivel To 7/8-14 Male JIC 37 deg Flare, 90 deg Bent Tube (For pressures thru 4 Light Spiral Hose)

500454-10S Steel Female To Male JIC 90 Elbow

0.63

7/8-14

7/8-14

1.23

1.82

Steel Adapter, 1-1/16-12 Female JIC 37 deg Flare Swivel To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Bent Tube (For pressures thru 4 Light Spiral Hose)

500454-12S Steel Female To Male JIC 90 Elbow

0.75

1-1/16-12

1-1/16-12

1.82

2.49

Steel Adapter, 1-5/16-12 Female JIC 37 deg Flare Swivel To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Bent Tube (For pressures thru 4 Light Spiral Hose)

500454-16S Steel Female To Male JIC 90 Elbow

1

1-5/16-12

1-5/16-12

2.39

2.79

Steel Adapter, 1-5/8-12 Female JIC 37 deg Flare Swivel To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Bent Tube (For pressures thru 4 Light Spiral Hose)

500454-20S Steel Female To Male JIC 90 Elbow

1.25

1-5/8-12

1-5/8-12

2.75

3.14

Steel Adapter, 9/16-18 Female JIC 37 deg Flare Swivel To 9/16-18 Male JIC 37 deg Flare, 90 deg Bent Tube (For pressures thru 4 Light Spiral Hose)

500454-6S Steel Female To Male JIC 90 Elbow

0.38

9/16-18

9/16-18

0.85

1.31

Steel Adapter, 3/4-16 Female JIC 37 deg Flare Swivel To 3/4-16 Male JIC 37 deg Flare, 90 deg Bent Tube (For pressures thru 4 Light Spiral Hose)

500454-8S Steel Female To Male JIC 90 Elbow

0.5

3/4-16

3/4-16

1.09

1.66

Steel Adapter, 7/16-20 Female JIC 37 deg Flare Swivel To 7/16-20 Male JIC 37 deg Flare, 90 deg Bent Tube (For pressures thru 4 Light Spiral Hose)

500454-4S Steel Female To Male JIC 90 Elbow

0.25

7/16-20

7/16-20

0.68

1.12

Product Questions & Answers (2)

Question by: Ray T on Jun 9, 2025, 10:46 AM
Will this fitting handle the pressure from a 4-wire spiral hose?
Answer by: Customer Support on Jun 10, 2025, 2:06 PM
It's rated to handle pressures associated with hoses up to 4 light spiral.
Question by: Lynn J on Dec 3, 2025, 9:35 PM
trying to swap out an old elbow, is this one female jic to male jic and a 90?
Answer by: Customer Support on Dec 5, 2025, 6:33 AM
Fit wise, it is a 90 degree elbow adapter with a 7/8-14 female JIC 37 degree flare swivel on one end and a 7/8-14 male JIC 37 degree flare on the other.
