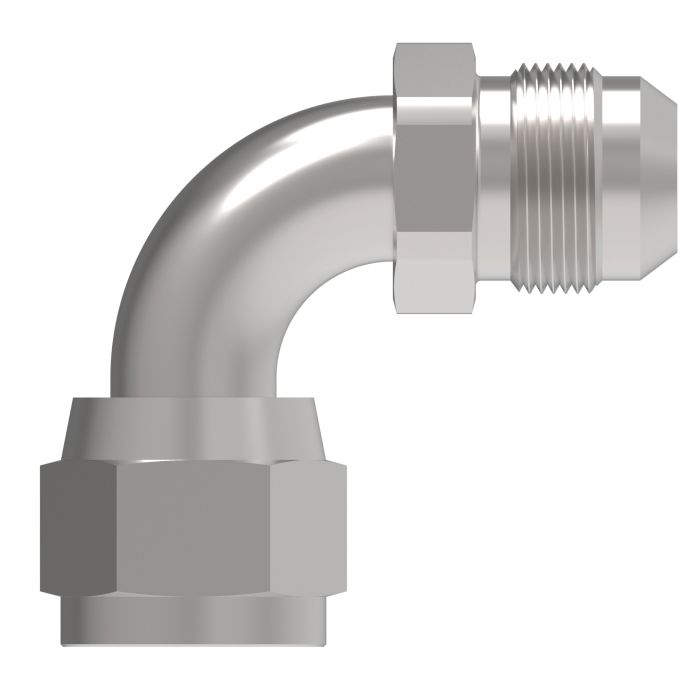

main product photo

Steel Adapter, 9/16-18 Female JIC 37 deg Flare Swivel To 9/16-18 Male JIC 37 deg Flare, 90 deg Bent Tube (For pressures thru 4 Light Spiral Hose)

Ask A Question

Description & Features

Designed for robust industrial applications, this Steel Adapter features a 9/16-18 Female JIC 37-degree Flare Swivel to a 9/16-18 Male JIC 37-degree Flare, configured at a 90-degree bent tube. This adapter is ideal for use with light spiral hoses under moderate pressure, ensuring reliable and leak-proof connections in hydraulic systems.

Manufactured by Eaton Aeroquip, this high-quality adapter ensures compatibility with a wide range of fluids, as detailed in its comprehensive fluid compatibility documentation. With precise dimensions of 0.85 inches for attribute A and 1.31 inches for attribute B, it offers a compact solution suitable for space-restricted installations.

SKU: 500454-6S

Supplier Part Number (MPN): 500454-6S

Alternate Part Numbers: C1BS12, MI-00328401, MINO-00015F69102

Specifications

A
0.85
Alternate Part Numbers
Alternate Part Number C1BS12, Alternate Part Number MI-00328401, Alternate Part Number MINO-00015F69102, Alternate Part Number MINO-00925X11272
B
1.31
Drop Dimension
1.31
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
0.56
End Size 2
0.56
End Type 1
SAE 37
End Type 2
SAE 37
Hex Size 2
0.69
Minimum Working Temperature
-65
Supplier Part Number
500454-6S
Thread 1
9/16-18
Thread 2
9/16-18
Thread Sealant
No
Tube I.D. 1
0.38
Tube O.D.
0.38
Tube O.D.
0.38
Product Weight
0.09 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 7/8-14 Female JIC 37 deg Flare Swivel To 7/8-14 Male JIC 37 deg Flare, 90 deg Bent Tube (For pressures thru 4 Light Spiral Hose)

500454-10S Steel Female To Male JIC 90 Elbow

0.63

7/8-14

7/8-14

1.23

1.82

Steel Adapter, 1-1/16-12 Female JIC 37 deg Flare Swivel To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Bent Tube (For pressures thru 4 Light Spiral Hose)

500454-12S Steel Female To Male JIC 90 Elbow

0.75

1-1/16-12

1-1/16-12

1.82

2.49

Steel Adapter, 1-5/16-12 Female JIC 37 deg Flare Swivel To 1-5/16-12 Male JIC 37 deg Flare, 90 deg Bent Tube (For pressures thru 4 Light Spiral Hose)

500454-16S Steel Female To Male JIC 90 Elbow

1

1-5/16-12

1-5/16-12

2.39

2.79

Steel Adapter, 1-5/8-12 Female JIC 37 deg Flare Swivel To 1-5/8-12 Male JIC 37 deg Flare, 90 deg Bent Tube (For pressures thru 4 Light Spiral Hose)

500454-20S Steel Female To Male JIC 90 Elbow

1.25

1-5/8-12

1-5/8-12

2.75

3.14

Steel Adapter, 9/16-18 Female JIC 37 deg Flare Swivel To 9/16-18 Male JIC 37 deg Flare, 90 deg Bent Tube (For pressures thru 4 Light Spiral Hose)

500454-6S Steel Female To Male JIC 90 Elbow

0.38

9/16-18

9/16-18

0.85

1.31

Steel Adapter, 3/4-16 Female JIC 37 deg Flare Swivel To 3/4-16 Male JIC 37 deg Flare, 90 deg Bent Tube (For pressures thru 4 Light Spiral Hose)

500454-8S Steel Female To Male JIC 90 Elbow

0.5

3/4-16

3/4-16

1.09

1.66

Steel Adapter, 7/16-20 Female JIC 37 deg Flare Swivel To 7/16-20 Male JIC 37 deg Flare, 90 deg Bent Tube (For pressures thru 4 Light Spiral Hose)

500454-4S Steel Female To Male JIC 90 Elbow

0.25

7/16-20

7/16-20

0.68

1.12

Product Questions & Answers (3)

Question by: Norm L on May 22, 2025, 6:06 AM
got a tight spot on a line, is this the 90 degree adapter that goes from 9/16-18 female JIC swivel to 9/16-18 male JIC?
Answer by: Customer Support on May 24, 2025, 6:59 AM
For a right angle turn, this is a 90 degree bent tube steel adapter with a 9/16-18 female JIC 37 degree flare swivel on one end and a 9/16-18 male JIC 37 degree flare on the other.
Question by: Howard P on Jul 8, 2025, 10:01 AM
Is this adapter okay for a hydraulic setup running up to light spiral hose pressures?
Answer by: Customer Support on Jul 10, 2025, 6:49 AM
Yes, this steel adapter is designed for hydraulic systems operating at pressures up to those found in light spiral hose applications.
Question by: Norm M on Jul 24, 2025, 3:46 PM
trying to swap out an old elbow, is this one a 9/16-18 female JIC swivel on one end and a 9/16-18 male JIC on the other, with a 90 degree bend?
Answer by: Customer Support on Jul 26, 2025, 8:34 AM
Built as a 90 degree elbow adapter, it goes from a 9/16-18 female JIC 37 degree flare swivel to a 9/16-18 male JIC 37 degree flare.
