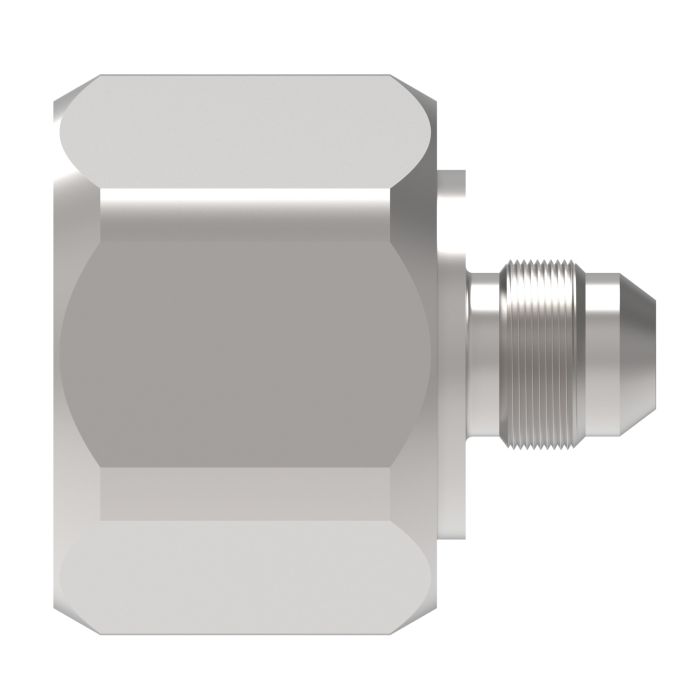

Steel Adapter, 1-1/16-12 Female JIC 37 deg Flare Swivel To 3/4-16 Male JIC 37 deg Flare, Straight

Ask A Question

Description & Features

This steel adapter is a reducer designed for use in various applications. It features a 1-1/16-12 female JIC 37 deg flare swivel to 3/4-16 male JIC 37 deg flare, in a straight configuration. The adapter is part of the 37° Flare Union Steel Adapters product model line from Danfoss / Eaton.

It is constructed to withstand a minimum working temperature of -65 degrees. End 1 has a 0.75 size, female gender, and SAE 37 deg type with 1-1/16-12 threads. End 2 has a 0.5 size, male gender, and SAE 37 deg type with 3/4-16 threads.

SKU: 221501-12-8S

Supplier Part Number (MPN): 221501-12-8S

Alternate Part Numbers: C1BC63, MI-00315825, MINO-00015F63940

Specifications

a Dimensions
1.19 in
Connection Size 1
3/4 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel, Male JIC
Connection Type 1
Female SAE 37 deg JIC Flare Swivel
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
SAE 070123/J514
Dimensions
1.79 in L
Finish
Dura-Kote™
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-65
Series
221501 Series
Thread Size
3/4-16 x 1-1/16-12
Tube OD
1/2 in

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Terry W on Jun 6, 2025, 12:02 PM
i’ve got a hose end that’s 1-1/16-12 female JIC swivel, what does the other side of this adapter screw into?
Answer by: Customer Support on Jun 8, 2025, 9:24 AM
On the other end you get a 3/4-16 male JIC 37 degree flare. It is a straight reducer adapter, so it steps down from the 1-1/16-12 female swivel side to the 3/4-16 male side, both in SAE 37 degree flare (JIC) style.
Question by: Cheryl H on Jul 25, 2025, 9:32 AM
trying to hook up a -12 jic hose end to a -8 jic line, is this the right adapter for that?
Answer by: Customer Support on Jul 27, 2025, 6:56 AM
Use-case wise, it’s a straight reducer adapter that goes from a 1-1/16-12 female JIC 37 degree flare swivel on one side to a 3/4-16 male JIC 37 degree flare on the other. That matches the common -12 JIC to -8 JIC step down.
