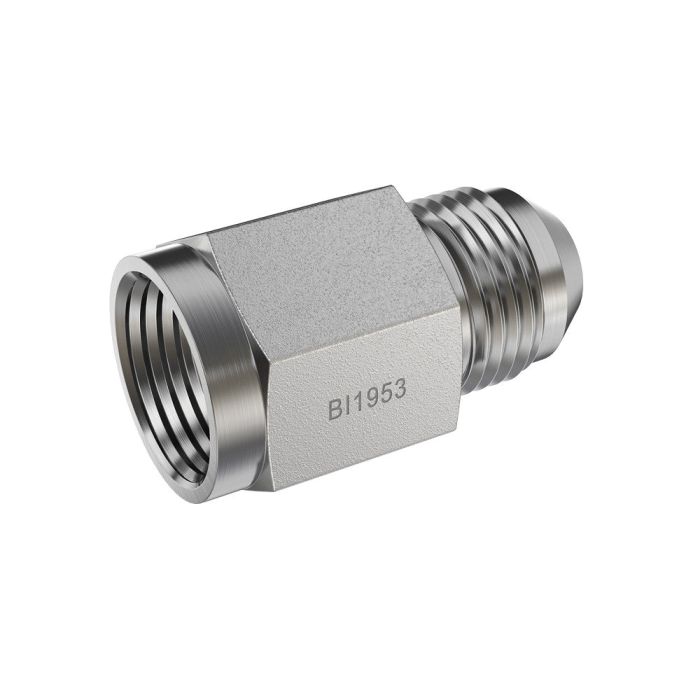

Steel Adapter, 1/2-20 Female JIC 37 deg Flare To 7/16-20 Male JIC 37 deg Flare, Straight

Description & Features

Optimize your industrial fittings with this robust steel adapter from Brennan Industries Inc. It features a 1/2-20 female JIC 37-degree flare connection to a 7/16-20 male JIC 37-degree flare configuration, ensuring a secure and reliable union.

This straight adapter, identified by catalog number C1DV86, is designed for rigid connections and can handle an outer diameter tube size of 0.25 inches without the use of a thread sealant.

Constructed for durability, the adapter is suitable for demanding applications requiring precise and efficient connections. Its compatibility with JIC fittings makes it an essential component in various industrial settings.

MPN: 2406-05-04

Supplier Part Number: 2406-05-04

Specifications

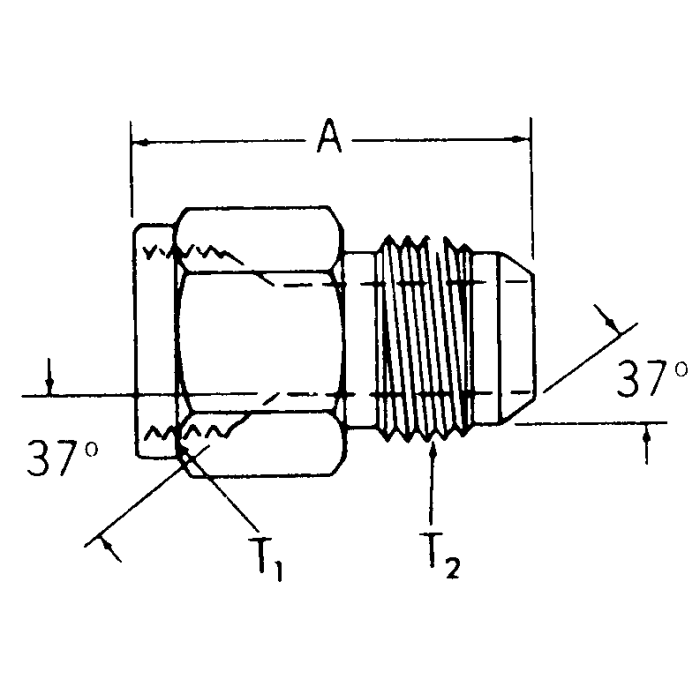

Brand BRENNAN	a Dimensions 1.16 in	Connection Size 1 5/16 in	Connection Size 2 1/4 in	Connection Type Female JIC, Male JIC	Connection Type 1 Female SAE 37 deg JIC Flare	Connection Type 2 Male 37 deg JIC Flare	Dimension Standards SAE J514	Dimensions 1.16 in L	Finish Trivalent Zinc-Plated	Fitting Type Reducer	Hex Size 5/8 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Series 2406 Series	Thread Sealant Without Thread Sealant	Thread Size 1/2-20 x 7/16-20	Tube OD 1/4 in	Tube Outside Diameter 1/4 in

Similar Products

Model Number	Tube O.D.	Thread Size	Thread 2	A
2406-04-06 Steel Female To Male JIC Adapter	0.38	9/16-18, 7/16-20	9/16-18	1.01
2406-06-08 Steel Female To Male JIC Adapter	0.5	3/4-16, 9/16-18	3/4-16	1.28
2406-08-10 Steel Female To Male JIC Adapter	0.63	7/8-14 x 3/4-16	7/8-14	1.29
2406-10-04 Steel Female To Male JIC Adapter	0.25	7/8-14 x 7/16-20	7/16-20	1.47
2215-10-12S Steel Female To Male JIC Adapter	0.75	7/8-14 x 1-1/16-12	1-1/16-12	1.74
2215-10-8S Steel Female To Male JIC Adapter	0.5	7/8-14 x 3/4-16	3/4-16	1.53
2215-12-10S Steel Female To Male JIC Adapter	0.63	7/8-14 x 1-1/16-12	7/8-14	1.73
2215-12-16S Steel Female To Male JIC Adapter	1	1-5/16-12 x 1-1/16-12	1-5/16-12	2
2215-16-20S Steel Female To Male JIC Adapter	1.25	1-5/8-12 x 1-5/16-12	1-5/8-12	2.3
2406-04-03 Steel Female To Male JIC Adapter	0.25	7/16-20 x 3/8-24	3/8-24	1.05
2406-05-06 Steel Female To Male JIC Adapter	0.38	9/16-18 x 1/2-20	9/16-18	1.17
2406-08-06 Steel Female To Male JIC Adapter	0.5	3/4-16, 9/16-18	9/16-18	1.31
2406-12-04 Steel Female To Male JIC Adapter	0.25	1-1/16-12 x 7/16-20	7/16-20	1.5
2406-14-12 Steel Female To Male JIC Adapter	0.75	1-3/16-12 x 1-1/16-12	1-1/16-12	1.8
2406-20-12 Steel Female To Male JIC Adapter	0.75	1-5/8-12 x 1-1/16-12	1-1/16-12	2
2406-20-24 Steel Female To Male JIC Adapter	1.25	1-7/8-12, 1-5/8-12	1-7/8-12	2.16
