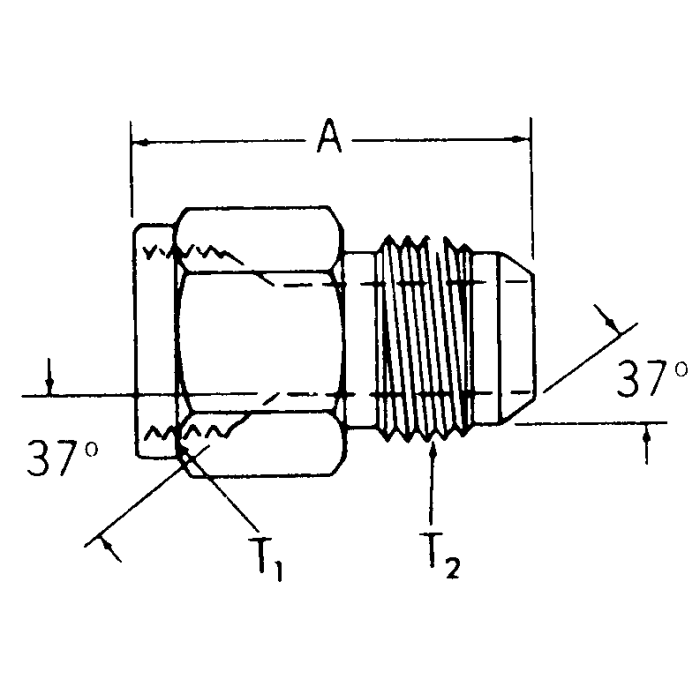

Steel Adapter, 3/4-16 Female JIC 37 deg Flare To 7/8-14 Male JIC 37 deg Flare, Straight

Ask A Question

Description & Features

Engineered for high precision applications, this adapter offers seamless compatibility with JIC fittings. The BRENNAN Industries Inc steel adapter features a 3/4-16 Female JIC 37deg; flare to 7/8-14 Male JIC 37deg; flare configuration, ensuring secure and leak-free connections.

The robust steel construction provides strength and durability in demanding environments. Designed specifically for industrial use, it caters to various fluid transfer applications with uncompromising reliability.

With no thread sealant required, this adapter simplifies installation and maintenance processes. The 0.63-inch tube O.D. further enhances the versatility of this component in various assemblies.

MPN: 2406-08-10

Supplier Part Number: 2406-08-10

Specifications

a Dimensions
1.29 in
Connection Size 1
1/2 in
Connection Size 2
5/8 in
Connection Type
Female JIC, Male JIC
Connection Type 1
Female SAE 37 deg JIC Flare
Connection Type 2
Male 37 deg JIC Flare
Dimension Standards
SAE J514
Dimensions
1.51 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Reducer
Hex Size
0.94 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Series
2406 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14 x 3/4-16
Tube Outside Diameter
0.63 in

Product Questions & Answers (4)

Sign In Hover me Please sign in to submit a question
Question by: Shawn Y on Jul 13, 2025, 6:37 AM
trying to hook a #8 female JIC line up to a #10 male JIC port, is this the right straight adapter?
Answer by: Customer Support on Jul 14, 2025, 8:38 AM
For that mix, yes. It’s a straight 37° JIC flare union adapter with a 3/4-16 female JIC on one side and a 7/8-14 male JIC on the other.
Question by: Harold C on Sep 8, 2025, 9:50 PM
got a hose end that’s 3/4-16 female JIC, will this adapter let me step up to a 7/8-14 male JIC on the other side?
Answer by: Customer Support on Sep 10, 2025, 5:29 PM
For hooking two JIC 37 degree flare connections together, this part bridges a 3/4-16 female JIC flare on one end to a 7/8-14 male JIC flare on the other, in a straight adapter.
Question by: Rex E on Dec 19, 2025, 11:34 AM
Wondering if this adapter'll fit right with my existing JIC fittings?
Answer by: Customer Support on Dec 21, 2025, 6:19 AM
This steel adapter is designed for direct compatibility with JIC fittings, featuring a 3/4-16 Female JIC 37 degree flare on one side and a 7/8-14 Male JIC 37 degree flare on the other.
Question by: Troy S on Nov 10, 2025, 3:30 PM
got a 3/4-16 female JIC end on my hydraulic line and need to step up to a 7/8-14 male JIC connection. this the right adapter for that?
Answer by: Customer Support on Nov 12, 2025, 8:56 AM
That's what this one's built for. The female end threads onto a 3/4-16 JIC fitting and the male end connects to a 7/8-14 JIC port, both running that standard 37-degree flare seat. No thread sealant needed either, so you're not adding extra steps to the job. Both sides seal on the flare itself, which is how JIC fittings are supposed to work.
