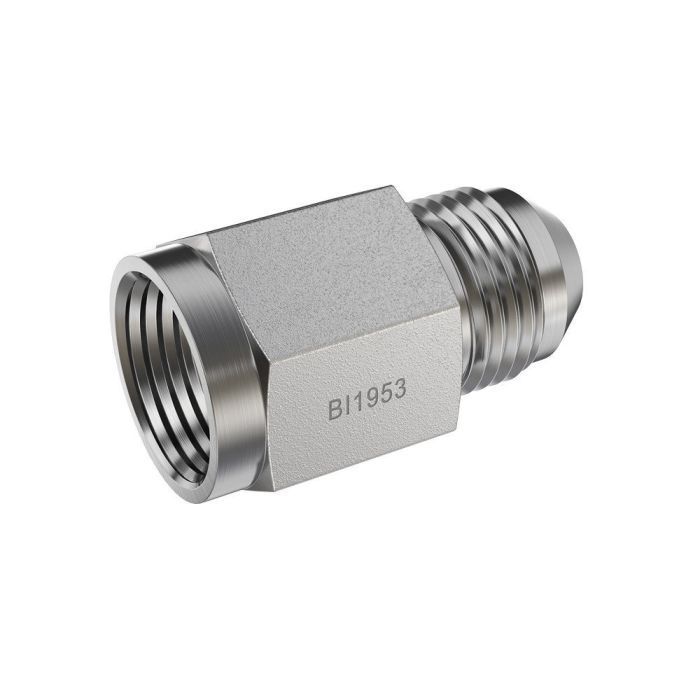

main product photo

Steel Adapter, 1-3/16-12 Female JIC 37 deg Flare To 1-1/16-12 Male JIC 37 deg Flare, Straight

Ask A Question

Description & Features

Engineered for precise connection needs this adapter offers a straight design ensuring secure fitting in industrial applications.

Backing this BRENNAN Industries Inc guarantees durability and reliability. Made from high-grade steel it ensures maximum performance under rigorous conditions.

The adapter features 1-3/16-12 Female JIC 37 Flare threads on one end and 1-1/16-12 Male JIC 37 Flare threads on the other supporting various configurations.

Ideal for the seamless integration into 0.75 tube O.D. systems without the need for additional thread sealant. It addresses the specific requirements prevalent within the industry ensuring optimal utility.

Designed for ease of use this adapter serves to meet stringent standards effectively.

MPN: 2406-14-12

Supplier Part Number: 2406-14-12

Specifications

a Dimensions
1.8 in
Connection Size 1
7/8 in
Connection Size 2
3/4 in
Connection Type
Female JIC, Male JIC
Connection Type 1
Female SAE 37 deg JIC Flare
Connection Type 2
Male 37 deg JIC Flare
Dimension Standards
SAE J514
Dimensions
1.83 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Reducer
Hex Size
1-3/8 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Series
2406 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-3/16-12 x 1-1/16-12
Tube Outside Diameter
3/4 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Marvin W on Mar 30, 2025, 9:59 AM
got a hose with a 1-3/16-12 female JIC on it, will this thread right into it and give me a 1-1/16-12 male on the other end?
Answer by: Customer Support on Mar 31, 2025, 9:16 PM
For a straight JIC flare-to-flare connection, it’s set up exactly that way. One side is 1-3/16-12 Female JIC 37 degree flare, and the other side is 1-1/16-12 Male JIC 37 degree flare.
