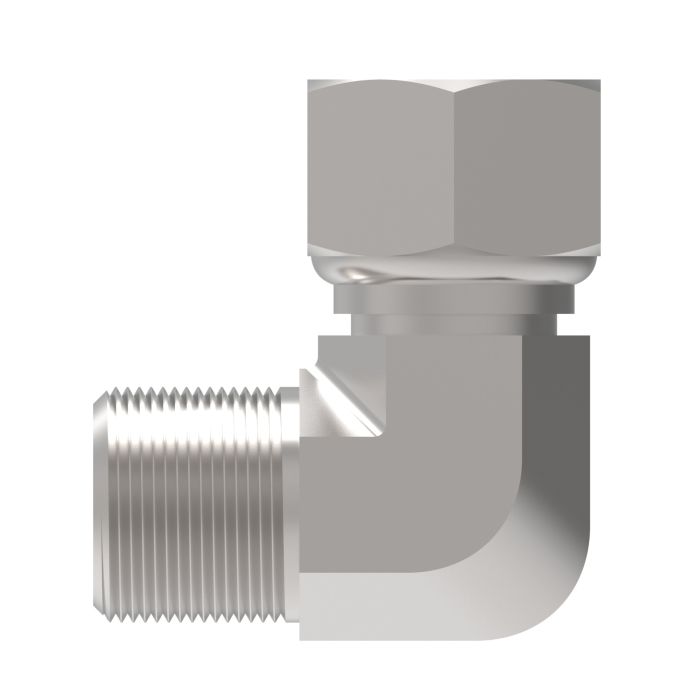

Steel Adapter, 3/4-14 Female NPT Swivel To 1/2-14 Male NPT, 90 deg Elbow

Ask A Question

Description & Features

Manufactured from zinc-plated steel, the Steel Adapter, 3/4-14 Female NPT Swivel To 1/2-14 Male NPT, 90 Deg Elbow is part of the Eaton Aeroquip 2047 Series, designed to connect misaligned or directionally offset hydraulic lines with a 90-degree turn. The swivel female NPT end allows rotational adjustment during installation, reducing stress on connected fittings and lines.

With overall dimensions of 1.1 in. (A) by 1.81 in. (B), this compact elbow adapter is well-suited for tight installations across a range of demanding industries, including marine and military, chemical processing, pulp and paper, food and beverage processing, and offshore drilling. The zinc plating provides corrosion resistance in harsh or moisture-exposed environments.

SKU: 2047-12-8S

Supplier Part Number (MPN): 2047-12-8S

Alternate Part Numbers: C1AY86, MI-00302988, MINO-00015F51842

Specifications

A
1.10
Alternate Part Numbers
Alternate Part Number C1AY86, Alternate Part Number MI-00302988, Alternate Part Number MINO-00015F51842
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.81
Drop Dimension
2.03
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13556
End Size 1
0.75
End Size 2
0.50
End Type 1
NPSM
End Type 2
NPTF
Hex Size 2
1.06
Minimum Working Temperature
-65
Supplier Part Number
2047-12-8S
Thread 1
3/4-14
Thread 2
1/2-14
Thread Sealant
No
Product Weight
1.13 lbs

Related Documents

Similar Products

Model Number Thread 1 Thread 2 A B Price Action
Steel Adapter, 1/4-18 Female NPT Swivel To 1/4-18 Male NPT, 90 deg Elbow

2047-4-4S Steel Female To Male NPT 90 Elbow

1/4-18

1/4-18

0.78

1.19

Steel Adapter, 3/8-18 Female NPT Swivel To 1/2-14 Male NPT, 90 deg Elbow

2047-6-8S Steel Female To Male NPT 90 Elbow

3/8-18

1/2-14

1

1.81

Steel Adapter, 1/2-14 Female NPT Swivel To 3/4-14 Male NPT, 90 deg Elbow

2047-8-12S Steel Female To Male NPT 90 Elbow

1/2-14

3/4-14

1.12

2

Steel Adapter, 1/2-14 Female NPT Swivel To 3/8-18 Male NPT, 90 deg Elbow

2047-8-6S Steel Female To Male NPT 90 Elbow

1/2-14

3/8-18

1

1.67

Steel Adapter, 3/8-18 Female NPT Swivel To 3/4-14 Male NPT, 90 deg Elbow

1501-12-06 Steel Female To Male NPT 90 Elbow

3/8-18

3/4-14

1.02

2

Steel Adapter, 3/4-14 Female NPT Swivel To 3/4-14 Male NPT, 90 deg Elbow

2047-12-12S Steel Female To Male NPT 90 Elbow

3/4-14

3/4-14

1.19

2

Steel Adapter, 3/4-14 Female NPT Swivel To 1-11-1/2 Male NPT, 90 deg Elbow

2047-12-16S Steel Female To Male NPT 90 Elbow

3/4-14

1-11-1/2

1.28

2.38

Steel Adapter, 3/4-14 Female NPT Swivel To 1/2-14 Male NPT, 90 deg Elbow

2047-12-8S Steel Female To Male NPT 90 Elbow

3/4-14

1/2-14

1.1

1.81

Steel Adapter, 1-11-1/2 Female NPT Swivel To 1-11-1/2 Male NPT, 90 deg Elbow

2047-16-16S Steel Female To Male NPT 90 Elbow

1-11-1/2

1-11-1/2

1.44

2.38

Steel Adapter, 1/8-27 Female NPT Swivel To 1/8-27 Male NPT, 90 deg Elbow

2047-2-2S Steel Female To Male NPT 90 Elbow

1/8-27

1/8-27

0.69

0.94

Steel Adapter, 1-1/4-11-1/2 Female NPT Swivel To 1-1/4-11-1/2 Male NPT, 90 deg Elbow

2047-20-20S Steel Female To Male NPT 90 Elbow

1-1/4-11-1/2

1-1/4-11-1/2

1.62

2.62

Steel Adapter, 1/4-18 Female NPT Swivel To 3/8-18 Male NPT, 90 deg Elbow

2047-4-6S Steel Female To Male NPT 90 Elbow

1/4-18

3/8-18

0.84

1.5

Steel Adapter, 3/8-18 Female NPT Swivel To 3/8-18 Male NPT, 90 deg Elbow

2047-6-6S Steel Female To Male NPT 90 Elbow

3/8-18

3/8-18

0.94

1.5

Steel Adapter, 1/2-14 Female NPT Swivel To 1/2-14 Male NPT, 90 deg Elbow

2047-8-8S Steel Female To Male NPT 90 Elbow

1/2-14

1/2-14

1

1.81

Product Questions & Answers (3)

Question by: Steve T on Dec 29, 2025, 6:38 AM
Will this fitting work with standard NPT threads? Just want to make sure before I order it.
Answer by: Customer Support on Dec 30, 2025, 3:24 PM
It's made with an NPTF external pipe thread, which is designed to be compatible with standard NPT threads.
Question by: Merle W on Jan 15, 2026, 4:37 PM
Got a 3/4 female NPT swivel on one end and a 1/2 male NPT on the other end i need to tie together at a 90 degree angle. this the right part for that?
Answer by: Customer Support on Jan 17, 2026, 9:18 AM
That's what this adapter is built for. The female end is 3/4-14 NPSM swivel and the male end is 1/2-14 NPTF, so it reduces down while making that 90 degree turn in one fitting. Zinc plated steel construction, Eaton Aeroquip 2047 series. Pretty common solution when you're working with mismatched thread sizes and need to change direction without adding extra fittings in the line.
Question by: Norm Y on Aug 29, 2025, 9:46 AM
got a tight spot and need to turn the line 90 degrees. is this the elbow that goes from 3/4-14 female swivel to 1/2-14 male npt?
Answer by: Customer Support on Aug 30, 2025, 1:25 PM
Function-wise, yes. It is a 90 degree steel elbow adapter with a 3/4-14 female NPSM internal pipe swivel on one end and a 1/2-14 male NPTF external pipe thread on the other.
