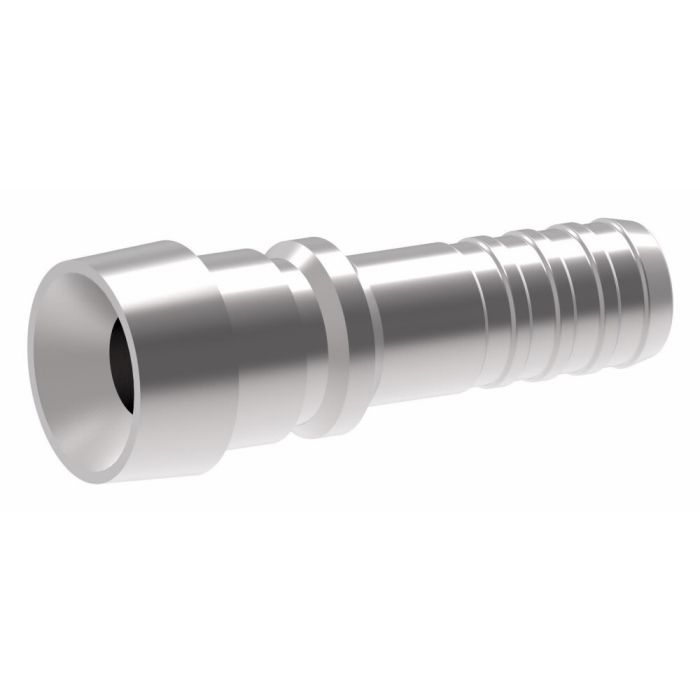

Steel Flat Crimp Fitting, 1-1/4-11-1/2 Male NPT, -20 Hose, Straight

Description & Features

Designed for robust hydraulic applications, the Steel Flat Crimp Fitting features a 1-1/4-11-1/2 male NPT connection, making it ideal for high-pressure environments. This straight fitting is compatible with -20 hose sizes, ensuring a secure and leak-free connection. Constructed from durable steel, it offers long-lasting performance and resistance to corrosion, a critical factor in demanding industrial settings.

Manufactured under the renowned Eaton Aeroquip brand, this fitting aligns with the Aeroquip FC363 Flat Crimp Steel Fittings model, ensuring compatibility and reliability. The precision-engineered NPTF end type provides a tight seal, while the straightforward installation process minimizes downtime. Whether used in hydraulic systems or other industrial applications, this fitting is a reliable choice for maintaining system integrity.

SKU: FC1349-2020S

Supplier Part Number (MPN): FC1349-2020S

Alternate Part Numbers: C1HE55

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.924 in	Compatible Hose ID 1-1/4 in	Compatible Tube OD 1-1/2 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Hose, MNPT	Connection Type 1 Hose	Connection Type 2 Male NPTF	Construction Style Crimp	Cut-Off Factor 1.54 in	d Dimensions 1.7 in	Dimensions 2.92 in L x 1.75 in W x 2.02 in H	End Gender 1 Male	End Size 1 20	End Size 2 1-1/4 in	Finish Dura-Kote™	Fitting Type Nipple	For Use With FC363, FC364 and FC563 Series PTFE Hoses	Hex Size 1-3/4 in	Hose Dash Size 20	Inside Diameter 1.05 in	Material Steel	Material Construction Carbon Steel	Maximum Operating Pressure 3000 psi	Operating Temperature -65	Segment Code B	Series FC1349 Series	Thread Sealant Without Thread Sealant	Thread Size 1-1/4-11-1/2	Tube Outside Diameter 1 1-1/2 in

Similar Products

Model Number	Thread Size	Hose Dash Size	d Dimensions	Price	Action
FC1349-1212S Steel Flat Crimp NPT Fitting	3/4-14	12	1.37 in

Product Questions & Answers (2)

Question by: Roger M on Nov 23, 2025, 8:31 AM

fitting says -20 hose size, is that the same as 1-1/4 inch hose or something different?

Answer by: Customer Support on Nov 25, 2025, 6:32 AM

The -20 designation refers to a hose with a 1-1/4 inch inside diameter. So yes, those two callouts point to the same hose size. The thread end on this fitting is 1-1/4-11-1/2 Male NPT, which lines up with standard 1-1/4 inch NPT ports. If your hose and port both match those specs, this fitting should drop right in.

Question by: Rex B on Apr 21, 2025, 7:09 AM

got a -20 hose on the bench, is this the straight male pipe thread end for it or am i lookin at the wrong one

Answer by: Customer Support on Apr 22, 2025, 1:15 PM

Match-up wise, FC1349-2020S is a straight steel flat crimp fitting sized for a -20 hose, and the threaded end is a 1-1/4-11-1/2 male NPTF.
