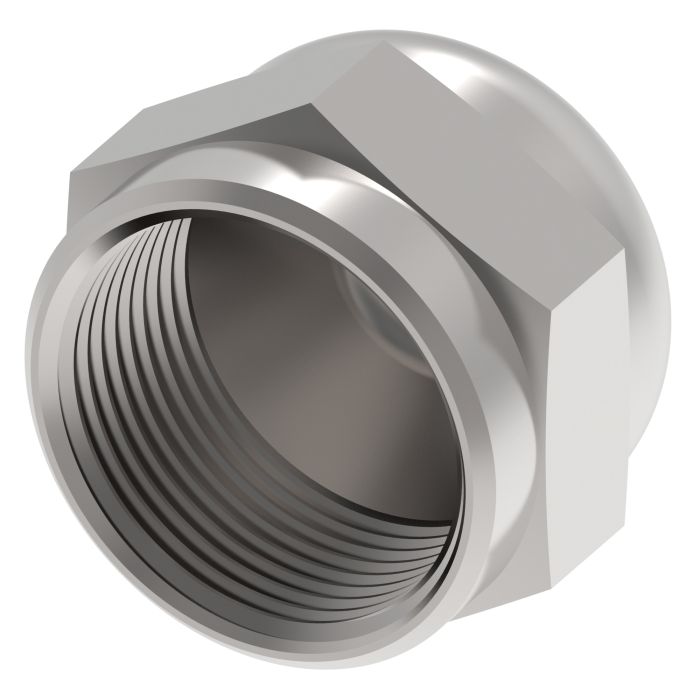

Steel JIC 37 deg Flare Cap, 7/8-14 Thread

Ask A Question

Description & Features

This Danfoss / Eaton 210292 Series steel adapter is a cap nut featuring female gender on End 1. Constructed from steel, it's suitable for applications within a working temperature range down to -40 degrees.

The end connection is a SAE 37 degree flare with a 0.625 inch size, designed to fit a 7/8-14 thread. The Steel JIC 37 deg Flare Cap, 7/8-14 Thread ensures a secure and reliable seal in hydraulic applications.

SKU: 210292-10S

Supplier Part Number (MPN): 210292-10S

Alternate Part Numbers: 20011561, C1BB86, MI-00317074, MINO-00015F64517

Specifications

Brand
Aeroquip® by Danfoss
Connection Type
Female JIC
Dimension Standards
SAE 070112/J514
Finish
Dura-Kote™
Fitting Type
Cap Nut
Hex Size
1 x 1 in
Material
Steel
Material Construction
Carbon Steel
Series
210292 Series
Thread Size
7/8-14

Similar Products

Model Number Tube O.D. Thread Size A B Price Action
Steel JIC 37 deg Flare Cap, 1-1/16-12 Thread

210292-12S Steel JIC Cap

0.75

1-1/16-12

0.91

1.25

Steel JIC 37 deg Flare Cap, 1-5/16-12 Thread

210292-16S Steel JIC Cap

1

1-5/16-12

1.02

1.5

Steel JIC 37 deg Flare Cap, 1-5/8-12 Thread

210292-20S Steel JIC Cap

1.25

1-5/8-12

1.06

2

Steel JIC 37 deg Flare Cap, 7/16-20 Thread

210292-4S Steel JIC Cap

0.25

7/16-20

0.59

0.56

Steel JIC 37 deg Flare Cap, 9/16-18 Thread

210292-6S Steel JIC Cap

0.38

9/16-18

0.62

0.69

Steel JIC 37 deg Flare Cap, 3/4-16 Thread

210292-8S Steel JIC Cap

0.5

3/4-16

0.75

0.88

Steel JIC 37 deg Flare Cap, 5/16-24 Thread

0304-C-02 Steel JIC Cap

0.13

5/16-24

0.5

0.38

Steel JIC 37 deg Flare Cap, 1-3/16-12 Thread

0304-C-14 Steel JIC Cap

0.88

1-3/16-12

0.97

1.38

Steel JIC 37 deg Flare Cap, 1-7/8-12 Thread

210292-24S Steel JIC Cap

1.5

1-7/8-12

1.19

2.25

Steel JIC 37 deg Flare Cap, 2-1/2-12 Thread

210292-32S Steel JIC Cap

2

2-1/2-12

1.44

2.88

Steel JIC 37 deg Flare Cap, 3/8-24 Thread

210292-3S Steel JIC Cap

0.19

3/8-24

0.56

0.44

Steel JIC 37 deg Flare Cap, 1/2-20 Thread

210292-5S Steel JIC Cap

0.31

1/2-20

0.61

0.62

Product Questions & Answers (2)

Question by: Rick W on Apr 8, 2025, 2:43 PM
got a 7/8-14 jic flare line, is this the right cap for it?
Answer by: Customer Support on Apr 10, 2025, 6:12 AM
With a 7/8-14 thread and an SAE 37 degree (JIC) female flare end, it’s meant to cap off a matching 37 degree male flare fitting that uses 7/8-14 threads.
Question by: Harold H on Jul 19, 2025, 6:20 AM
what thread size is on this cap, and is it the standard JIC flare angle?
Answer by: Customer Support on Jul 20, 2025, 12:32 PM
The thread is 7/8-14, and yes, it's ground on a 37-degree flare seat, which is the standard JIC configuration. So if you've got a JIC female fitting that needs to be blanked off or protected, this one's going to match up right.
