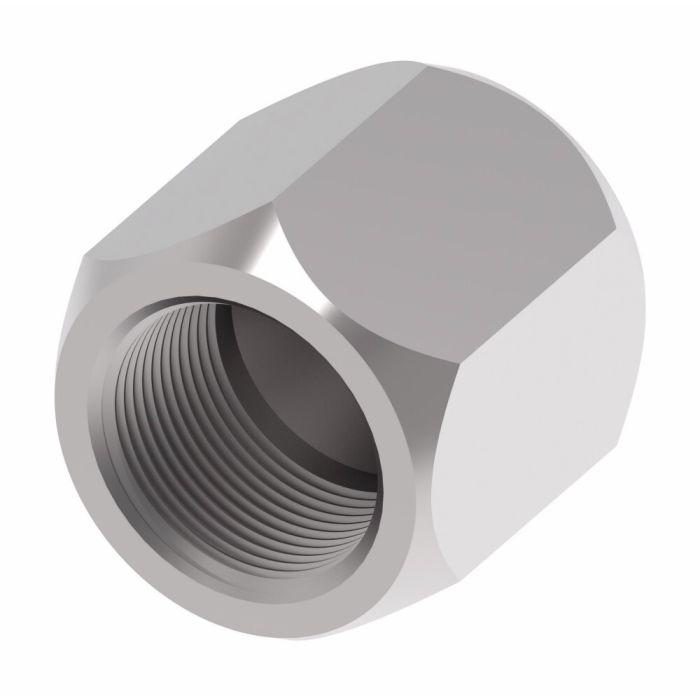

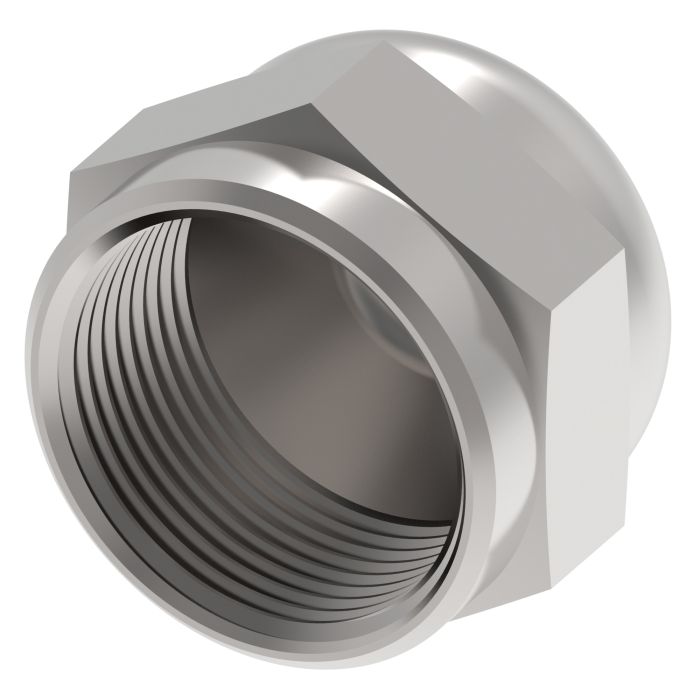

Steel JIC 37 deg Flare Cap, 1-1/16-12 Thread

Description & Features

Manufactured to SAE 37-degree flare standards, this steel cap is designed to terminate or seal a female JIC fitting end with a 1-1/16-12 thread. It is rated for a minimum working temperature of -40°, making it suitable for demanding hydraulic circuit applications in cold environments. The cap accommodates a 0.75-inch tube O.D. and does not require thread sealant.

The Steel JIC 37 deg Flare Cap, 1-1/16-12 Thread is part of the Danfoss Power Solutions (Aeroquip) 210292 Series and carries catalog number C1BB87. It is classified under UNSPSC code 40183100 and is EAR99 export-controlled, indicating no special export licensing is required for most destinations.

SKU: 210292-12S

Supplier Part Number (MPN): 210292-12S

Alternate Part Numbers: 20011562, C1BB87, MI-00317084, MINO-00015F64518

Specifications

Brand Aeroquip® by Danfoss	Connection Type Female JIC	Dimension Standards SAE 070112/J514	Finish Dura-Kote™	Fitting Type Cap Nut	Hex Size 1-1/4	Material Steel	Material Construction Carbon Steel	Series 210292 Series	Thread Size 1-1/16-12

Similar Products

Model Number	Tube O.D.	Thread Size	A	B
210292-10S Steel JIC Cap	0.63	7/8-14	0.84	1
210292-16S Steel JIC Cap	1	1-5/16-12	1.02	1.5
210292-20S Steel JIC Cap	1.25	1-5/8-12	1.06	2
210292-4S Steel JIC Cap	0.25	7/16-20	0.59	0.56
210292-6S Steel JIC Cap	0.38	9/16-18	0.62	0.69
210292-8S Steel JIC Cap	0.5	3/4-16	0.75	0.88
0304-C-02 Steel JIC Cap	0.13	5/16-24	0.5	0.38
0304-C-14 Steel JIC Cap	0.88	1-3/16-12	0.97	1.38
210292-24S Steel JIC Cap	1.5	1-7/8-12	1.19	2.25
210292-32S Steel JIC Cap	2	2-1/2-12	1.44	2.88
210292-3S Steel JIC Cap	0.19	3/8-24	0.56	0.44
210292-5S Steel JIC Cap	0.31	1/2-20	0.61	0.62

Product Questions & Answers (4)

Question by: Ricky G on Oct 13, 2025, 4:27 PM

got a 3/4 tube line with a jic flare, is this cap the right size for it

Answer by: Customer Support on Oct 14, 2025, 4:29 PM

For a 3/4 inch tube O.D. JIC 37 degree flare connection, this cap matches that size. It’s a female SAE 37 flare cap with a 1-1/16-12 thread, which is the thread used on the 3/4 tube size in JIC 37 flare.

Question by: Dwight W on Aug 24, 2025, 2:22 PM

How tight should I make this cap when I put it on? Don't want to overtighten it and mess something up.

Answer by: Customer Support on Aug 26, 2025, 6:30 AM

You'll want to tighten it enough to ensure a good seal, but avoid excessive force. These are made of steel, so they can handle some torque, but it's always best to err on the side of caution to prevent damage to the threads or the fitting it's connecting to.

Question by: Donna R on Jun 25, 2025, 3:12 PM

i got a JIC 37 flare port with 1-1/16-12 threads. is this the right cap to close it off?

Answer by: Customer Support on Jun 27, 2025, 1:18 PM

For a JIC 37 degree flare connection with 1-1/16-12 threads, this part matches that thread callout and is a steel cap nut style from the Danfoss/Eaton 210292 series.

Question by: Jerry C on Sep 2, 2025, 6:43 PM

got a JIC port that needs capping off on a 1-1/16-12 thread, this the right fit for that?

Answer by: Customer Support on Sep 4, 2025, 6:48 AM

For a 1-1/16-12 JIC port, yes, that's exactly what this cap is sized for. The 37-degree flare seat matches standard JIC fittings at that thread size, so it'll seat properly and close off the port. It's steel construction from Eaton Aeroquip, which holds up well in typical hydraulic line applications where you need a reliable cap on an unused or inactive port.
