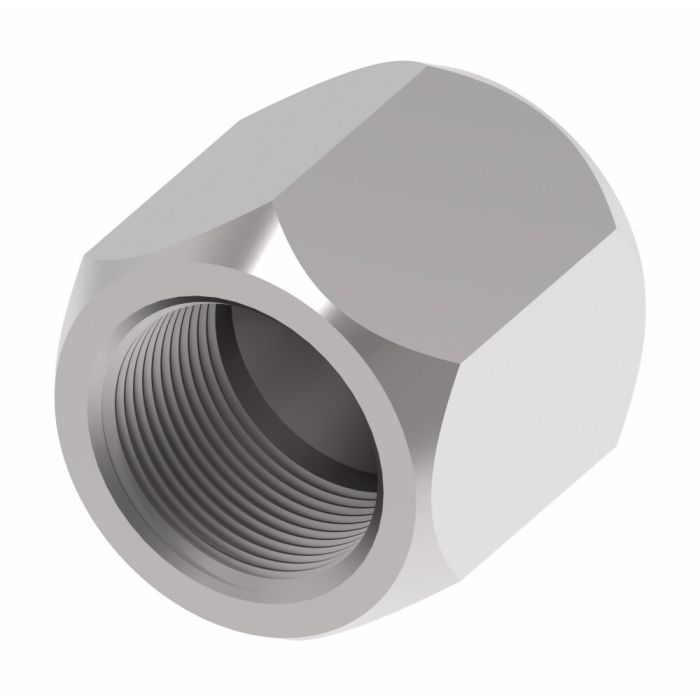

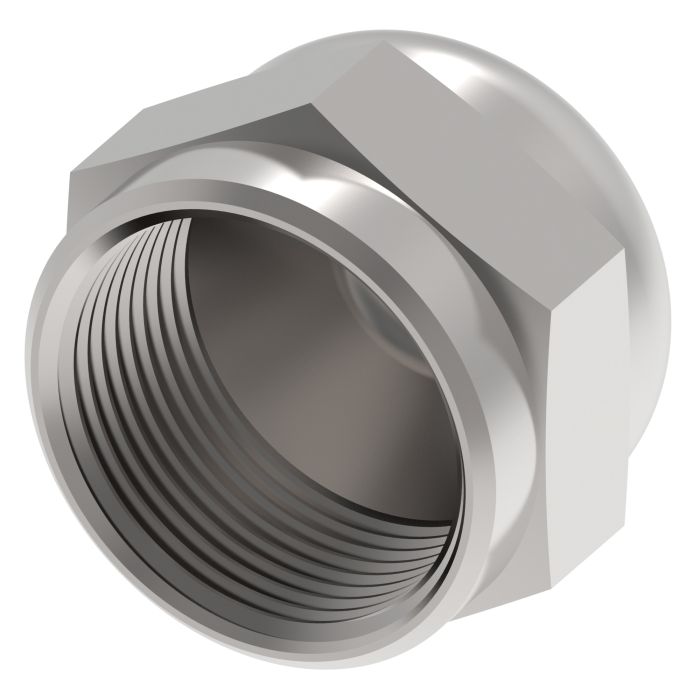

Steel JIC 37 deg Flare Cap, 7/16-20 Thread

Description & Features

This Danfoss / Eaton 210292 Series adapter is a Steel JIC 37 deg Flare Cap, with a 7/16-20 thread.

This cap nut features a female end gender and a 0.25 inch end size. It is part of the 37° Flare Union Steel Adapters product model label.

This adapter is designed to operate in a minimum working temperature of -40 degrees.

SKU: 210292-4S

Supplier Part Number (MPN): 210292-4S

Alternate Part Numbers: C1BB92, MI-00317031, MINO-00015F64513

Specifications

Brand
Aeroquip® by Danfoss
Connection Type
Female JIC
Dimension Standards
SAE 070112/J514
Finish
Dura-Kote™
Fitting Type
Cap Nut
Hex Size
0.563 in
Material
Steel
Material Construction
Carbon Steel
Series
210292 Series
Thread Size
7/16-20
Tube OD
1/4 in

Similar Products

Model Number Connection Size Hex Size Price Action
Steel JIC 37 deg Flare Cap, 3/8-24 Thread

210292-3S Steel JIC Cap

7/16 in

Steel JIC 37 deg Flare Cap, 1/2-20 Thread

210292-5S Steel JIC Cap

5/8 in

Steel JIC 37 deg Flare Cap, 9/16-18 Thread

210292-6S Steel JIC Cap

11/16 in

Steel JIC 37 deg Flare Cap, 3/4-16 Thread

210292-8S Steel JIC Cap

7/8 in

Steel JIC 37 deg Flare Cap, 7/8-14 Thread

210292-10S Steel JIC Cap

1 x 1 in

Steel JIC 37 deg Flare Cap, 1-1/16-12 Thread

210292-12S Steel JIC Cap

1-1/4

Steel JIC 37 deg Flare Cap, 1-5/16-12 Thread

210292-16S Steel JIC Cap

1-1/2 in

Steel JIC 37 deg Flare Cap, 1-5/8-12 Thread

210292-20S Steel JIC Cap

2 in

Steel JIC 37 deg Flare Cap, 1-7/8-12 Thread

210292-24S Steel JIC Cap

2-1/4 in

Steel JIC 37 deg Flare Cap, 2-1/2-12 Thread

210292-32S Steel JIC Cap

2-7/8 in

Product Questions & Answers (2)

Question by: Terry H on Mar 26, 2025, 2:28 PM
got a 1/4 inch JIC line, is this the right cap for it?
Answer by: Customer Support on Mar 28, 2025, 11:39 AM
For a 1/4 inch tube size JIC 37 degree flare connection, this cap matches that size and uses a 7/16-20 female thread.
Question by: Ronnie P on Apr 19, 2025, 2:36 PM
What's this cap nut made of? Just wanna make sure it'll hold up.
Answer by: Customer Support on Apr 20, 2025, 6:40 PM
This cap nut is made of steel, which should provide good durability for hydraulic applications.
