main product photo

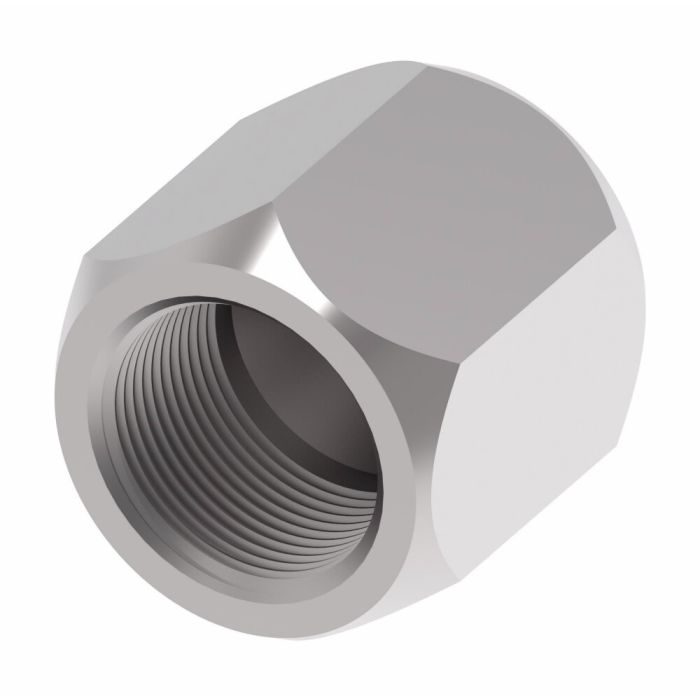

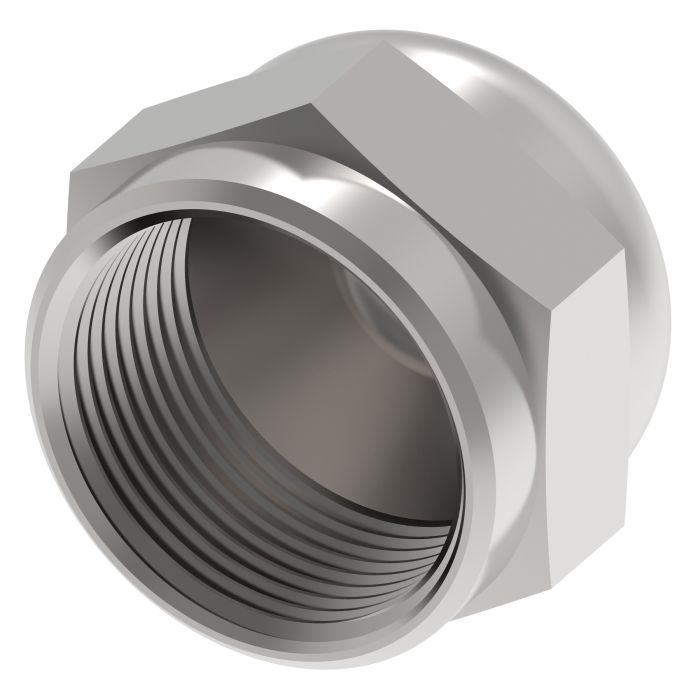

Steel JIC 37 deg Flare Cap, 3/4-16 Thread

Ask A Question

Description & Features

Designed for use in JIC 37-degree flare hydraulic assemblies, this fitting accepts a 3/4-16 thread and is rated for service down to -40°F minimum working temperature. The female end configuration with a 0.5-inch tube O.D. makes it suited for capping off unused ports or terminating lines in hydraulic circuits where a sealed end is required.

The Steel JIC 37 deg Flare Cap, 3/4-16 Thread is manufactured to Danfoss Power Solutions (Aeroquip) standards under the 210292 series, catalog number C1BB95. Constructed from steel, this cap nut provides reliable mechanical integrity in demanding hydraulic system environments. No thread sealant is required for proper installation.

SKU: 210292-8S

Supplier Part Number (MPN): 210292-8S

Alternate Part Numbers: 20011560, C1BB95, MI-00317063, MINO-00015F64516

Specifications

A
0.75
Alternate Part Numbers
Alternate Part Number 20011560, Alternate Part Number C1BB95, Alternate Part Number MI-00317063, Alternate Part Number MINO-00015F64516
B
0.88
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Size 1
0.50
End Type 1
SAE 37
Minimum Working Temperature
-40
Supplier Part Number
210292-8S
Thread 2
3/4-16
Thread Sealant
No
Tube O.D.
0.50
Tube O.D.
0.5
Product Weight
0.07 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 2 A B Price Action
Steel JIC 37 deg Flare Cap, 7/8-14 Thread

210292-10S Steel JIC Cap

0.63

7/8-14

0.84

1

Steel JIC 37 deg Flare Cap, 1-1/16-12 Thread

210292-12S Steel JIC Cap

0.75

1-1/16-12

0.91

1.25

Steel JIC 37 deg Flare Cap, 1-5/16-12 Thread

210292-16S Steel JIC Cap

1

1-5/16-12

1.02

1.5

Steel JIC 37 deg Flare Cap, 1-5/8-12 Thread

210292-20S Steel JIC Cap

1.25

1-5/8-12

1.06

2

Steel JIC 37 deg Flare Cap, 7/16-20 Thread

210292-4S Steel JIC Cap

0.25

7/16-20

0.59

0.56

Steel JIC 37 deg Flare Cap, 9/16-18 Thread

210292-6S Steel JIC Cap

0.38

9/16-18

0.62

0.69

Steel JIC 37 deg Flare Cap, 3/4-16 Thread

210292-8S Steel JIC Cap

0.5

3/4-16

0.75

0.88

Steel JIC 37 deg Flare Cap, 5/16-24 Thread

0304-C-02 Steel JIC Cap

0.13

5/16-24

0.5

0.38

Steel JIC 37 deg Flare Cap, 1-3/16-12 Thread

0304-C-14 Steel JIC Cap

0.88

1-3/16-12

0.97

1.38

Steel JIC 37 deg Flare Cap, 1-7/8-12 Thread

210292-24S Steel JIC Cap

1.5

1-7/8-12

1.19

2.25

Steel JIC 37 deg Flare Cap, 2-1/2-12 Thread

210292-32S Steel JIC Cap

2

2-1/2-12

1.44

2.88

Steel JIC 37 deg Flare Cap, 3/8-24 Thread

210292-3S Steel JIC Cap

0.19

3/8-24

0.56

0.44

Steel JIC 37 deg Flare Cap, 1/2-20 Thread

210292-5S Steel JIC Cap

0.31

1/2-20

0.61

0.62

Product Questions & Answers (3)

Question by: Dwayne T on Jun 12, 2025, 11:45 AM
got a 1/2 inch tube line, is this the right cap for it?
Answer by: Customer Support on Jun 14, 2025, 6:41 AM
For a 1/2 inch tube outside diameter, this cap matches that size and uses an SAE 37 degree (JIC) flare style connection with a 3/4-16 female thread.
Question by: Connie H on Oct 6, 2025, 10:29 AM
Will this cap nut fit a standard JIC 37 degree flare fitting?
Answer by: Customer Support on Oct 8, 2025, 6:10 AM
This cap is designed to fit a 3/4-16 threaded JIC 37-degree flare fitting.
Question by: Debbie M on Oct 11, 2025, 6:41 AM
got a 3/4-16 jic flare port i need to cap off, is this the right thread for that?
Answer by: Customer Support on Oct 12, 2025, 4:37 PM
The key callout on this part is the 3/4-16 JIC 37 degree flare thread. If what you are capping is a JIC 37 degree flare connection with 3/4-16 threads, this cap is the matching style.
