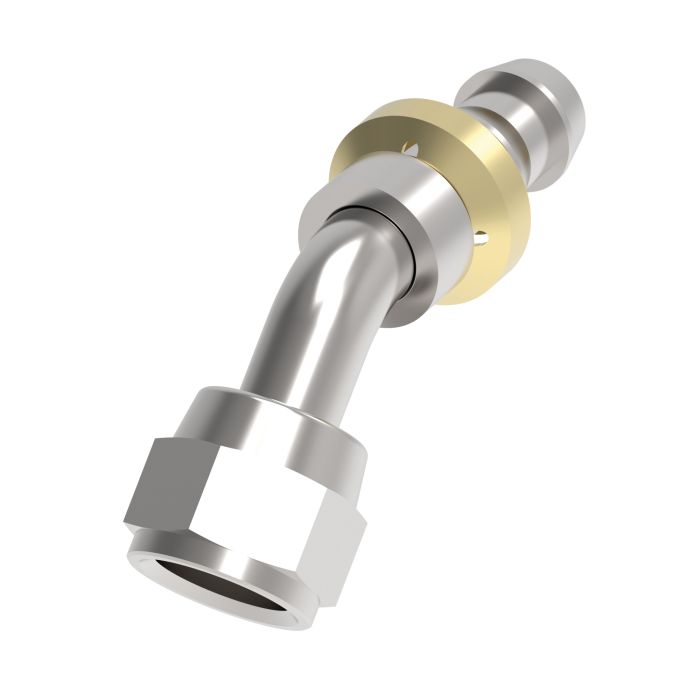

main product photo

Steel Reusable Socketless Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, 45 deg Elbow

Ask A Question

Description & Features

Crafted from durable steel, the Eaton Aeroquip Steel Reusable Socketless Fitting ensures reliable performance in demanding hydraulic applications. This fitting features a 7/16-20 Female JIC 37-degree flare swivel connection, integrated into a 45-degree elbow design, making it ideal for tight spaces where directional fluid flow is critical. Its compatibility with -04 hoses provides versatility across various systems, ensuring a secure and efficient connection.

Engineered for reuse, this fitting is a cost-effective solution, reducing the need for replacements and downtime. The universal swivel capability ensures ease of installation and adaptability across different setups. With its robust construction, the fitting is designed to withstand rigorous conditions, making it suitable for industrial and heavy-duty environments.

SKU: FC5849-0404S

Supplier Part Number (MPN): FC5849-0404S

Alternate Part Numbers: C1CS76, MI-00302977, MINO-00015F51831

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.56 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
0.81 in
d Dimensions
0.81 in
Dimensions
2.24 in L x 0.64 in W x 1.31 in H
Drop Dimensions
0.326 in
End Gender 1
Female
End Size 1
7/16 in
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
2556, 2565, 2575, FC332, FC647 and H201 Series Hoses
h Dimensions
0.33 in
Hex Size
0.55 in
Hose Dash Size
04
Inside Diameter
0.15 in
Material
Steel
Material Construction
Carbon Steel
Series
FC5849 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/16-20
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Steel Reusable Socketless Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -06 Hose, 45 deg Elbow

FC5847-0606S Steel JIC Socketless Fitting

9/16-18

06

0.93 in

0.39 in

Steel Reusable Socketless Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -08 Hose, 45 deg Elbow

FC5849-0808S Steel JIC Socketless Fitting

3/4-16

08

1.28 in

0.55 in

Product Questions & Answers (1)

Question by: Dale W on Nov 7, 2025, 9:52 AM
fitting's got a 45-degree elbow on it, does that mean I can run the hose at an angle without needing an extra adapter in there?
Answer by: Customer Support on Nov 9, 2025, 6:38 AM
the elbow is built right into the fitting itself, so the 45-degree turn is handled at the connection point. No extra adapter needed for that angle. It's particularly handy when you're working in a tight spot and a straight fitting just won't clear the surrounding hardware. The swivel feature also lets you rotate the JIC end during installation, which makes lining everything up a whole lot easier without having to twist the hose itself.
