Fluid Conveying
Adapters
Steel
37° Flare Union
Steel Adapters, Female JIC 37 deg Flare Swivel To Male JIC 37 deg Flare, Long 90 deg Bent Tube (For pressures thru 4 Light Spiral Hose)

Steel Adapters, Female JIC 37 deg Flare Swivel To Male JIC 37 deg Flare, Long 90 deg Bent Tube (For pressures thru 4 Light Spiral Hose)

Description & Features

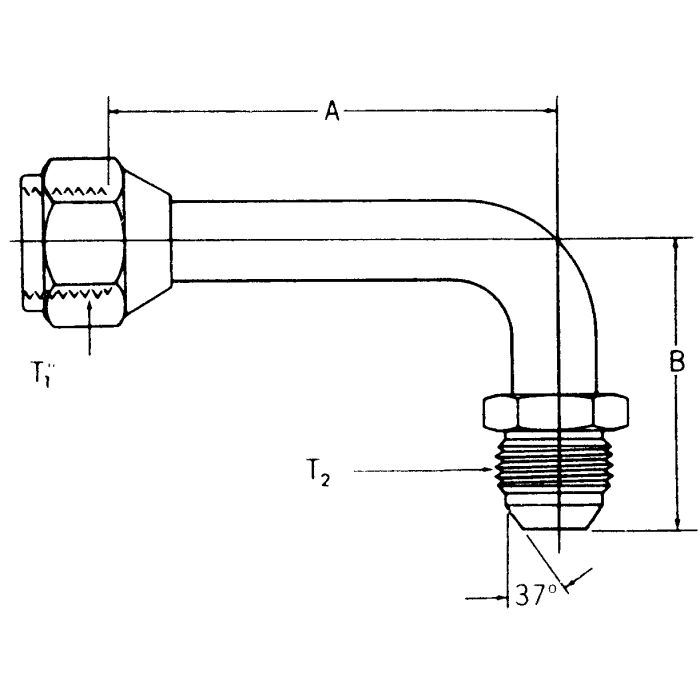

Model Number	Tube O.D.	Thread 1	Thread 2	A	B
504095-6S Steel JIC to JIC Long 90 Elbow	0.38	9/16-18	9/16-18	2.18	1.31
504095-8S Steel JIC to JIC Long 90 Elbow	0.5	3/4-16	3/4-16	2.43	1.78
504095-10S Steel JIC to JIC Long 90 Elbow	0.63	7/8-14	7/8-14	2.57	2.07
504095-12S Steel JIC to JIC Long 90 Elbow	0.75	1-1/16-12	1-1/16-12	3.73	2.49
504095-16S Steel JIC to JIC Long 90 Elbow	1	1-5/16-12	1-5/16-12	4.58	2.79
