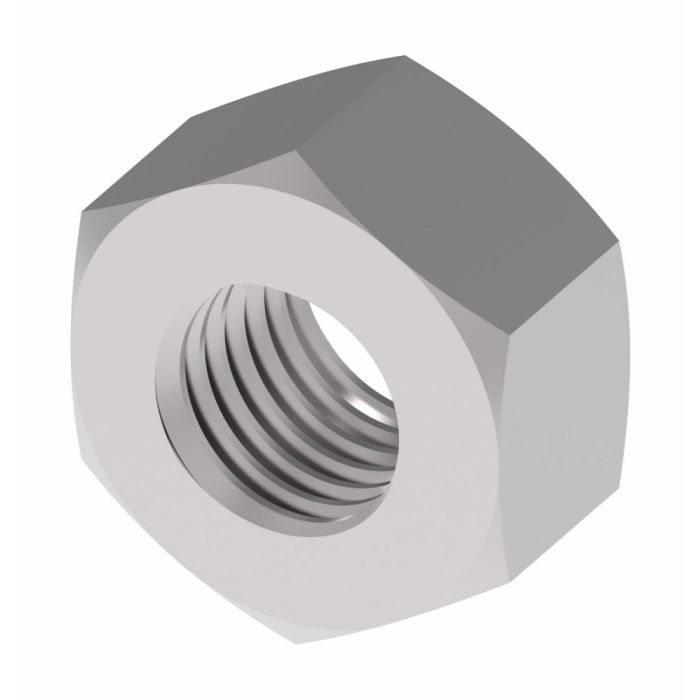

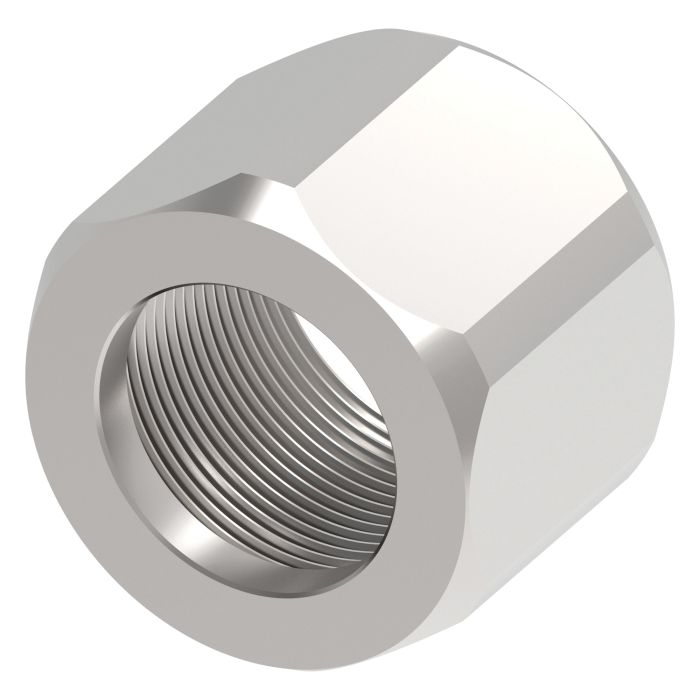

Steel Tube Fitting, JIC 37 deg Flare Nut for 0.38 Inch OD Tube

Description & Features

This steel tube fitting features a JIC 37-degree flare nut designed for a 0.38 inch OD tube. The Eaton Aeroquip 1290 Series spare part Versil-Flare Nut ensures a secure and reliable connection in hydraulic applications.

With dimensions A: 0.72 and B: 0.69, this fitting, catalog number C1AJ80, provides precise and dependable performance. This Steel Tube Fitting offers durability and is suitable for demanding industrial environments.

SKU: 1290-6S

Supplier Part Number (MPN): 1290-6S

Alternate Part Numbers: C1AJ80, MI-00317423, MINO-00015F64632

Specifications

Brand Aeroquip® by Danfoss	Connection Type SAE 37 deg Flared	Dimension Standards SAE 070110/J514	Finish Dura-Kote™	Fitting Type Nut	For Use With 900605 Tube Sleeves	Hex Size 11/16 in	Material Steel	Material Construction Carbon Steel	Series 1290 Series	Thread Size 9/16-18	Tube OD 3/8 in

Similar Products

Model Number	Tube O.D.	A	B
1290-4S Steel JIC Tube Nut	0.25	0.62	0.56
1290-10S Steel JIC Tube Nut	0.63	0.97	1
1290-12S Steel JIC Tube Nut	0.75	1.02	1.25
1290-16S Steel JIC Tube Nut	1	1.12	1.5
1290-8S Steel JIC Tube Nut	0.5	0.84	0.88
1290-20S Steel JIC Tube Nut	1.25	1.22	2
1290-3S Steel JIC Tube Nut	0.19	0.6	0.44
1290-5S Steel JIC Tube Nut	0.31	0.67	0.62

Product Questions & Answers (1)

Question by: Clint R on Aug 10, 2025, 7:05 AM

got a 3/8 OD tube line im redoing, is this the right nut for a JIC 37 flare?

Answer by: Customer Support on Aug 11, 2025, 4:47 PM

For a 0.38 inch outside diameter tube, this part is a JIC 37 degree flare nut in the Aeroquip by Danfoss 1290 series, so it matches that tube size and flare style.
