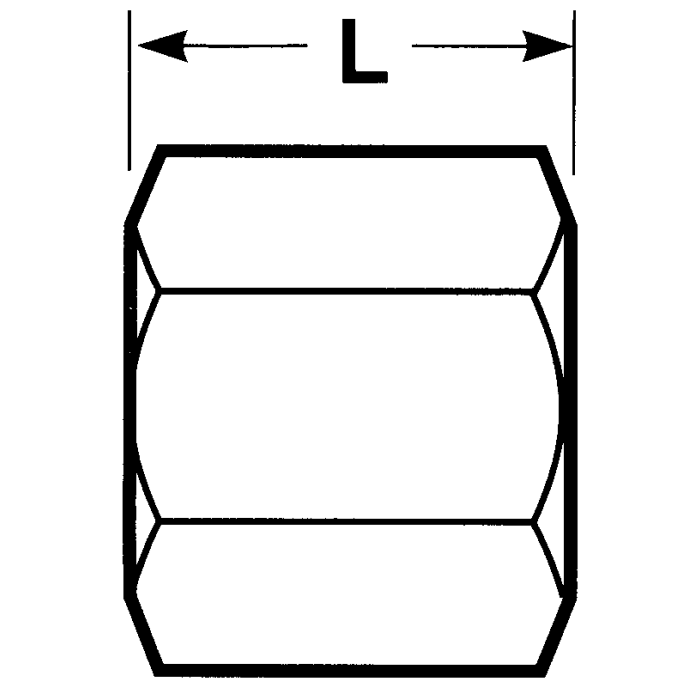

main product photo

Steel Adapter, 0.75 Female JIS 30 deg Flare Cap

Ask A Question

Description & Features

The steel construction of this adapter ensures robust performance in demanding environments. It features a 0.75" tube outer diameter with a 30-degree flare angle, adhering to JIS standards.

Designed for efficient and reliable connections, this ADAPTALL America product stands out in the category of JIS adapters. Precision engineering provides secure attachment and long-lasting durability.

Ideal for integration into industrial systems, this female JIS swivel cap offers dependable sealing capabilities. No thread sealant is required, simplifying installation and maintenance processes.

MPN: 9222-12

Supplier Part Number: 9222-12

Specifications

Brand
adapt-all
Connection Size 1
L12
Connection Type
Female JIS
Connection Type 1
Female JIS
Dimension Standards
JIS B 0202
Dimensions
35.5 mm L
Finish
Zinc-Plated
Fitting Type
Cap
Hex Size
32 mm
Material
Steel
Material Construction
Carbon Steel
Series
9222 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-14
Tube Outside Diameter
3/4 in

Product Questions & Answers (2)

Question by: Shawn H on Jun 8, 2025, 11:34 AM
got a #12 JIS line with a 0.75 tube OD, is this the right cap for it?
Answer by: Customer Support on Jun 9, 2025, 9:38 PM
For a #12 JIS connection that uses 0.75 inch tube outer diameter and a 30 degree JIS flare, this is the matching female JIS swivel cap style.
Question by: Bonnie M on Nov 26, 2025, 4:46 PM
does this cap need any thread sealant when you put it on, or is it good to go as-is?
Answer by: Customer Support on Nov 27, 2025, 8:59 PM
No sealant needed. The 30-degree flare seating on this JIS swivel cap creates its own seal at the connection point, so you can install it without tape or compound. Keeps the job cleaner and cuts down on steps during maintenance.
